Single Piece

Flanged End Ball Valve

Size Range
1/2" to 6" Flanged 150# & 300#
Temperature Range
PTFE : Upto 180°C / PEEK : 250° , RPTFE : Upto 220°C / AIRA250
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

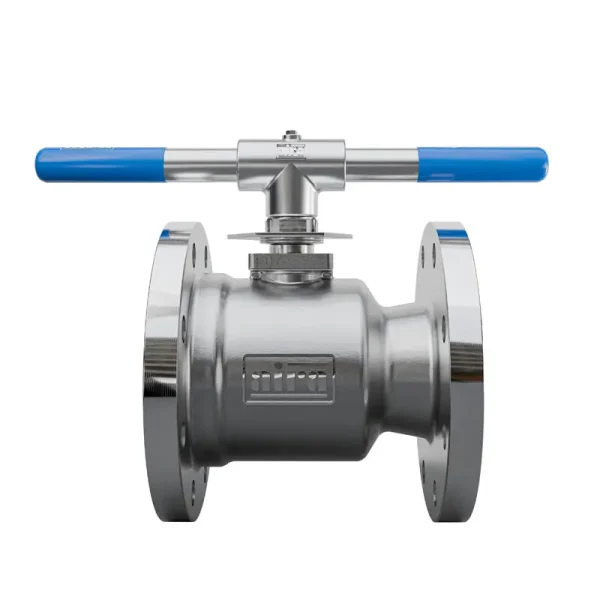

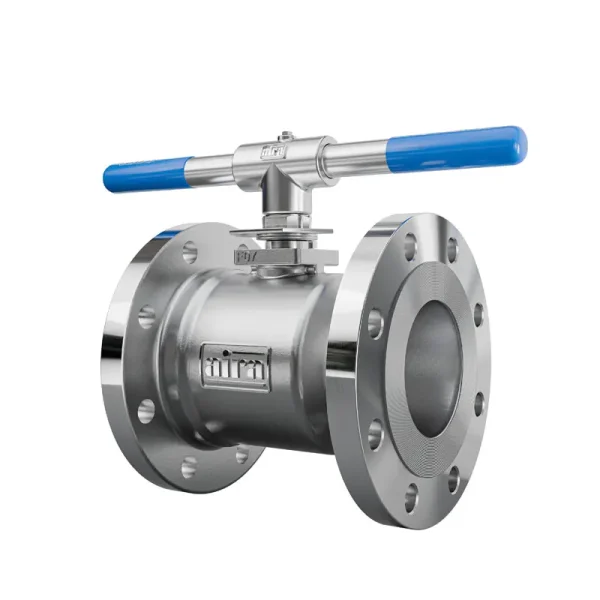

Single Piece Flanged End Ball Valve

Size Range
1/2" to 6" Flanged 150# & 300#
Temperature Range
PTFE : Upto 180°C / PEEK : 250° , RPTFE : Upto 220°C / AIRA250
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

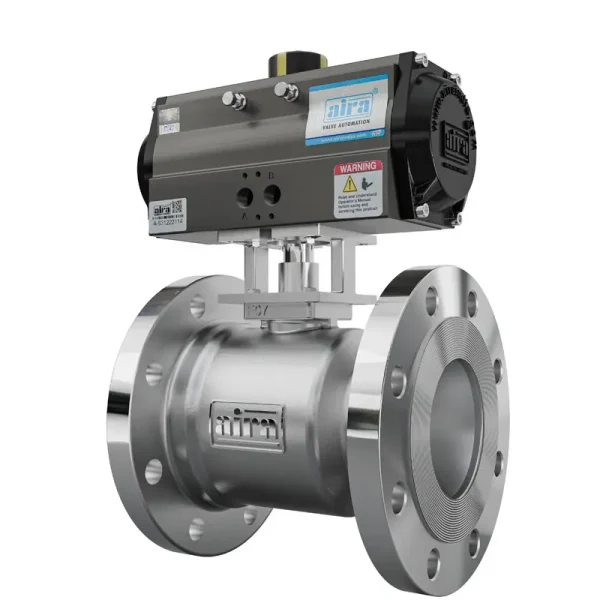

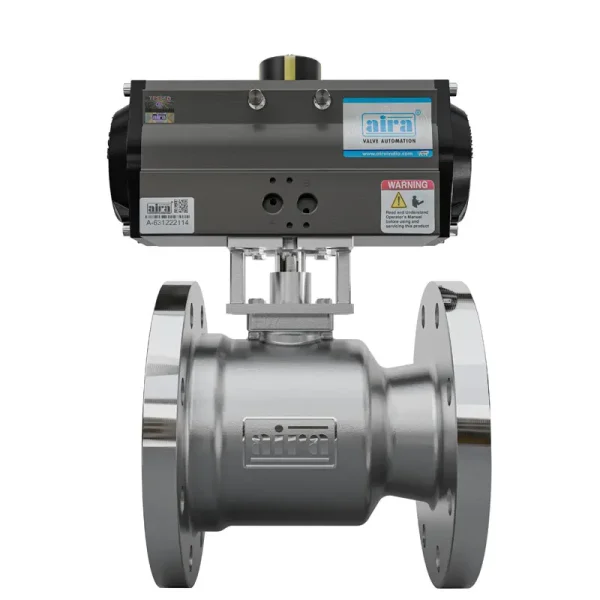

“aira” Offers Automation And Manually Operated Flanged Ball Valves Feature A Compact, One Piece Body Design With Flanged Insert. The One Piece Body Suppliers Maximum Structural Strength While Minimizing The Number Of Potential Leak Paths. A Floating Ball Design Offers Low Torque And Increase Valve Cycle Life. These Rugged, Economical, End-entry Flanged Ball Valves Are The Ideal Solutions From The “aira” Product Line For Industrial Applications.

Specification & Standard

Design & Manufacturer

BS EN ISO 17292 / ASME B 16.34

Valve Face To Face Dimension

ASME B 16.10 - 150# & 300#

Inspection & Testing

API 598 / ISO-5208 / BS EN 12266-1

Tempreature Range

PTFE : Upto 180°C / PEEK : 250° , RPTFE : Upto 220°C / AIRA250

Media

Air / Water / Oil & Gas

Ball Material

CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Flange Drilling

Asme B 16.5 Class 150#/ Din/ Jis

Leakage Class

ISO 5208 Class VI / B16.104 , ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)

End Connection

ASME B 16.5 CLASS 150/300 FOR FLANGE END

Size Range

1/2" to 6" Flanged 150# & 300#

Pressurre Class

150# , 300#

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Type

Hollow & Solid

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Features & Benefits

Low Operating Torque, Positive Shut Off, Quick In Action, Compact Design, Longer Smooth Life, Locking Handle Available, Direct Mounting As Per ISO 5211

Direct Mounting As Per ISO 5211

Single Piece

Flanged End Ball Valve

Dimension Table

Single Piece

Flanged End Ball Valve

Dimension Table
