Wafer Type

Jacketed Ball Valve

Inquiry Now

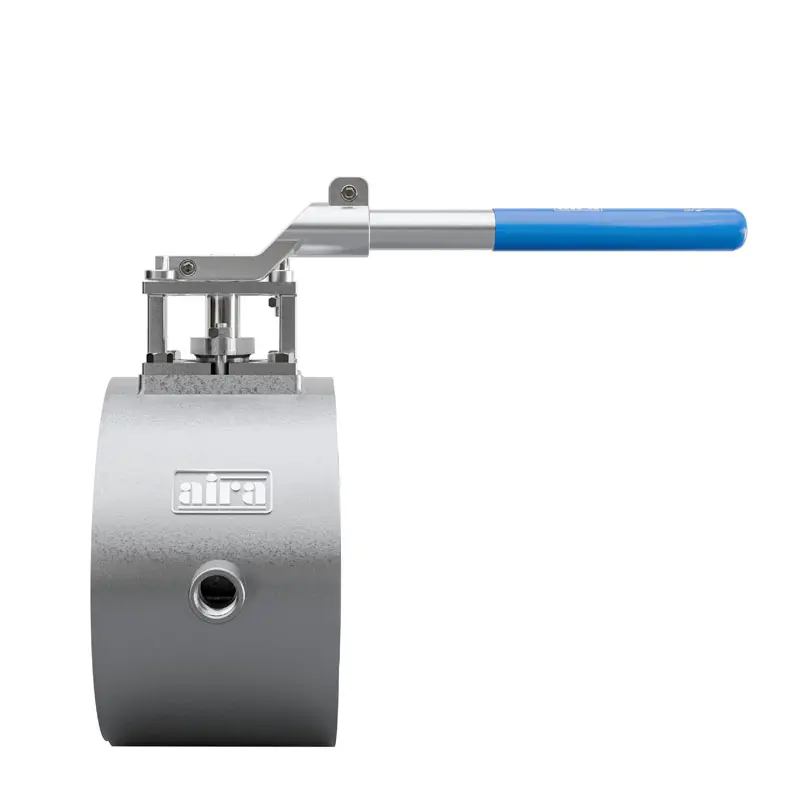

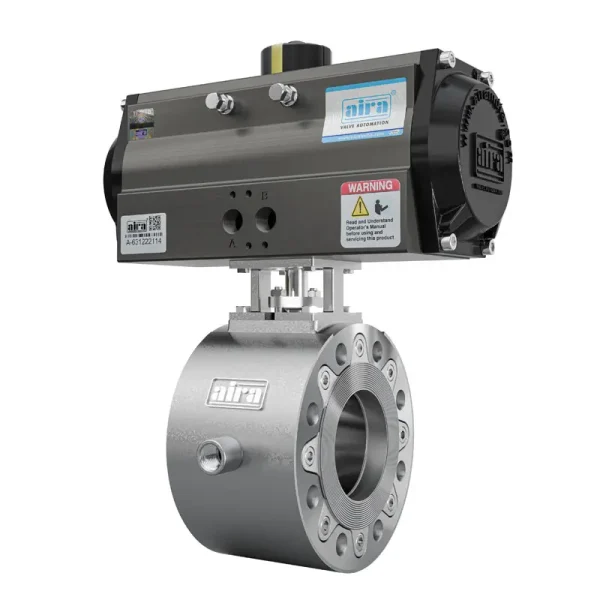

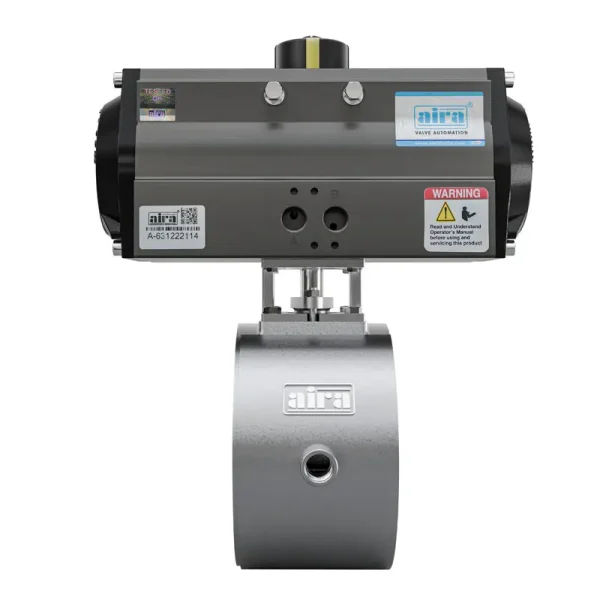

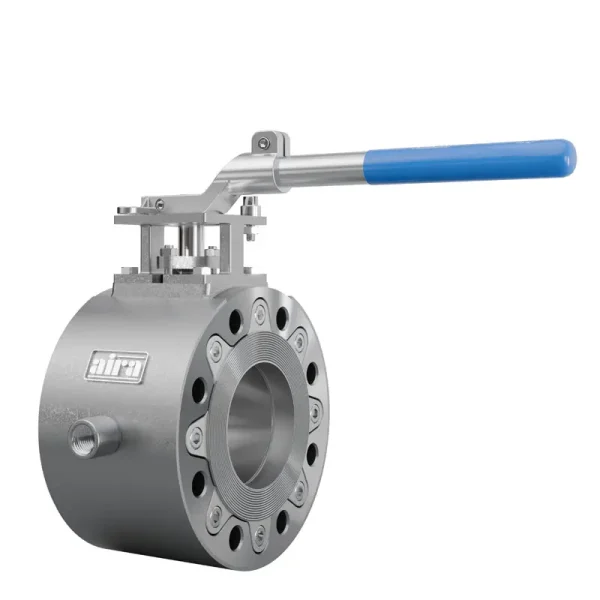

Wafer Type Jacketed Ball Valve

Inquiry Now

Approvals

“aira” Offers Manual & Automation Operated Investment Casting WCB / CF8 / CF8M / CF3M Wafer Type Floating Ball Valve. Wafer Type Ball Valve Application Chemical Product. Food Plants, Distribution Line For Gas, Air, Water.

Specification & Standard

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturer Std.

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266-1

Leakage Class

ISO 5208 CLASS VI/ ANSI FCI 70-2 B16.104

Flange Standard Conformity

ASME B 16.5 150#

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid

Size Range

1" To 4" Wafer Type Jacketed

Tempreature Range

PTFE : UPTO 180°C/ RPTFE : UPTO 220°C/ CFT & GFT 200°C

Pressurre Class

150#

Media

Air/ Water/ Oil & Gas

Body Material

S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Stem Material

AISI 410, SS 304, SS 316, SS 304l, SS 316l, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE , RPTFE , CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Features & Benefits

1- Compact Single Piece Design.

2- Blow Out Proof Stem.

3- ISO 5211 Mounting Pad.

Direct Mounting As Per ISO 5211

Fire Safe Design

Wafer Type

Jacketed Ball Valve

Dimension Table

Wafer Type

Jacketed Ball Valve

Dimension Table

ADDONS

Locking Arragement

Extended Shaft

Deadman
