Wafer Type

Ball Valve

Size Range
1/2" To 4" Wafer Type
Temperature Range
Upto 180°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

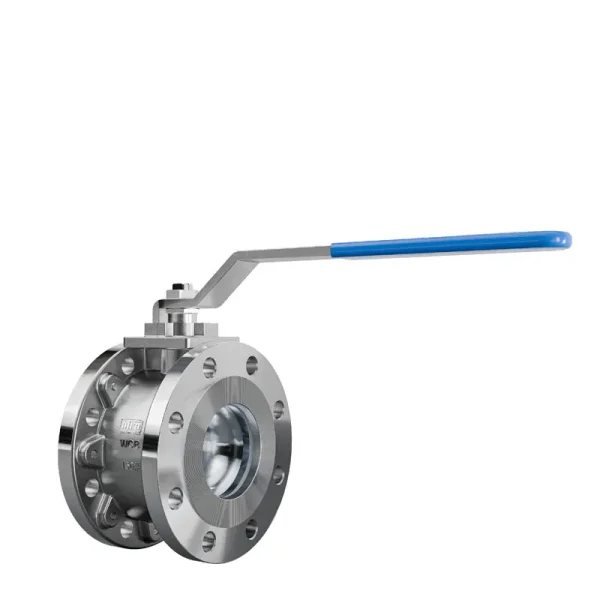

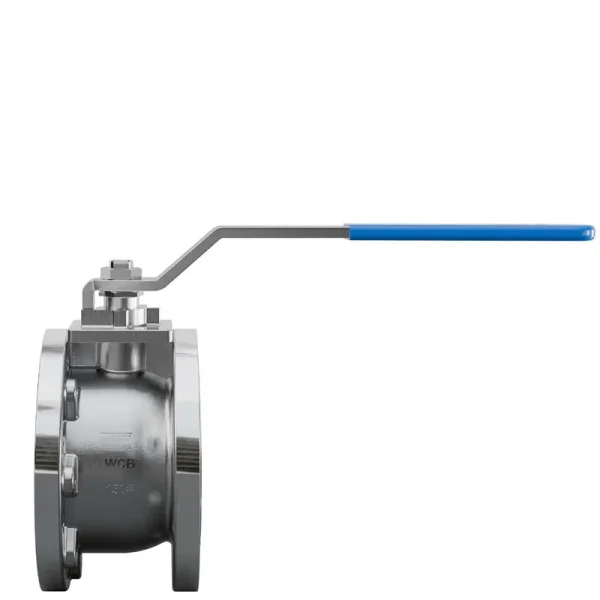

Wafer Type Ball Valve

Size Range
1/2" To 4" Wafer Type
Temperature Range
Upto 180°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

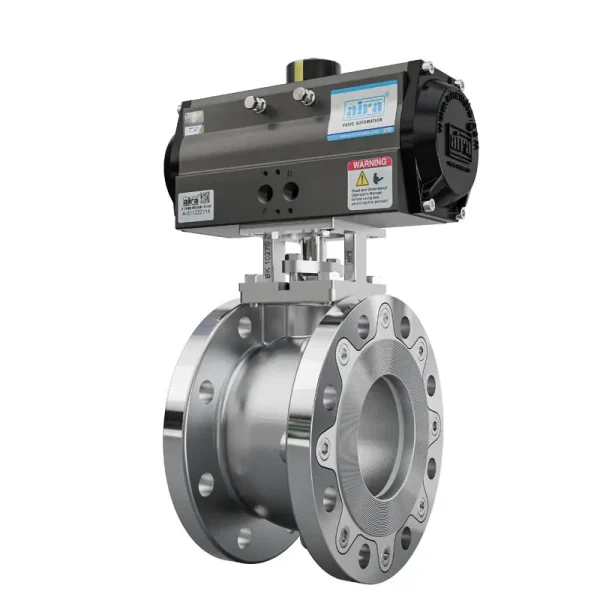

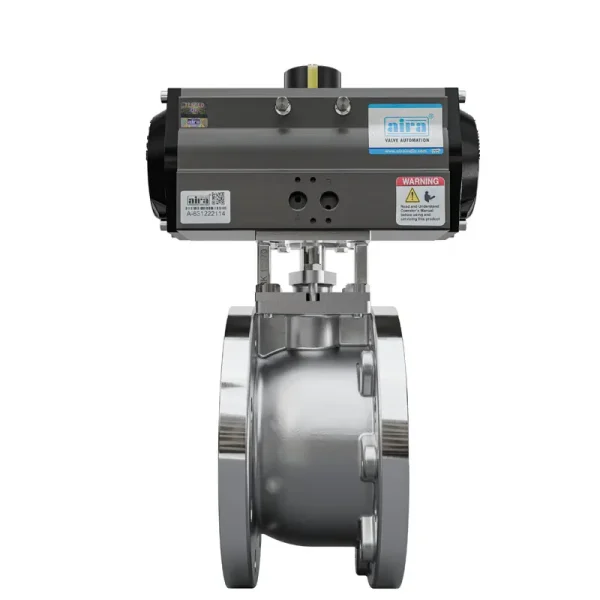

Aira euro is the brand name of manufacturing ball valves and for your convenience, we manufacture a 2 piece design wafer type ball valve with a replaceable seat and CE approved rotary actuator.

We have fully inhouse production and we use WCB / CF8 / CF8M / CF3M casting material for Body, CF8 / CF8M / CF3M material for Balls and PTFE / GFT / CFT / TFM / PEEK material for seats.

We offer it in 1” to 4” inches in size. 180°C temperature is the maximum capacity of this valve and can sustain 10 BAR working pressure. It has Class 150# wafer type Flanged end connections to ASME B 16.5

Specification & Standard

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturer Std.

Flange Standard Conformity

ASME B 16.5 150#

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266-1

Body Material

S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid

Certification

POD, CE, FIRE SAFE

Size Range

1/2" To 4" Wafer Type

Tempreature Range

Upto 180°C

Pressurre Class

150#

Media

Air/ Water/ Oil & Gas

Stem Material

AISI 410, SS 304, SS 316, SS 304l, SS 316l, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Flange Drilling

Asme B 16.5 Class 150#/ 300 #/ Din/ Jis

Features & Benefits

1- Compact Single Piece Design.

2- Blow Out Proof Stem.

3- ISO 5211 Mounting Pad.

Direct Mounting As Per ISO 5211

Fire Safe Design

Wafer Type

Ball Valve

Dimension Table

Wafer Type

Ball Valve

Dimension Table
