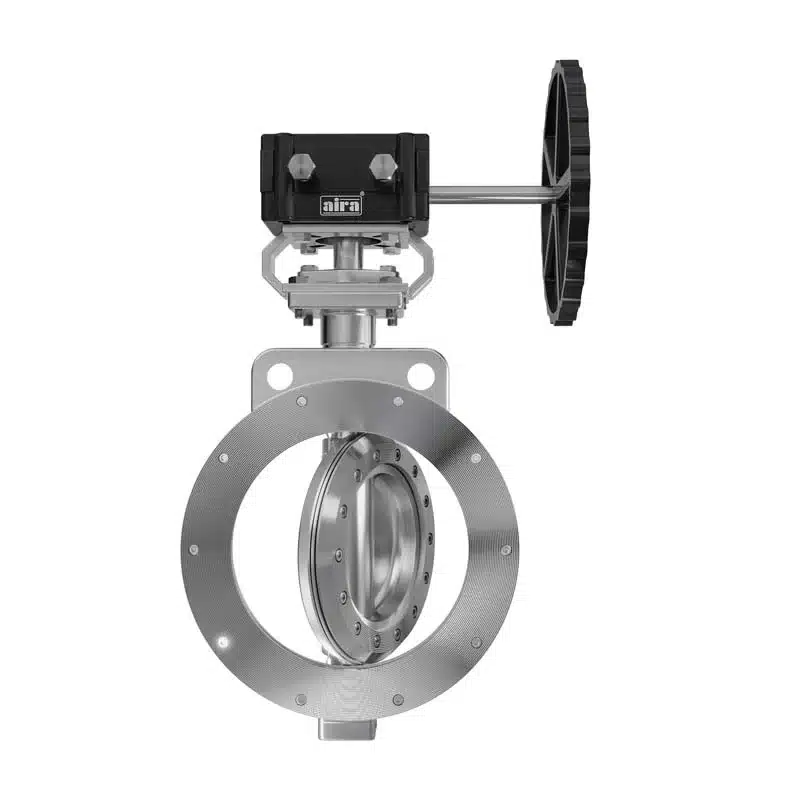

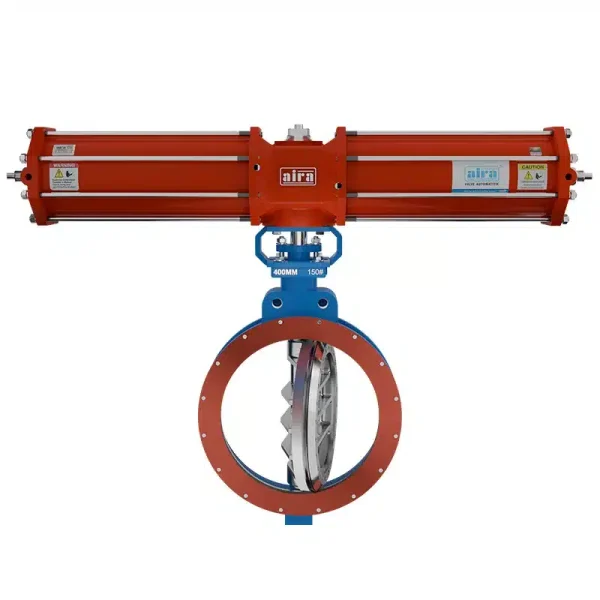

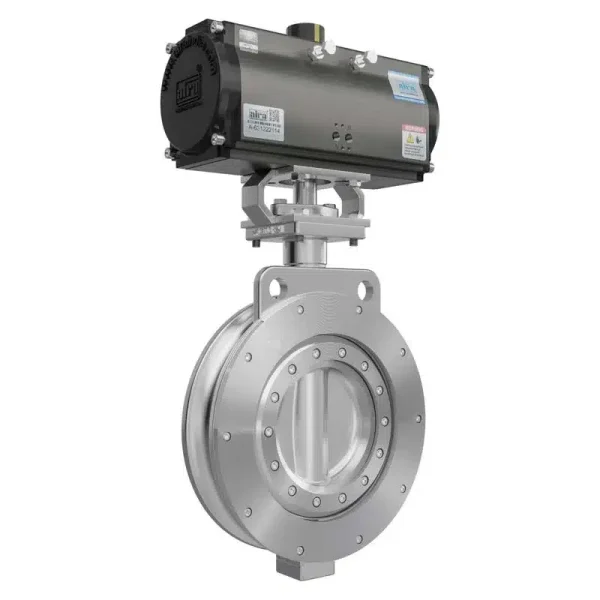

A Triple Offset Wafer Type Butterfly Valve features a three-dimensional offset design that ensures a tight seal and reduces seat wear. This valve provides reliable flow control in high-pressure and high-temperature applications. Its wafer-style design allows for easy installation between flanges, making it ideal for industries like oil and gas, water treatment, and chemical processing.
Approvals



Specification & Standard
Design & Manufacturer
API 609 Category "B"/ BS EN 593
Valve Face To Face Dimension
API 609/ BS EN 558
Flange Standard Conformity
ANSI B16.5, 16.47 150#/ 300#/ 600#
Inspection & Testing
FCI-70-2/ B16,104/ ISO 5208/ BS EN 12266-1
Pressure Temperature Rating
ASME B 16.
Top Mounting
ISO 5211
Stem Square Drive
ISO 5211
Seat Leakage Class
IV/ V/ VI
Top Flange Drilling
ASME B16.5/ 16.47 Class 150.
End Connection
Wafer Type- D/F- AWWA C 504 D/F - IS 13095 - 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40
Size Range
1.1/2" To 48" (Above 48" On Request) (40 MM To 1200 MM)
Tempreature Range
Upto 400°C
Pressure Class
150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40
Media
Water, Oil, Steam, Air, Gas Chemical & Vaccum.
Leakage Class
Class VI As Per ANSI B16.104
Body Material
CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20
Disc Material
CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20
Seat Material
SS 304, SS 304L, SS 316, SS 316L, SS 304 + STALLITE 6, SS 316 + STALLITE 6, SS 316 + STALLITE 21, SS 316 + STALLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A
Inspection & Testing
API 598/ BSEN 12266-1/ AWWA C 504/ AWWA C 516/ IS 13095
Certifiaction
Design Ce Approved, SIL3 Approves
Features & Benefits
The aira Triple Offset Wafer Type Butterfly Valve is designed for precise control and durability in demanding applications.
1 – Triple Offset Design: Provides superior sealing performance and reduces torque requirements, ensuring tight shut-off and longevity.
2 – Wafer Style: Compact and easy to install between flanges, saving space and simplifying maintenance.
3 – High-Quality Materials: Constructed from robust materials to withstand harsh environments and high pressures.
4 – Leak-proof Sealing: Enhanced sealing capability reduces the risk of leakage and enhances operational reliability.
5 – Versatile Applications: Ideal for use in various industries including water treatment, chemical processing, and power generation.
How Triple Offset Butterfly Valves Work?

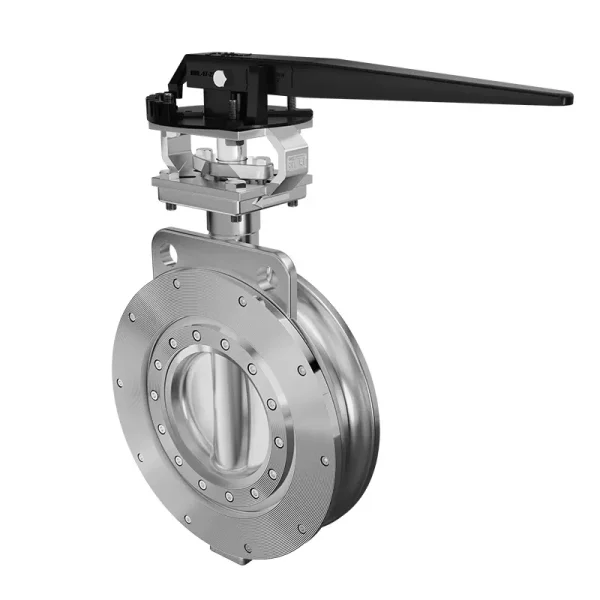

Our Hand lever or Warm Gear operated Triple Offset Butterfly Valve Wafer type fire safe designed metal to metal seated valve useful for throttling and positive isolation applications. Our triple offset butterfly valve is capable of bi-directional flow control, zero leakage, low fugitive emissions. Because of the triple offset sealing system, the disc movement becomes smooth and free of friction at all points along with the specially designed body seat and disc seal.
In the triple offset, the third offset completely eliminates rubbing. When the disc is closed, the seal ring on the disc energizes the seat on the body. For that, we get a sung tight High performance fit.
Materials & Specifications:
Our MGQ model Hand lever or Worm Gear operated triple offset butterfly valve is available with wafer type fire safe design to get the protection from any unexpected major accident at the workplace. We use ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M / CF3M casting materials to make Body & ASTM A 351 Gr. CF8 / CF8M materials for Disc. It is available in soft seated and also in metal to metal that provides zero leakage, As per class VI. This valve is available in 2” to 36” inches in size and can tolerate temperatures up to 550°C and also make for a higher temperature tolerant valve on request. This valve can sustain pressure As per 150# B16.34 and comes up with ASME / ANSI B 16.5 Class 150 End connections.
Tripple Offset
Wafer Type Butterfly Valve
Dimension Table
