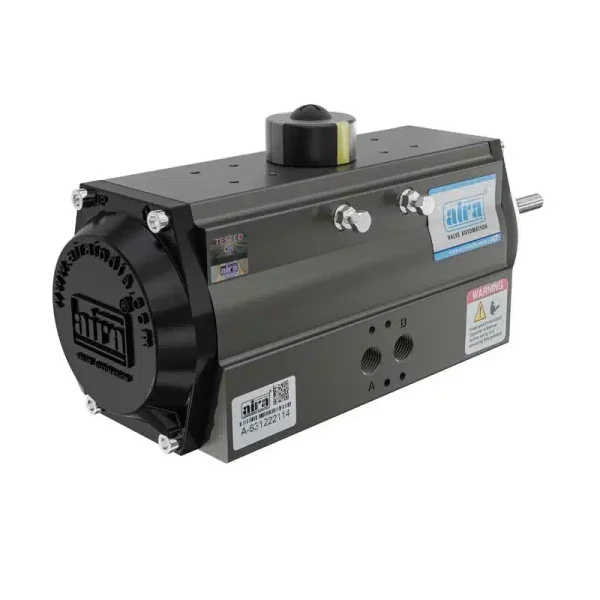

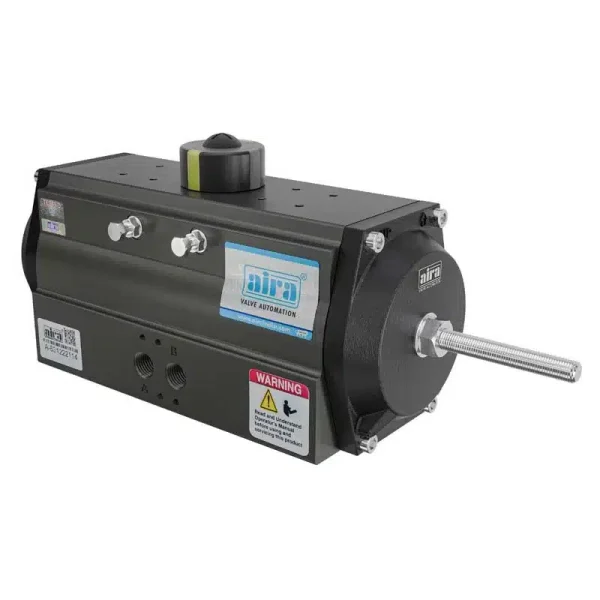

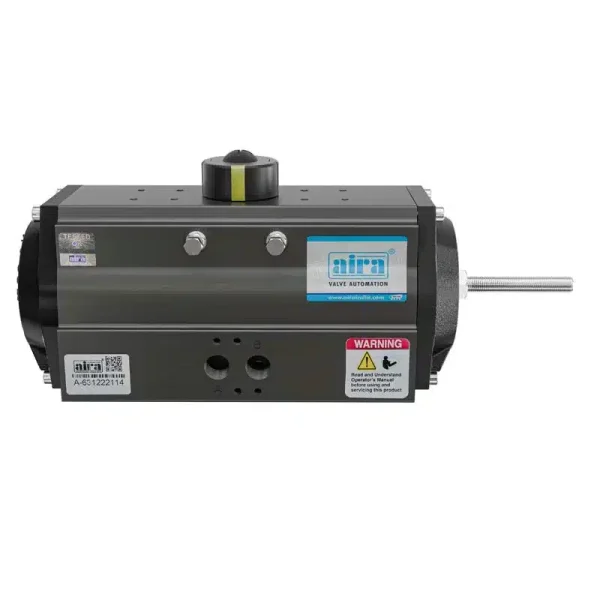

Travel Stopper Pneumatic Actuator

Inquiry Now

Approvals

“aira” Euro Automation offers a wide range of double-acting pneumatic actuators including rack & pinion transmission methods. We use Extruded Aluminium Hard Anodized for the body and Aluminium Pressure Die Cast for caps & rack. While the pinions are made from EN8 and the seals are available in BUNA – N and in Viton. In the making of our products, we use only high-graded quality raw materials. We maintain the international standard and designed it as per ISO 5211. Due to this design, the mounting becomes quick and easy with any valve

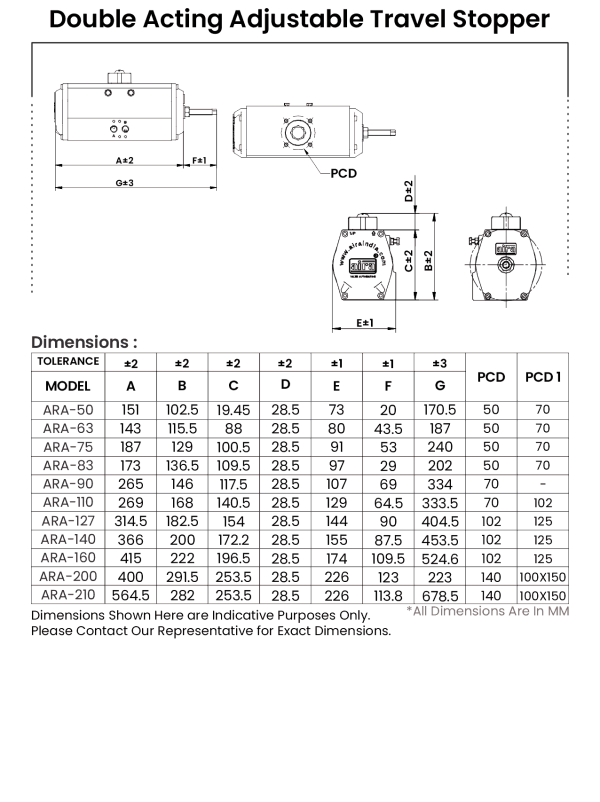

Specification & Standard

Size Range

ARA-50 To ARA-210

Temperature Range

-20°C TO 90°C

Working Pressure

4 To 8 Bar

Method Of Transmission

Double Acting Adjustable Travel Stopper

Actuation

Double Acting

Body

Extruded Aluminium Hard Anodized

Caps And Rack

Aluminium Pressure Die Cast

Rotation

0 To 90° Adjustable

Mounting PCD

ISO 5211 Mounting

Body Material

Aluminium

Piston Material

Aluminium / WCB

Application

Operating For Valve

Features & Benefits

1. Hard Anodized Barrel / Body to Protect from Hazardous atmosphere & corrosion, which enhance life of actuator.

2. Mounting Standard Pinion Top (As Per Namur Standard) The pinion
(shaft) top drilled and slotted for easy assembling of switch, positioners and
other accessories.

3. Adjusting Bolt Adjusting Bolts for 0 – 90° ± 5% Over Travel.

4. ISO – 5211 Standard Mounting for Valve (An International Standard) Double bottom drilling for actuator to valve Assembling & centering. Designed for strength and easy mounting or interchangeability

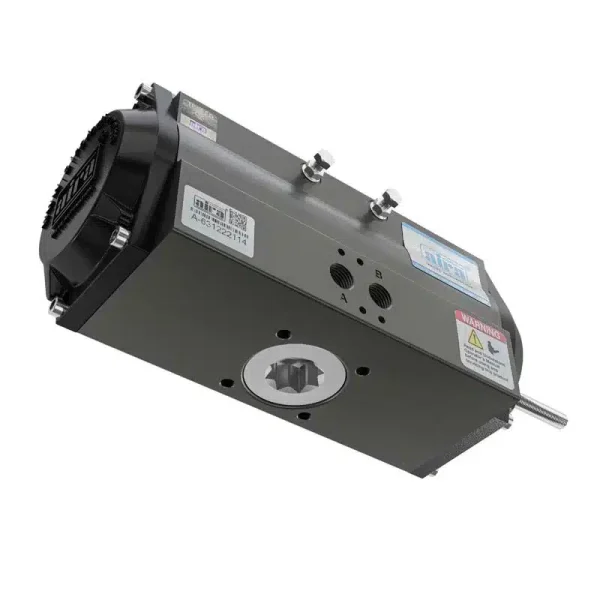

5. ISO – 5211 Standard Pinion Bottom (An International Standard) Bottom of the pinion (Shaft) as female key, double square-hole for assembling on valves with square key stem and in line or turned to 45O. Designed for strength and sure-fix with stem.

6. Sliding Skates The innovation for replaceable sliding skates, between Pistons (Racks) and internal bore surface of the Actuator, just to avoid metal contact, which enhances the Actuator life.

7. Compact Design “aira” Actuators are designed as compact double acting which offers high torque values. Internal sliding surface, machined and anodized for minimum friction and long life of actuator
