Approvals
Specification & Standard
Type
Mechanical Switch X 2, Proximity Sensors P&F Other Make
Switch
Honeywell, P & F, Other On Request
Type
1 NO + 1N C (Other On Request)
Switch Rating
AC 250V 3A, 125V 5A | DC 250V 0.2A, 125V 0.4A, 30V 4A
Enclosure Protection
IP 67
Ambient Temp.
-20°C ~ 80°C
Conduit Entry
NPT 1/2" (Other Option Available On Request)
Terminal
8 Points
Mounting Bracket
NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available On Request)
Material
Aluminium / Stainless Steel 304 (Stainless Steel 316 On Request)
Features & Benefits
1 – Visual Position Indicator.
2 – 6 Contacts of Terminal Ports.
3 – Compatibility with any Rotary Motion Actuator ISO 5211.
4 – Easy Adjustment of Cam Position.
5 – Dual 1/2″ Conduit Entries.

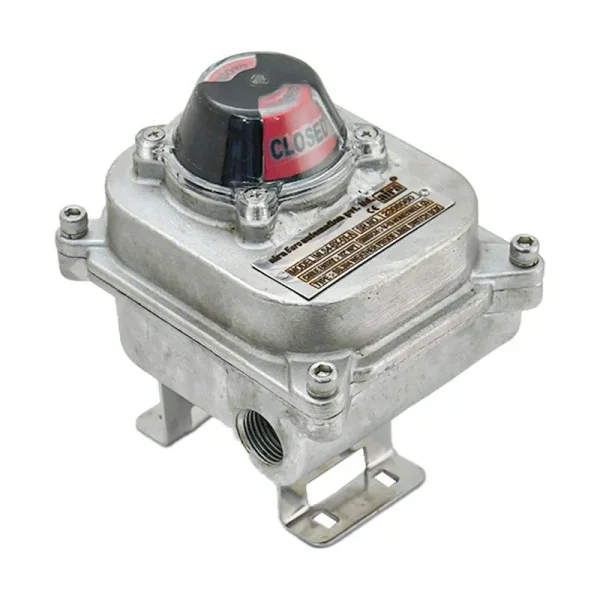

Stainless Steel
Limit Switch Box
Dimension Table
Stainless Steel
Limit Switch Box
Dimension Table
