Approvals
Specification & Standard
Type
Mechanical Switch X 2, Proximity Sensors P&F Other Make
Switch
Honeywell, P & F, Other On Request
Type
1 NO + 1N C (Other On Request)
Switch Rating
AC 250V 3A, 125V 5A, 10A & 16A | DC 250V 0.2A, 125V 0.4A, 30V 4A
Enclosure Protection
IP 67
Ambient Temp.
-20°C ~ 80°C
Conduit Entry
NPT 3/4" (Other Option Available On Request)
Terminal
8 Points
Mounting Bracket
NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available On Request)
Material
Aluminium / Stainless Steel 304 (Stainless Steel 316 On Request)
Features & Benefits
1 – Easy to Set Colour Coded Cam.
2 – All Fasteners in Stainless Steel.
3 – Water, Rain Proof To IP 67.
4 – Additional Mounting Hole Threaded.
5 – CMRI, PESO CCOE Certified.

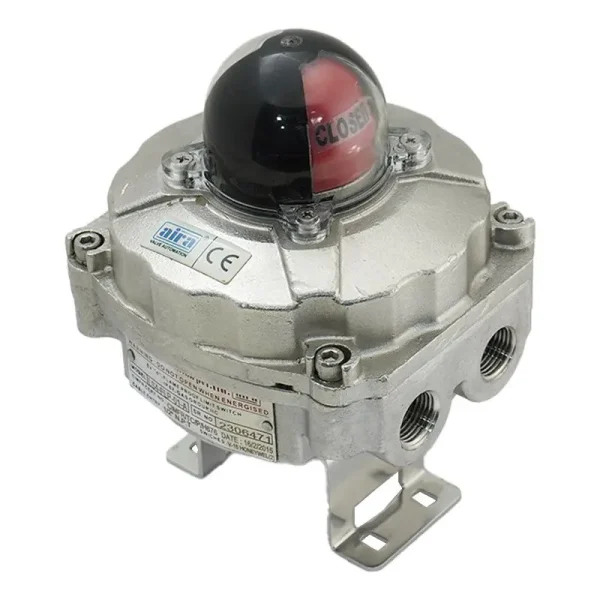

Stainless Steel
Flame Proof Limit Switch Box
Dimension Table
Stainless Steel
Flame Proof Limit Switch Box
Dimension Table
