Single Piece

Screwed End Ball Valve

Size Range
1/4" To 2" Screwed 150#
Temperature Range
PTFE : Upto 180°C / RPTFE / TFM : 220°
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

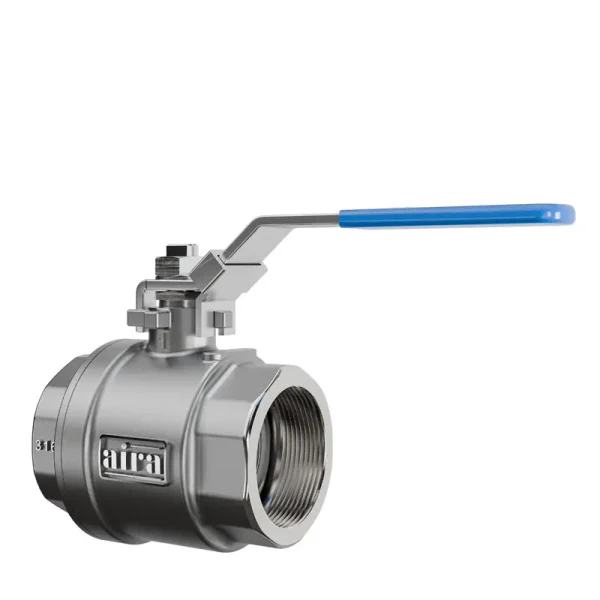

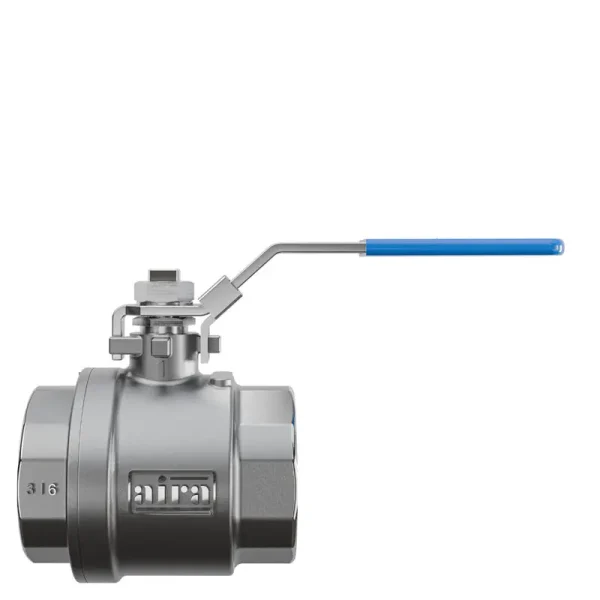

Single Piece Screwed End Ball Valve

Size Range
1/4" To 2" Screwed 150#
Temperature Range
PTFE : Upto 180°C / RPTFE / TFM : 220°
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

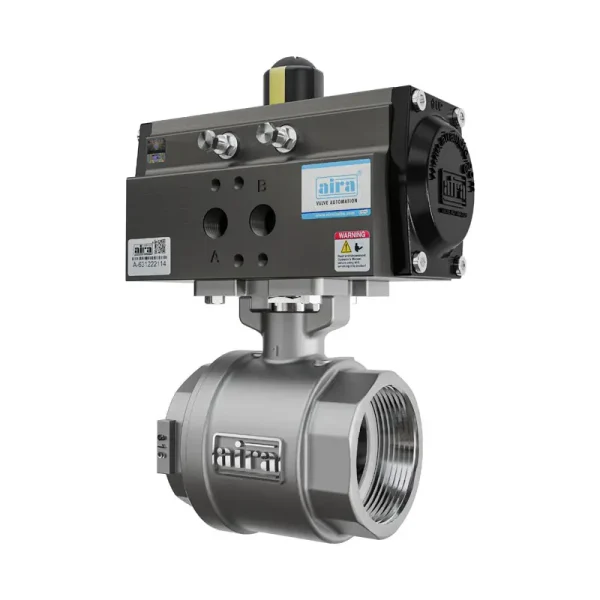

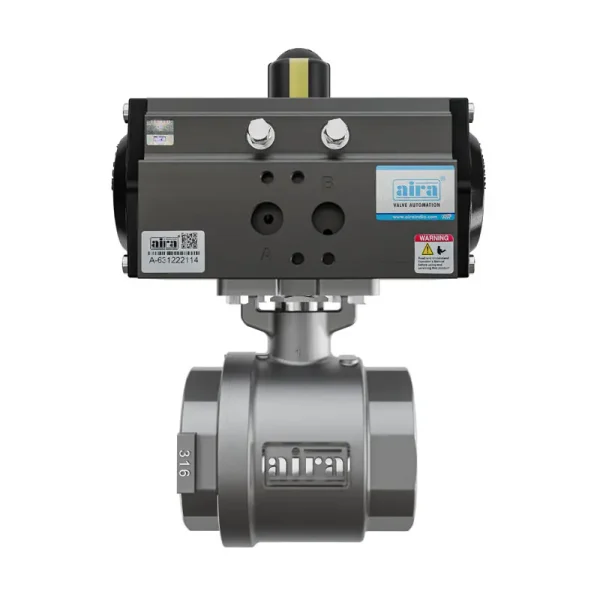

“aira” Offers Automation And Manually Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating In Single Piece Design. Engineered For Multiple On/off Operations In The Down Stream

Specification & Standard

Design & Manufacturer

ASME B 16.34 / BS EN ISO 17292

Valve Face To Face Dimension

ASME B 16.10 / BSEN ISO 17292

Inspection & Testing

API 598 / ISO-5208 / BS EN 12266-1

Size Range

1/4" To 2" Screwed 150#

Media

Air / Water / Oil & Gas

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Leakage Class

ISO 5208 Class VI / FCI - 70 - 2 / ASME B 16, 16. 104 (BUBBLE TIGHT SHUTOFF)

End Connection

ISO 7-1 FOR BSPT / BSP / ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD

Tempreature Range

-30' C To 250' For Soft Seated Valves. Contact Works For Special Requierment

Pressurre Class

150#

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Type

Hollow & Solid

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Features & Benefits

Low Operating Torque, One Body Joint Has Less Chance Of Joint Leak, Able To Take Apart For Maintenance, Locking Handle Available, Direct Mounting As Per ISO 5211

Direct Mounting As Per ISO 5211

Single Piece

Screwed End Ball Valve

Dimension Table

Single Piece

Screwed End Ball Valve

Dimension Table
