Single Piece

Jacketed Flanged End Ball Valve

Size Range
1/2" To 12" Flanged
Temperature Range
PTFE : Upto 200°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

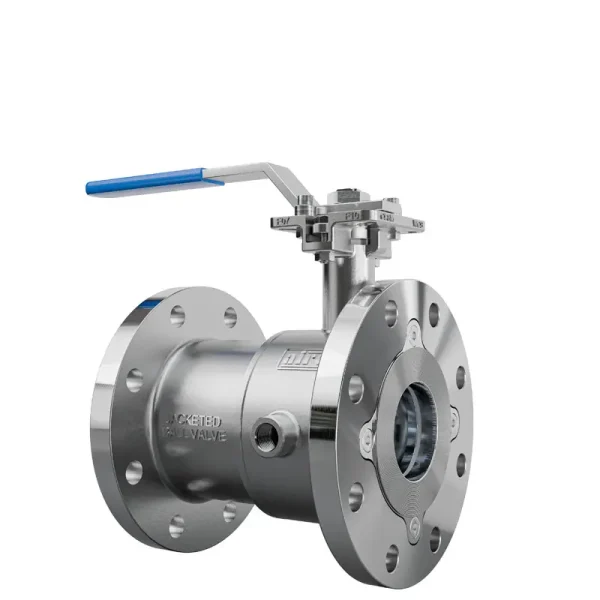

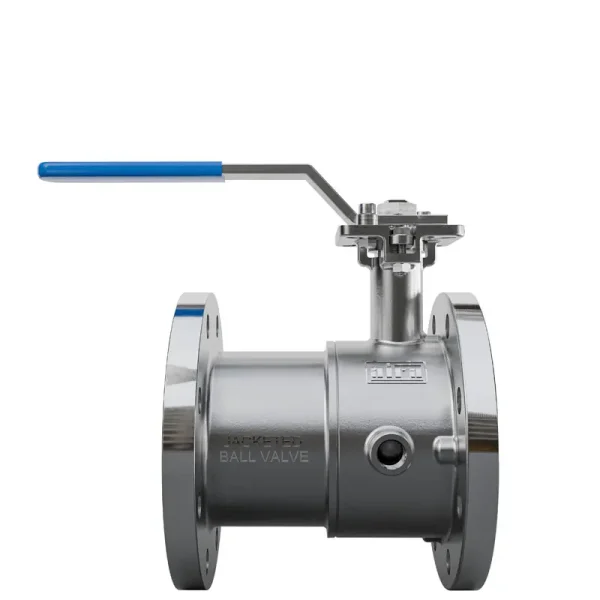

Single Piece Jacketed Flanged End Ball Valve

Size Range
1/2" To 12" Flanged
Temperature Range
PTFE : Upto 200°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

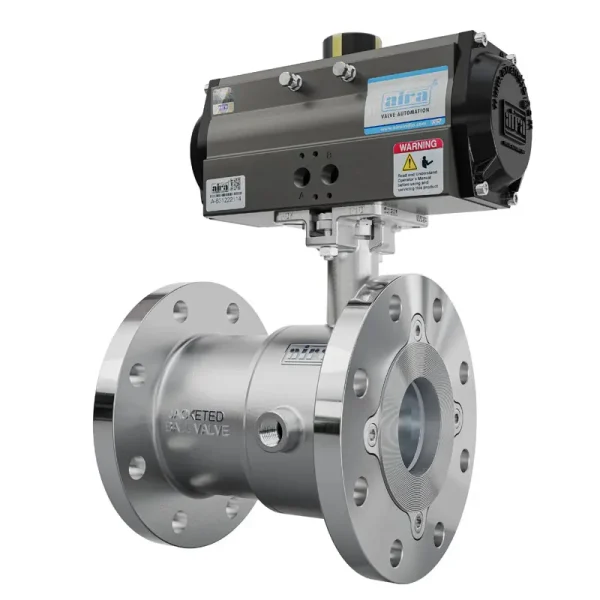

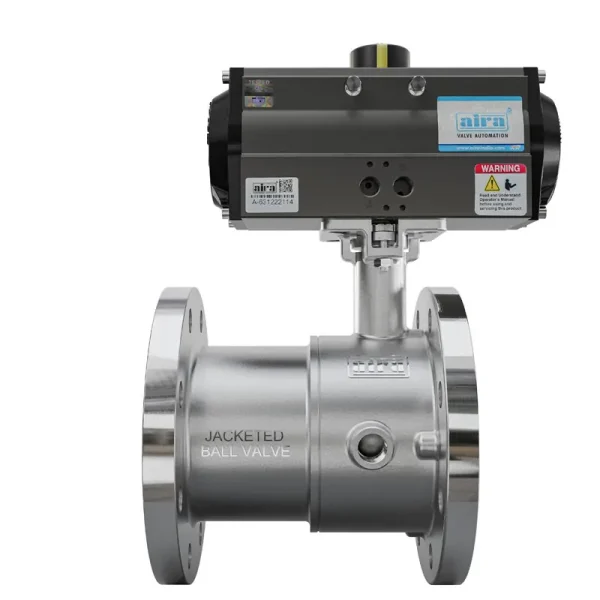

“aira” Offers Manual & Automation Operated Single Piece Design Full Bore Jacketed Floating Ball Valve. Jacketed Construction For Standard Bore Valves. The Jacketed Comes In Single Piece Construction Welded Together. The Jackets Of The Valves Can Be Rated For Heat Transfer Media Pressure Upto 10 Kg/cm². The Valve Can Be Used Sanitary Application Jacketed Ball Valves. Jacketed Ball Valve Designed For Using In The Several Condition Such As Applications Filter Dryer, Vaccum Dryer, Stirrer Vessel, Rector Other Vessel, Chemical, Pharmaceutical, Food, Cosmetic, Fluids, Emulsion, Syrup, Paints, Chocolate Etc…

Specification & Standard

Size Range

1/2" To 12" Flanged

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Pressurre Class

150# ,300#

Media

Air/ Water/ Oil & Gas

Body Material

CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Material

CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Stem Material

Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Flange Drilling

Asme B 16.5 Class 150#/ Din/ Jis

Certification

Design Ce Approved , Sil3 Approved , Ibr , Pod , Api 6d , Api 607

Note

Peek Seat Is Not Possible

Features & Benefits

An ISO 5211 Direct Mounting Pad, V-type Cheuron Gland Packing, Which Leads To Leak After Thousands Of Cycle, Low Torque.

Direct Mounting As Per ISO 5211

Single Piece

Jacketed Flanged End Ball Valve

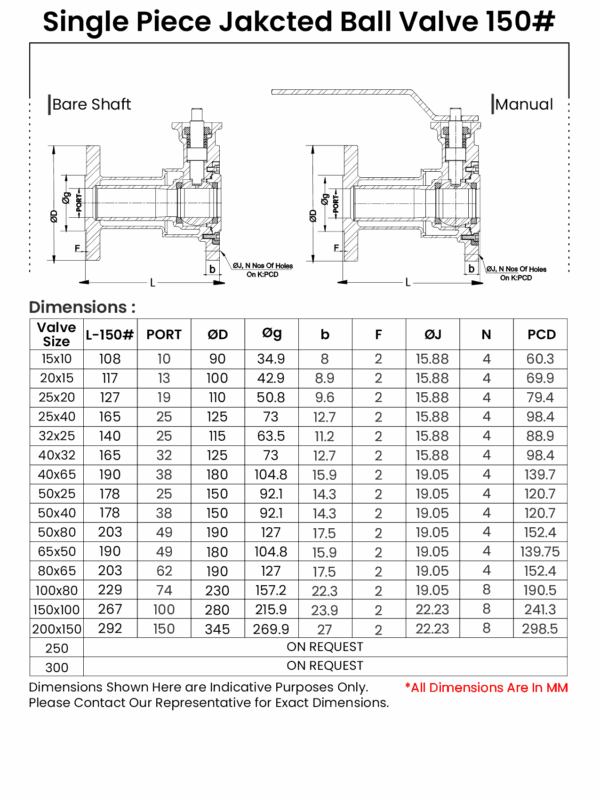

Dimension Table

Single Piece

Jacketed Flanged End Ball Valve

Dimension Table
