“aira” Offers The SYS Series has been equipped with a universal drive shaft which suit both DIN and ISO Standards. This even future facilitates mounting and installation. Low friction sealings in combination with a high surface finish, permanent lubrication and bearings give the actuator high efficiency, low air consumption and a long maintenance – free life, This ensure a long – term stable economy due to low energy consumption and a minimum of unplanned and costly production shutdowns. Aggressive environments and complicated application sometimes require specially adapted solution.
Specification & Standard
Temperature Range
-20°C To 90°C
Pressure Class
35 To 150 PSI
Body Material
Aluminium Alloy - 6061-T6
Seals Material
Nitrille
Bolts Material
Stainless Steel
Air Supply
Filtered, Dry or Lubricated
Features & Benefits
1. For On-Off and modulating.
2. Compact design.
3. Connections according to international standards.
4. Double acting or single acting with spring return.
5. Scotch Yoke principle gives high torque in the end positions.
6. 30% pre-tensioned springs to storage power for safety.
7. Mounting kits for all types of quarter turn valves.
8. Housing in anodized aluminum.
9. Precise control, smooth travel in the end positions
10. Housing in anodized aluminum.
11. Precise control, smooth travel in the end positions.
12. High reliability, long life.
13. High efficiency, low air consumption.
14. Temperature range -20°C to +90°C.
15. 5,00,000 Cycles POD.
5,00,000 Cycles POD

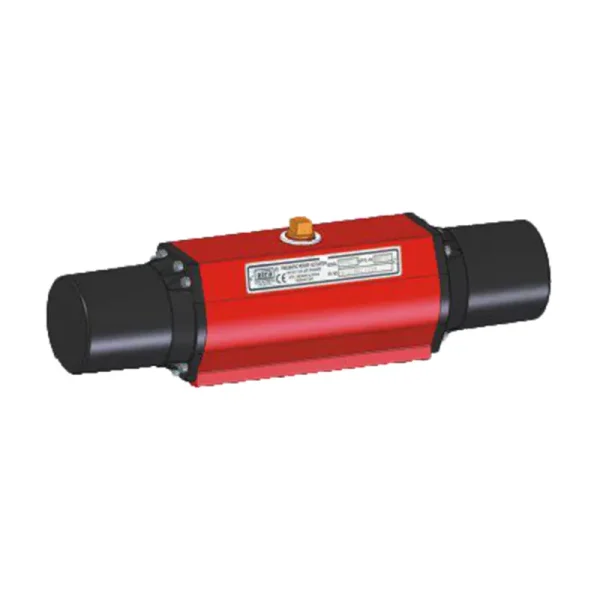

Single Acting
Scotch Yoke Aluminium Actuator
Dimension Table
Single Acting
Scotch Yoke Aluminium Actuator
Dimension Table
