Semi Pilot

Diaphragm Operated Pressure Reducing Valve Screwed

Inquiry Now

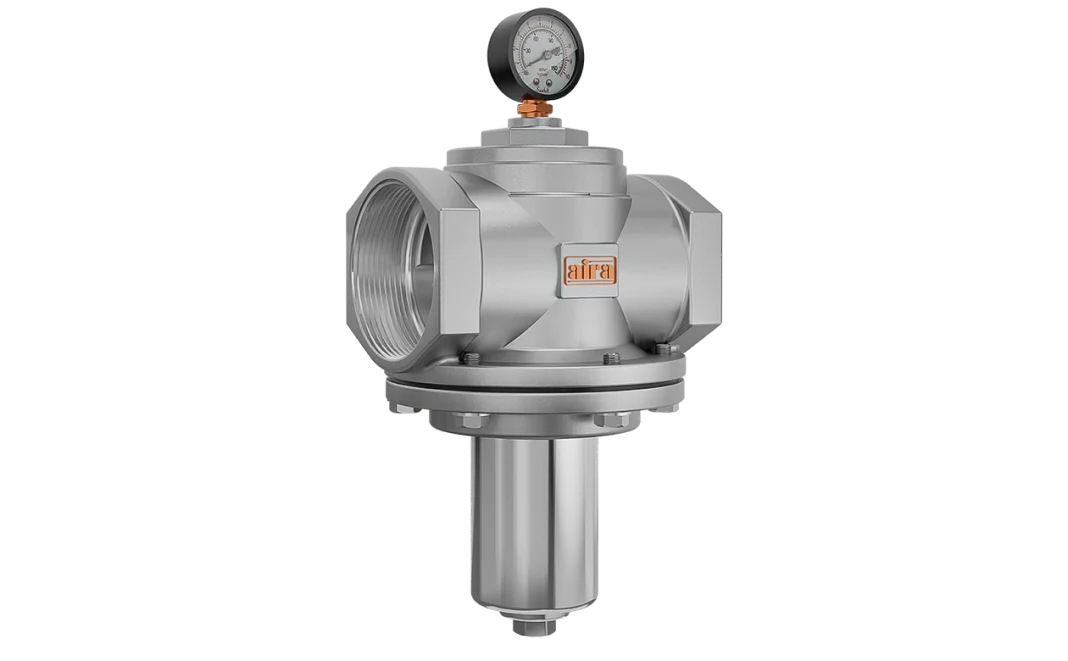

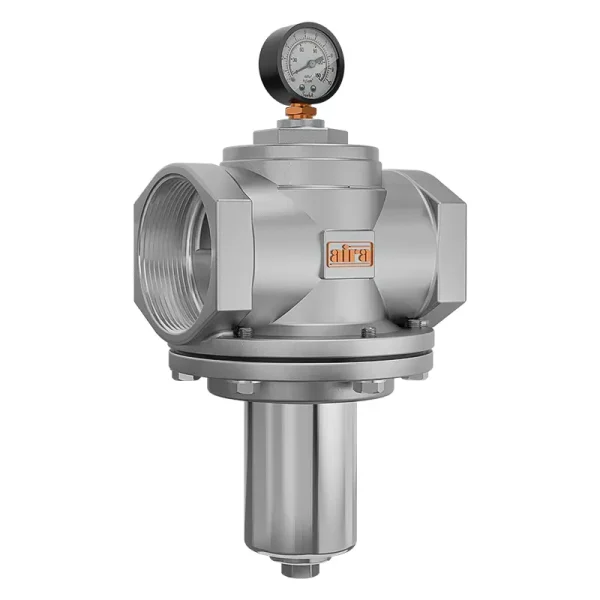

Semi Pilot Diaphragm Operated Pressure Reducing Valve Screwed

Inquiry Now

Approvals

“aira” Semi Pilot Diaphragm Operated Pressure Reducing Valve is designed for precise pressure regulation in fluid systems. Its diaphragm mechanism ensures stable performance, effectively managing downstream pressure regardless of fluctuations in the inlet pressure. Built for durability, this valve is ideal for various applications, including water supply, HVAC, and industrial processes. With easy installation and maintenance, it provides reliable operation and enhanced safety in pressure-sensitive environments.

Specification & Standard

Size Range

15MM To 65MM

Temperature Range

Upto 85°C

Max. Inlet Pressure

Upto 12 kg/cm²

Pressure Adjusting Range

1 ~ 6 kg/cm² & 4 ~ 10 kg/cm²

Body Style

Globe Type

Body Materials

CF8 / CF8M

Piston Materials

CF8 / CF8M

Seat Materials

NBR

Design Standard

Manufacture - Standard

Testing Standard

Manufacture - Standard

Face To Face

Manufacture - Standard

Applications

Water & Gas

End Connection

Screwed End

Features & Benefits

1 – Precision Control: Offers accurate and stable pressure regulation, ensuring consistent performance in varying flow conditions.

2 – Diaphragm Mechanism: Utilizes a responsive diaphragm design for reliable operation, minimizing the risk of fluctuations and maintaining set pressure levels.

3 – Durable Construction: Made from high-quality materials to withstand harsh conditions, ensuring long-lasting performance and resistance to corrosion.

4 – Wide Application Range: Suitable for a variety of industries, including water supply, HVAC, and industrial processes, providing versatility in use.

5 – Easy Installation: Designed for straightforward installation, allowing for quick setup and reduced downtime.

6 – Low Maintenance: Requires minimal maintenance, saving time and costs while ensuring reliable operation.

7 – Safety Features: Equipped with safety mechanisms to prevent overpressure and protect downstream equipment.

8 – Adjustable Set Pressure: Allows for easy adjustment of output pressure to meet specific system requirements.

9 – Compact Design: Space-efficient design makes it suitable for installation in tight spaces.

10 – Temperature and Pressure Resilience: Capable of operating effectively across a wide range of temperatures and pressures, ensuring versatility in demanding environments.
