Rack And Pinion Aluminum

Single Acting Pneumatic Actuator

Features & Benefits

1 – Hard Anodized Barrel/ Body to Protect from Hazardous atmosphere & corrosion, which enhance life of actuator.

2 – Mounting Standard Pinion Top (As Per Namur Standard) The pinion (shaft) top drilled and slotted for easy assembling of switch, positioners and other accessories.

3 – Adjusting Bolt Adjusting Bolts for 0° – 90° ± 5% Over Travel.

4 – ISO – 5211 Standard Mounting for Valve (An International Standard) Double bottom driling for actuator to valve Assembling & centering. Designed for strength and easy mounting or interchangeability.

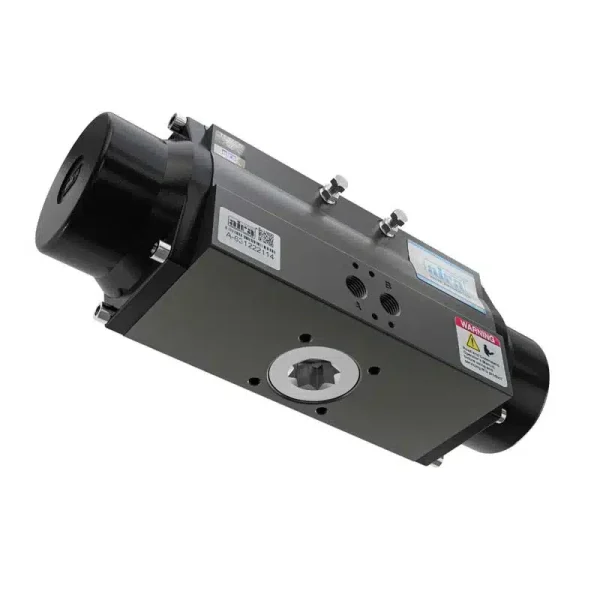

5 – ISO – 5211 Standard Pinion Bottom (An International Standard) Bottom of the pinion (Shaft) as female key, double square-hole for assembling on valves with square key stem and in line or turned to 45°. Designed for strength and sure-fix with stem.

6 – Sliding Skates The innovation for replaceable sliding skates, between Pistons (Racks) and internal bore surface of the Actuator, just to avoid metal contact, which enhances the Actuator life.

7 – Compact Design “aira” Actuators are designed as compact double acting which offers high torque values. Internal sliding surface, machined and anodized for minimum friction and long life of actuator.

Single Acting Pneumatic Actuator Materials

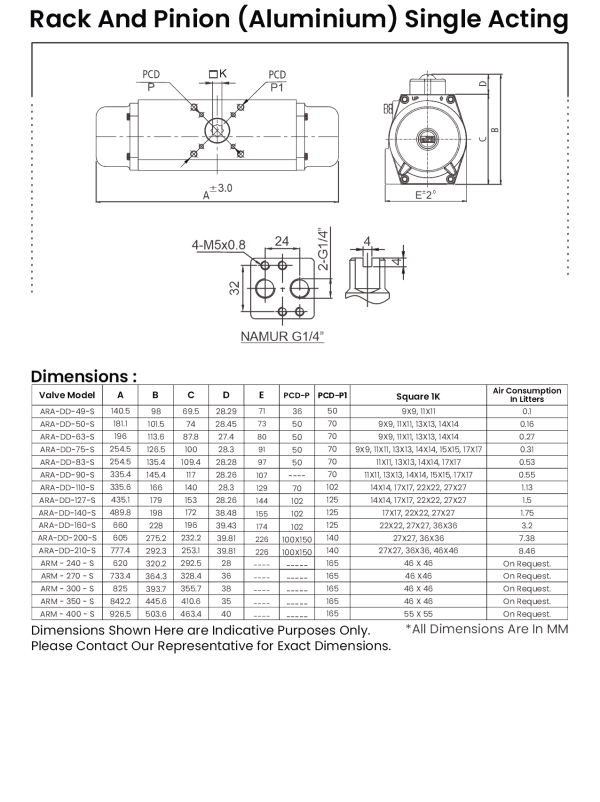

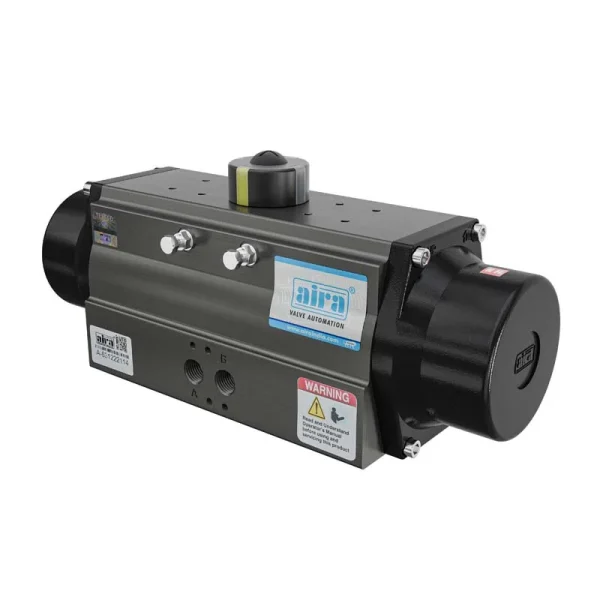

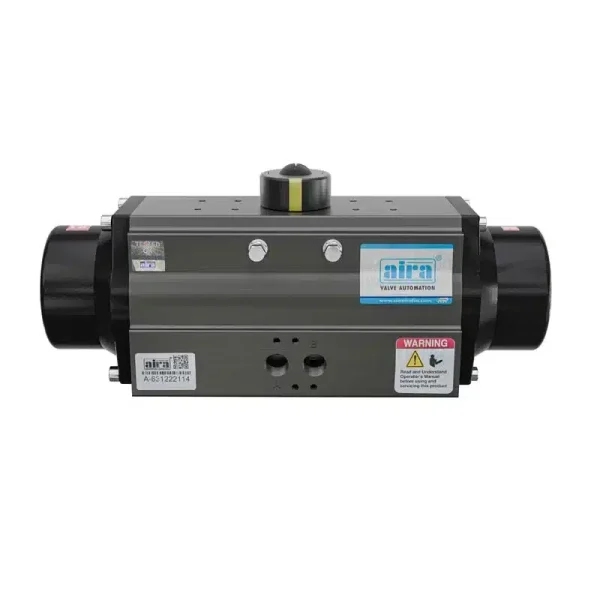

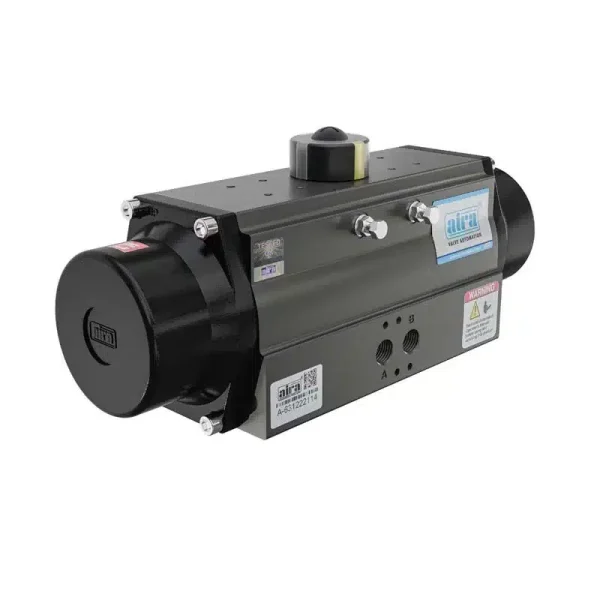

Aira Euro Automation manufacturer and exporter of Single Acting Pneumatic Actuator. It works on the Rack and Pinion Type transmission method. This single acting pneumatic actuator’s Body is made from Extruded Aluminium Hard Anodized, and Caps and Rack made from Aluminium Pressure Die Cast. We used EN 8 for Pinion and BUNA – N / VITON for Seals. This single acting actuator designed as per ISO 5211 for that actuator keeps mounting quickly and easily. The normal Air supply pressure for this actuator is 4Kg/cm2 and the maximum Air supply pressure is 7Kg/cm2. It is available in 90°/ 180° rotation with up to 6356NM torque.

Mechanism

This single acting pneumatic rotary actuator has one central skewed shaft (Pinion) and two spring connected pistons with skew ends (Rack). When pressurized air enters in an actuator, the pistons move away from the central shaft, and the shaft gets rotational movement because shaft skews (Pinion) & piston skews (Rack) are connected. When the flow of pressurized air, the springs on the other side of the shaft send back pistons to their original position, and this time also Pinion gets rotational movement because of Racks.

In this one cycle of pistons’ movement, the shaft gets two rotational movements in only a one-time entrance of pneumatic air. So it is called a single-acting pneumatic rotary actuator.

Where to Use a Single Acting Pneumatic Actuator?

This single acting pneumatic actuator provides rotary motion and this product is available for 90° or 180° rotation. So it is useful to operate valves, automatic manufacturing, clamping work, etc. These pneumatic actuators are allowing hands-free operation so there is no requirement for the manual operator and work smoothly even in a hazardous environment. This is also useful for flammable conditions as it provides a spark-free action.

We are SIL 3, ATEX, ERAD, and CE approved Single Acting Pneumatic Rotary Actuator manufacturer and exporter in India. We export our products to 30+ countries around the world including European Countries, African Countries, Gulf Countries, Asian Countries, and many other Indian ocean Countries.
