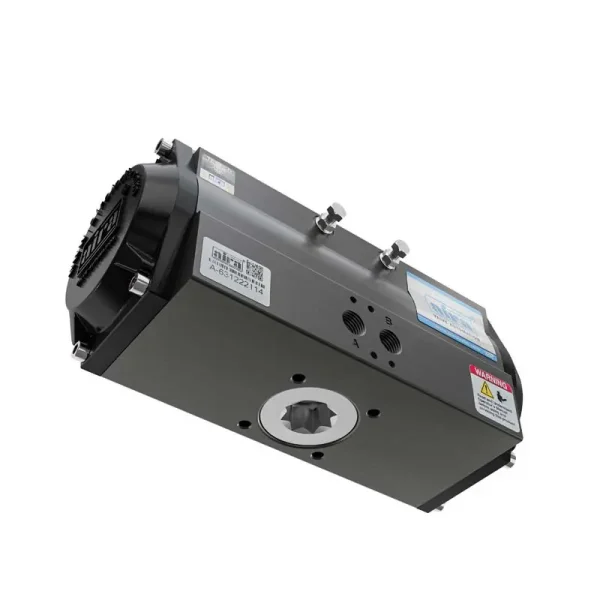

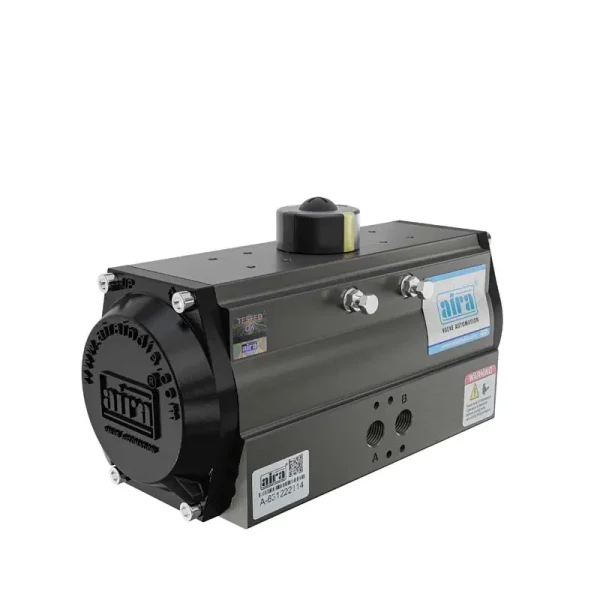

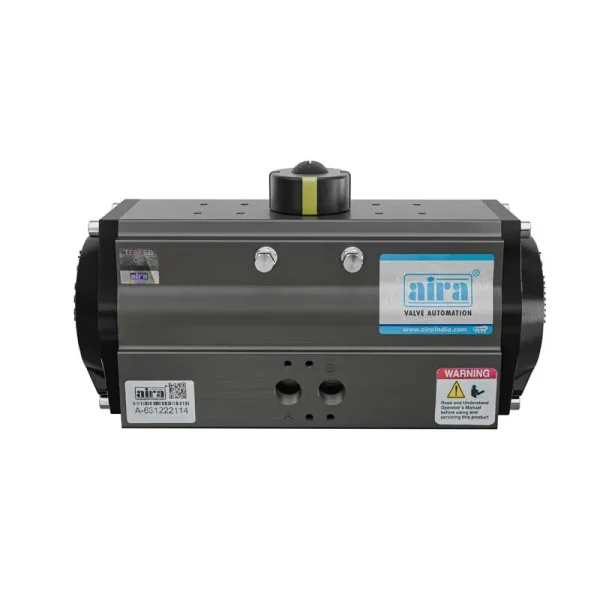

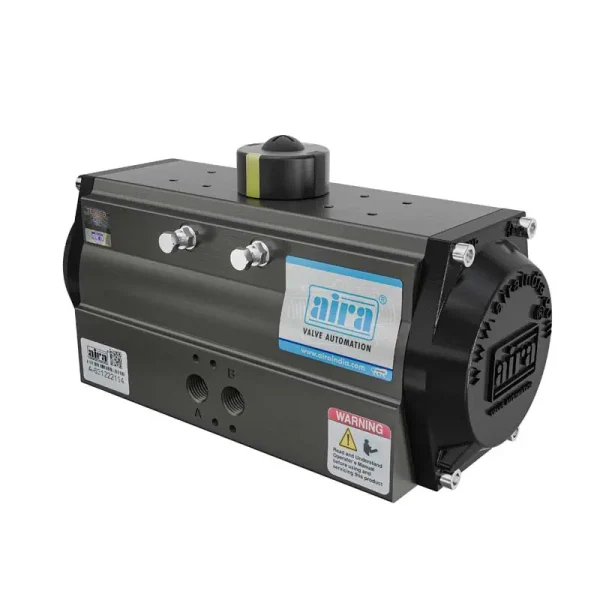

Rack And Pinion Aluminum Double Acting Pneumatic Actuator

Name: Rack And Pinion Aluminum Double Acting Pneumatic Actuator
Brand: Aira Euro

Inquiry Now

Approvals

Aira Euro Automation offers a wide range of double-acting pneumatic actuators including rack & pinion and scotch & yoke transmission methods. We use Extruded Aluminium Hard Anodized for the body and Aluminium Pressure Die Cast for caps & rack. While the pinions are made from EN8 and the seals are available in BUNA – N and in Viton. We also make stainless steel pneumatic actuators. In the making of our products, we use only high-graded quality raw materials. We maintain the international standard and designed it as per ISO 5211. Due to this design, the mounting becomes quick and easy with any valve.

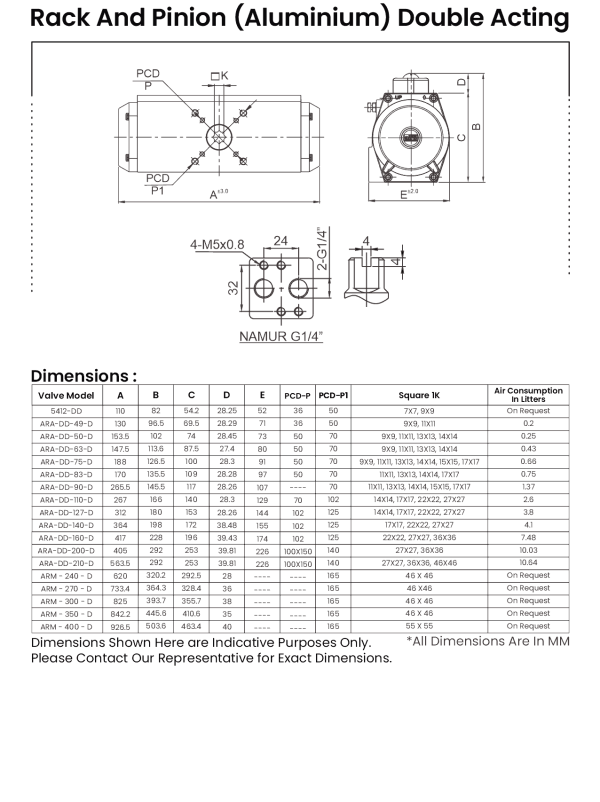

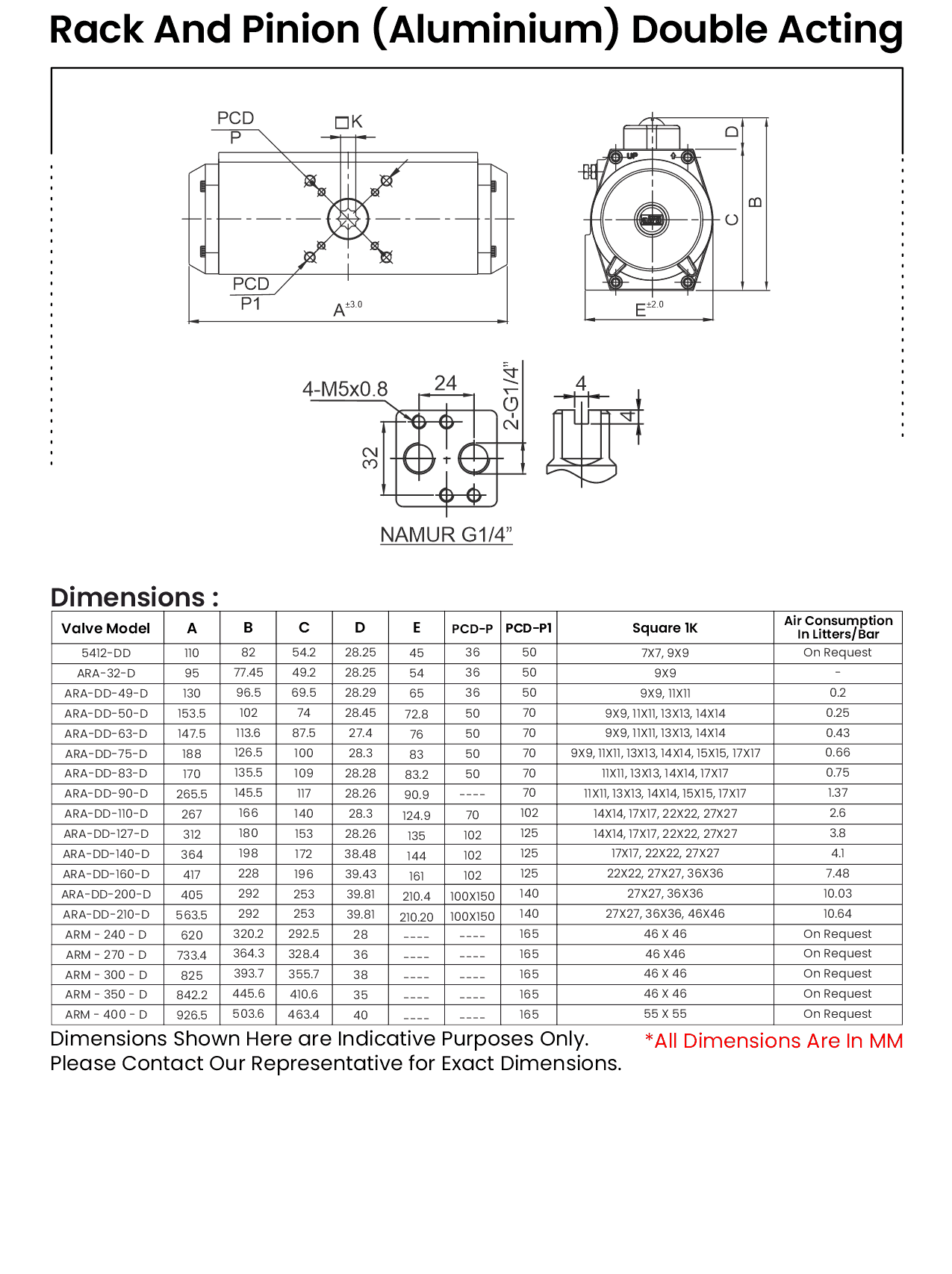

Specification & Standard

Size Range

ARA-5412 To ARA-400

Temperature Range

-20°C To 90°C

Working Pressure

4 To 8 Bar

Method Of Transmission

Rack And Pinion Type

Actuation

Double Acting

Body

Extruded Aluminium Hard Anodized

Caps And Rack

Aluminium Pressure Die Cast

Pinion

EN 8

Seals

Buna – N/ Viton

Air pressure

Normal Air Supply Pressure: 4KG/ CM², Air Supply Pressure: 8KG/ CM² Max

Actuator Design

ISO 5211 (Actuator Can Be Quickly And Easily Mounting)

Rotation

90° Rotation

Torque

0 To 8546 NM

Mounting PCD

ISO 5211 Mounting Standard

Body Material

Aluminium - Extruded

Piston Material

Aluminium

Applications

Operating For Valve

Features & Benefits

1 – Hard Anodized Barrel / Body to Protect from Hazardous atmosphere & corrosion, which enhance life of actuator.

2 – Mounting Standard Pinion Top (As Per Namur Standard) The pinion (shaft) top drilled and slotted for easy assembling of switch, positioners and other accessories.

3 – Adjusting Bolt Adjusting Bolts for 0° – 90° ± 5% Over Travel.

4 – ISO – 5211 Standard Mounting for Valve (An International Standard) Double bottom drilling for actuator to valve Assembling & centering. Designed for strength and easy mounting or interchangeability.

5 – ISO – 5211 Standard Pinion Bottom (An International Standard) Bottom of the pinion (Shaft) as female key, double square-hole for assembling on valves with square key stem and in line or turned to 45°. Designed for strength and sure-fix with stem.

6 – Sliding Skates The innovation for replaceable sliding skates, between Pistons (Racks) and internal bore surface of the Actuator, just to avoid metal contact, which enhances the Actuator life.

7 – Compact Design “aira” Actuators are designed as compact double acting which offers high torque values. Internal sliding surface, machined and anodized for minimum friction and long life of actuator.

This pneumatic double-acting actuator requires normal air pressure from 4Kg/cm² (alt+0178 for ²) to a maximum 8Kg/cm² air supply. With this air supply, it can generate up to 13673 NM torque.

Mechanism of Double Acting Pneumatic Actuator

With the help of piston-connected racks, the center rod connected pinion rotates on its axis. When the pressurized air enters the chamber from port – 1, the piston pushes forward and the connected rack rotates the central pinion. To get the earlier position, pneumatic air enters from port -2 and pushes back the piston to its earliest position. Hence the piston-connected rack moves backward and also rotates the pinion. In rack & pinion transmitted double acting pneumatic actuators do not use springs like single-acting pneumatic actuators. The double-acting actuators required air supply twice to complete one cycle. As a result, these actuators provide full control over the connected valve.

Uses of Double Acting Actuator

The Double Acting Pneumatic Actuators provide 90° and 180° Rotation. These actuators are very friendly and widely used to operate quarter-turn valves. Where huge pressure is required to open or close the flow line for a long time, these actuators are ideal for that. To control flammable gas pipelines or refineries remotely, these actuators are the best fit as they provide spark-free transmission.
