Pneumatic Pneumatic

Rotary Valve Positioner

Size Range
As Per Standard
Temperature Range
-20° To 70° C
Working Pressure
100 PSI Max. (7.0 kgf/cm²)
Inquiry Now

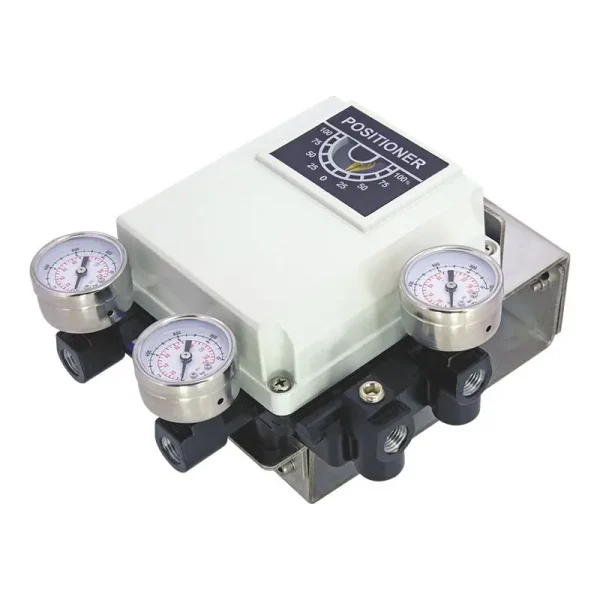

Pneumatic Pneumatic Rotary Valve Positioner

Size Range
As Per Standard
Temperature Range
-20° To 70° C
Working Pressure
100 PSI Max. (7.0 kgf/cm²)
Inquiry Now

Approvals

“aira” Offers APP – 1200 R/L Series Positioners Are Used For Liner / Rotary Movement With Ranges 3-9 And 9-15 Psig Control Sigal , When You Select Split Range Standard Rang Is 3-15 Psig The Positioners Can Handle The Supply Pressure Upto 100 Psig For Higher Pressure Industrial Pneumatic And Process Control System Requirements

Specification & Standard

Size Range

As Per Standard

Model

APP-1200-L / APP-1200-R

Input Signal

3~15psi (0.2 – 1.0 kgf/cm²)

Supply Air Pressure

100 PSI Max. (7.0 kgf/cm²)

Standard Stroke

10~80mm

Air Piping Connection

1/4" NPT

Ambient Temperature

-20° To 70° C

Explosion Proof Classification

Exia II BT6,Exdm II CT6

Features & Benefits

1 – Designed Block Build Structure For Maintenance And Repair

2 – Precise Calibration With Simple SPAN And ZERO Adjustment

3 – Simple Conversion To Direct Acting Or Reverse Acting

4 – Split Range Control Available By Simple Adjustments Without Changing Parts

5 – Simple Structure For Feedback Connection

6 – Corrosion – Resistant Aluminium Die Cast Body

7 – Sensitive Response For High Performance

8 – Vibration Resistant Design

9 – Stainless Steel Gauge Standard

10 – A Restricted Pilot Valve Orifice Kit For Small Actuators Included

11 – Optional Built – In Limit Switched Or 4-20 mA Position Transmitter For Feedback

12 – Optional Directly – Mountable Positioner

13 – Proved The Reliability Through Over 5,00,000 Times Of Repeat Test & Vibration Test

Get in touch with our team at +91 9099477256 to receive the Dimension Table
