Approvals

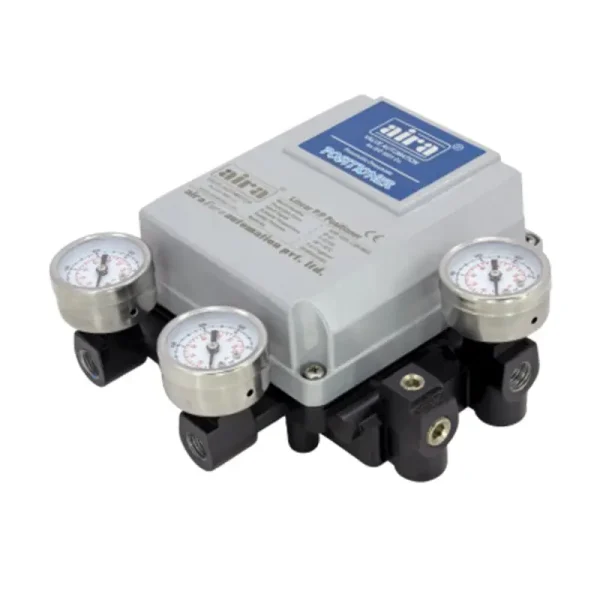

“aira” APP – 1200 R/L Series Positioners Are Used For Liner / Rotary Movement With Ranges 3-9 And 9-15 Psig Control Sigal , When You Select Split Range Standard Rang Is 3-15 Psig The Positioners Can Handle The Supply Pressure Upto 100 Psig For Higher Pressure Industrial Pneumatic And Process Control System Requirements
Specification & Standard
Working Pressure
1.4~7 Kgf/cm² (20~100psi)
Input Signal
4~20 mA DC
Standard Stroke
10~50mm
Air Piping Connection
PT (NPT) 1/4
Explosion Proof Classification
Exia II BT6,Exdm II CT6
Degree of Protection
IP 66
Out Put Characteristics
Linear
Material
Aluminium alloy
Conduit Connection
1/2” PF
Gauge Connection
PT (NPT) 1/8
1 – Designed Block Build Structure For Maintenance And Repair
2 – Precise Calibration With Simple SPAN And ZERO Adjustment
3 – Simple Conversion To Direct Acting Or Reverse Acting
4 – Split Range Control Available By Simple Adjustments Without Changing Parts
5 – Simple Structure For Feedback Connection
6 – Corrosion – Resistant Aluminium Die Cast Body
7 – Sensitive Response For High Performance
8 – Vibration Resistant Design
9 – Stainless Steel Gauge Standard
10 – A Restricted Pilot Valve Orifice Kit For Small Actuators Included
11 – Optional Built – In Limit Switched Or 4-20 mA Position Transmitter For Feedback
12 – Optional Directly – Mountable Positioner
13 – Proved The Reliability Through Over 5,00,000 Times Of Repeat Test & Vibration Test
Get in touch with our team at +91 9099477256 to receive the Dimension Table
