Approvals

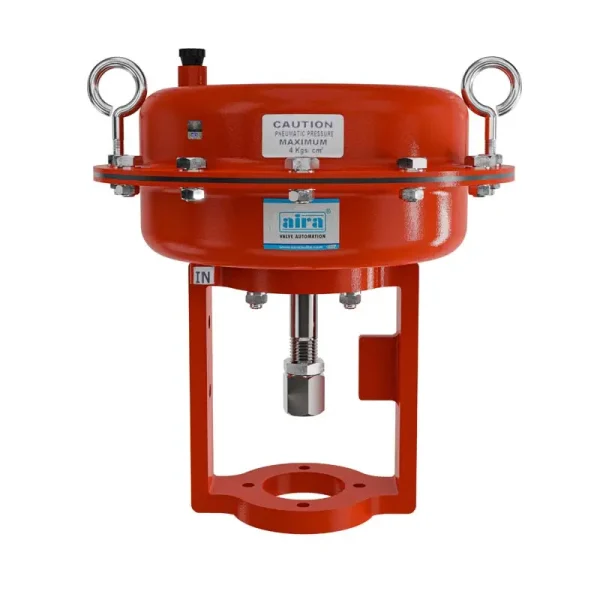

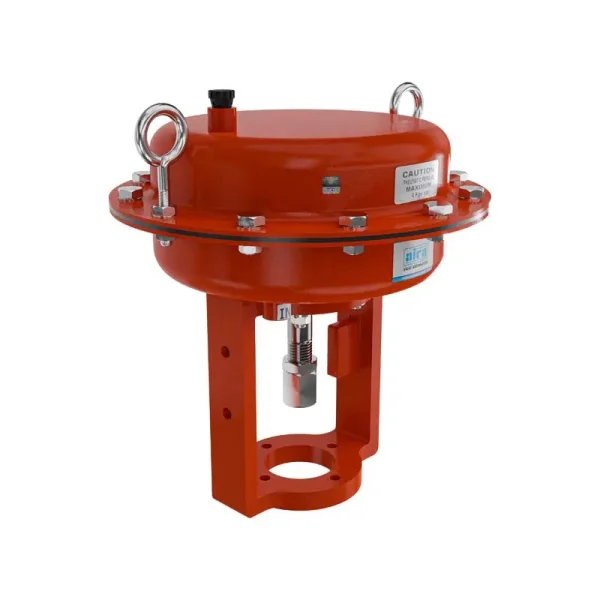

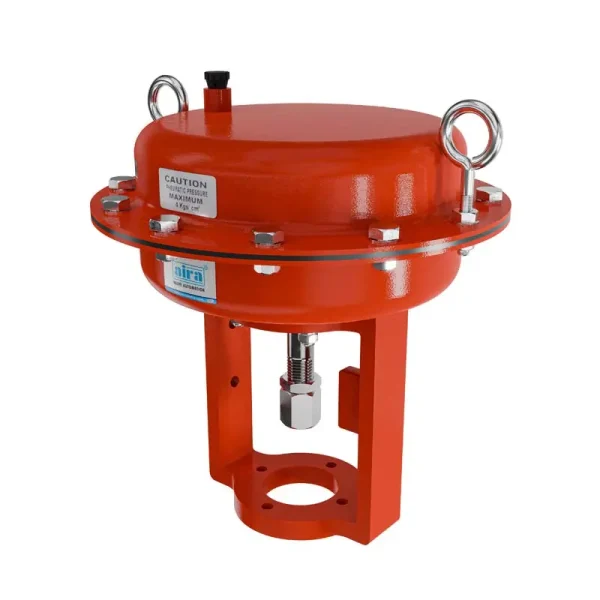

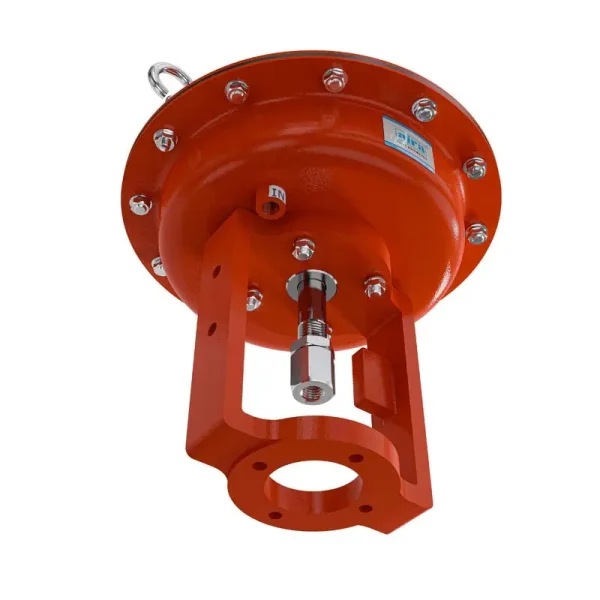

A Pneumatic Linear Diaphragm Actuator is a device that converts compressed air into linear motion to control valves or dampers. It uses a flexible diaphragm and a spring to move a shaft or stem in response to changes in air pressure. These actuators are simple, reliable, and commonly used in automation systems for precise control of flow in industries like HVAC, water treatment, and manufacturing.
Specification & Standard
Temperature Range
-20°C To 90°C
Inlet Air Supply
2.5 To 4 KG/CM²
Stem Movement
Linear
Actuator Action
Direct Acting / Reverse Acting
Air Fail Position
Stem Extended / Stem Retracted
Features & Benefits
1. Flexible Diaphragm: The core component that converts pneumatic pressure into motion, ensuring smooth and reliable operation.
2. Spring Return: Includes a spring mechanism that returns the actuator to a default position when pressure is removed, ensuring fail-safe operation.
3. Safety: With the ability to return to a default position during a failure, pneumatic linear diaphragm actuators help maintain system safety and prevent damage.
Pneumatic Linear
Diaphragm Actuator
Dimension Table
Pneumatic Linear
Diaphragm Actuator
Dimension Table
