Centric

Inflatable Butterfly Valve

Size Range
4" To 16" (50 MM To 600 MM)
Temperature Range
180°C
Working Pressure
1.6 Mpa
Inquiry Now

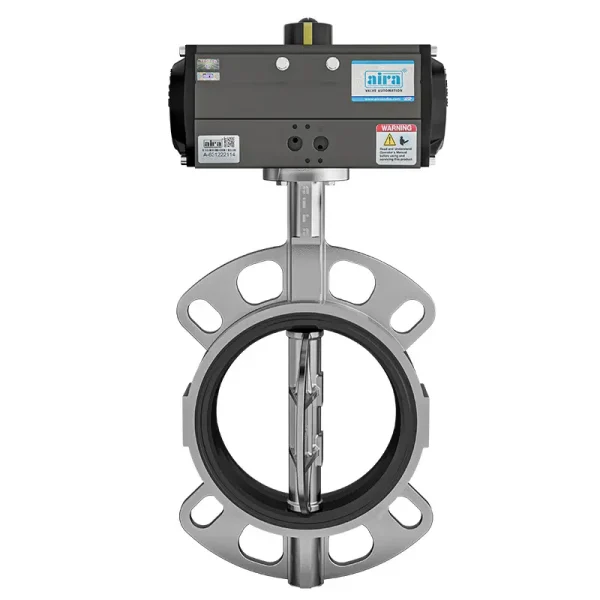

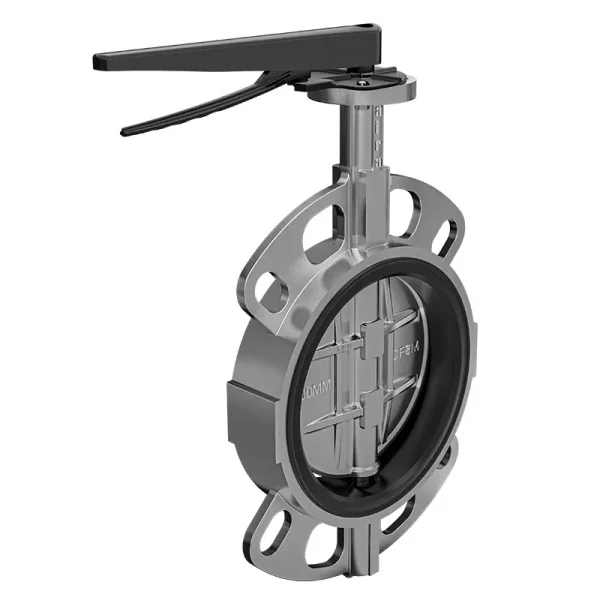

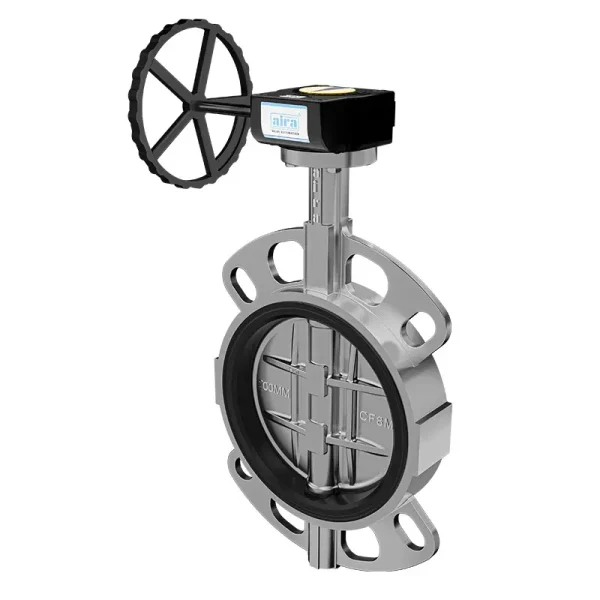

Centric Inflatable Butterfly Valve

Size Range
4" To 16" (50 MM To 600 MM)
Temperature Range
180°C
Working Pressure
1.6 Mpa
Inquiry Now

Approvals

“aira” offers an inflatable seated butterfly valve ideal for handling dry bulk solids, liquid Slurries, and powders. This valve excels in abrasive applications, such as with sand or fly ash, by using air pressure to expand the seat against the disc, ensuring a tight seal with even pressure distribution. This design not only improves sealing but also extends valve life by compensating for wear.

Specification & Standard

Size Range

4" To 16" (50 MM To 600 MM)

Temperature Range

180°C

Pressure Class

1.6 Mpa

Air Supply

135 PSIG (9.3 Bar) maximum to seat varies with MOC & Application

Body Material

S.G. Iron

Flapper

CF8/CF8M

Sleeve

EPDM

Shaft

S.S. 304

'o' - Ring

HI - Nitrile

DU Bush

Steel/PTFE

Circlip

S.S. 304

Sealing Gasket

PTFE

Teflon Bush

Teflon

Seat

NBR

Disc

S.S. 304

Pressure

PN - 6

End Connection

Wafer Type

Features & Benefits

The aira Centric Inflatable Butterfly Valve offers a versatile and efficient solution for controlling fluid flow with enhanced sealing capabilities.

1 – Inflatable Sealing: Utilizes an inflatable seat to create a tight, leak-proof seal, ensuring reliable shut-off and minimizing leakage.

2 – Centric Design: Features a centric disc arrangement for smooth operation and minimal friction, enhancing valve performance and longevity.

3 – Durable Construction: Made from high-quality materials to withstand various pressures and harsh conditions.

4 – Ease of Operation: Simple to operate with a user-friendly design, facilitating quick adjustments and maintenance.

5 – Versatile Applications: Suitable for a range of industries including water treatment, chemical processing, and industrial systems.

Fire Safe Design

Direct Mounting As Per ISO 5211

Centric

Inflatable Butterfly Valve

Dimension Table

Centric

Inflatable Butterfly Valve

Dimension Table
