“aira” Offers ON/OFF Valve in compact Design for mixing and or diverting three way application.
Specification & Standard
Size Range
15MM To 65MM
Tempreature Range
PTFE 180°C / CFT 220°
Pressurre Class
4.5 to 7 BAR
Shutoff Rating
Tight Shut off
Body Style
Y - Body - Screw End, Flange End, Triclover End
Flange Drilling
150#
Certification
CE Aprroved
Body Materials
S. S - 304, S. S - 316-L
Stem Materials
S. S - 304
Seat Materials
PTFE, CFT, GFT
Plug Materials
S. S - 304
Design Standard
Manufacture - Standard
Testing Standard
API - S98, PN10
Face To Face
Manufacture - Standard
Leakage
As Per ANSI B 16.104 - 1976 Teflon Seating Class IV For Other Soft Seating Class VI Drop Tight / Bubble Tight
Applications
Stem Oil / Gas / Water
Features & Benefits
1 – Type Mixing & Diverting Valve.
2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision.
3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions.
4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability.
5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control.
6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance.
7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.

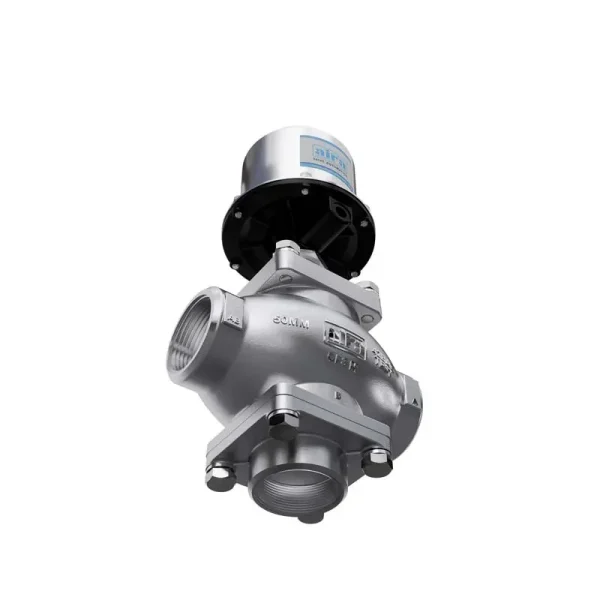

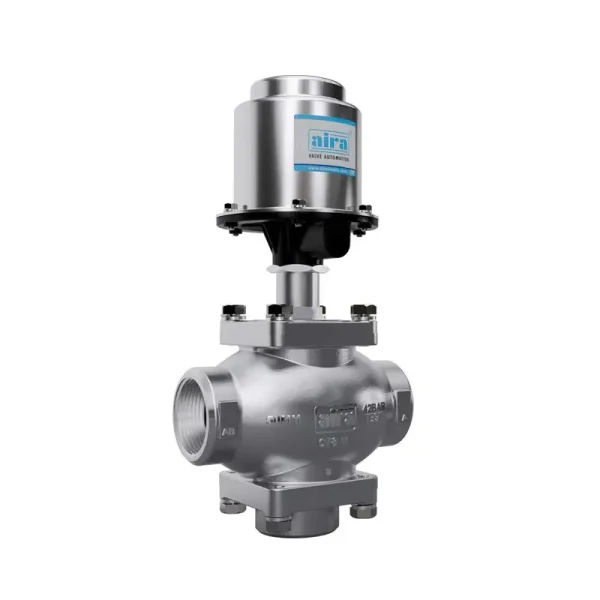

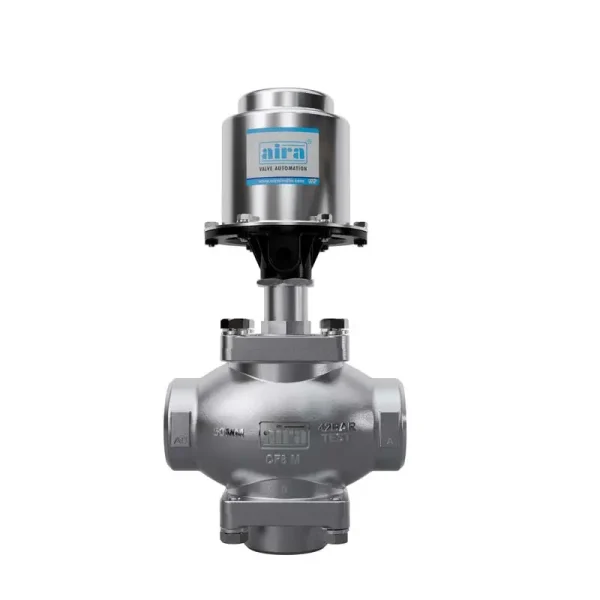

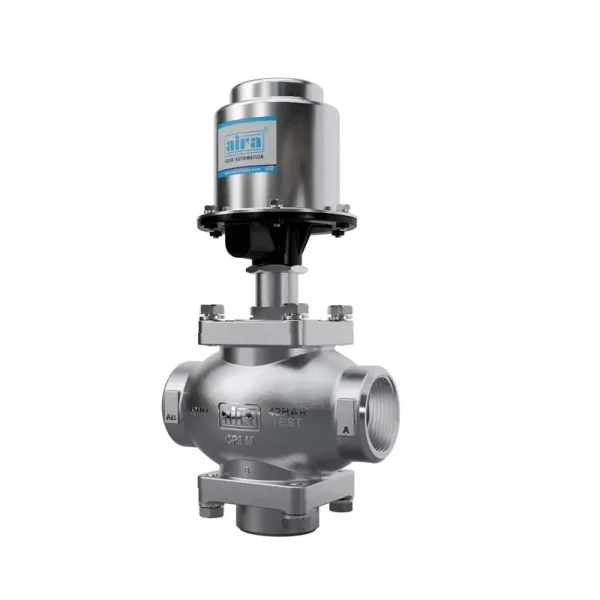

Mixing & Diverting SS Cap High Pressure
Screwed Control Valve
Dimension Table
Mixing & Diverting SS Cap High Pressure
Screwed Control Valve
Dimension Table
