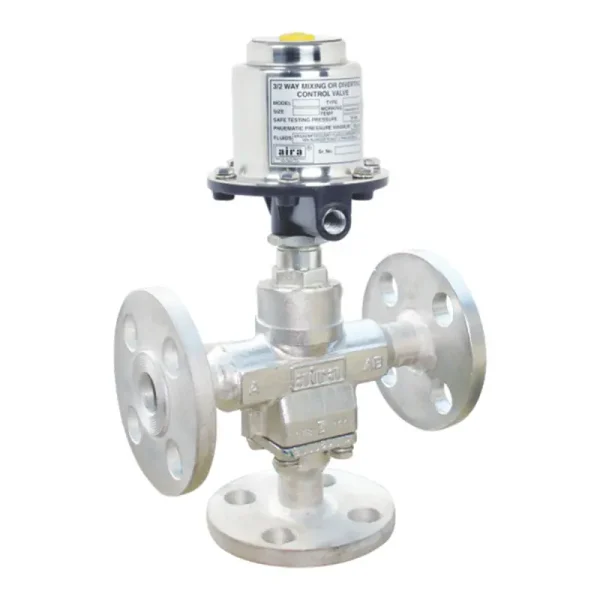

“aira” Offers ON/OFF Valve in compact Design for mixing and or diverting three way application.
15MM To 65MM
PTFE 180°C / CFT 220°
4.5 to 7 BAR
Tight Shut off
Y - Body - Screw End, Flange End, Triclover End
150#
CE Aprroved
S. S - 304, S. S - 316-L
S. S - 304
PTFE, CFT, GFT
S. S - 304
Manufacture - Standard
API - S98, PN10
Manufacture - Standard
As Per ANSI B 16.104 - 1976 Teflon Seating Class IV For Other Soft Seating Class VI Drop Tight / Bubble Tight
Stem Oil / Gas / Water
1 – Type Mixing & Diverting Valve.
2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision.
3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions.
4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability.
5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control.
6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance.
7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.
