Mixing & Diverting Medium Pressure

Screwed Control Valve

Size Range
15MM To 100MM
Temperature Range
PTFE 180°C / CFT 220°
Working Pressure
Upto 10 BAR
Inquiry Now

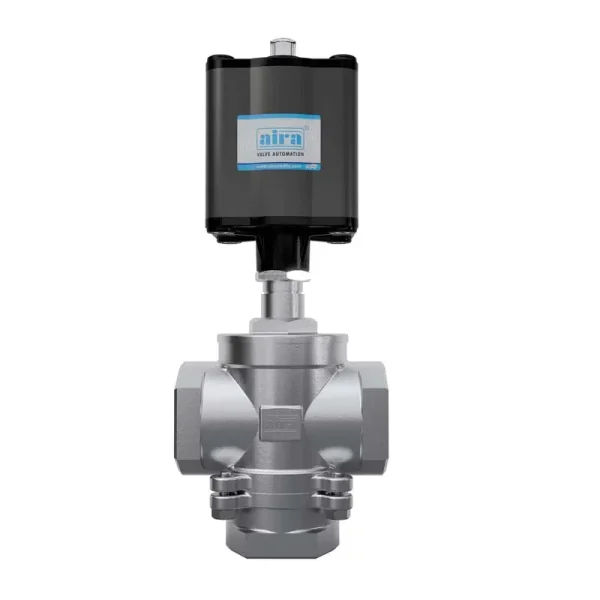

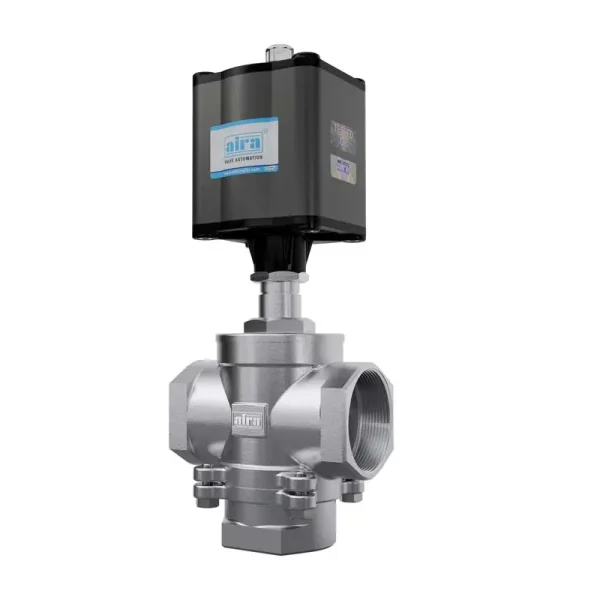

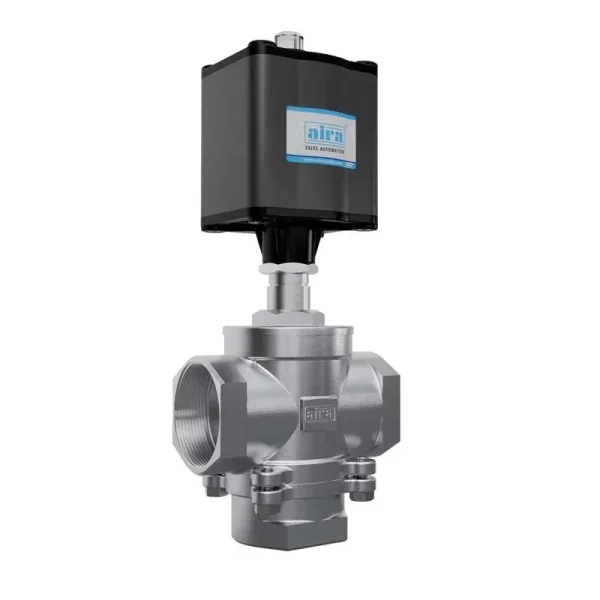

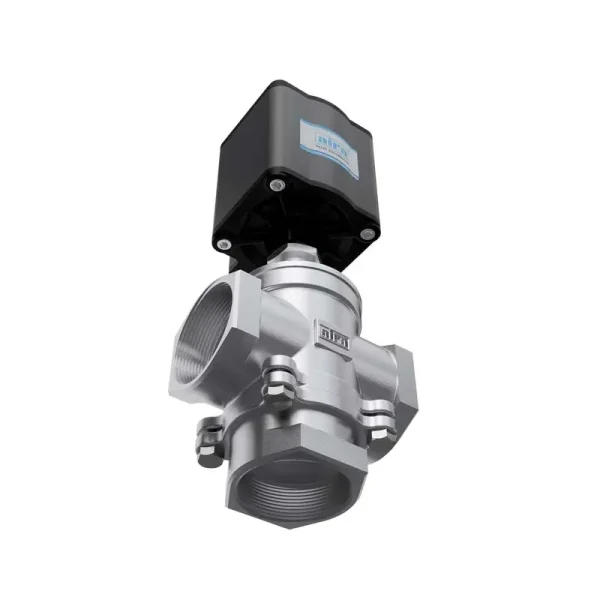

Mixing & Diverting Medium Pressure Screwed Control Valve

Size Range
15MM To 100MM
Temperature Range
PTFE 180°C / CFT 220°
Working Pressure
Upto 10 BAR
Inquiry Now

Approvals

“aira” Offers ON/OFF Control Valve in compact Design for mixing and or diverting three way application.

Specification & Standard

Size Range

15MM To 100MM

Tempreature Range

PTFE 180°C / CFT 220°

Pressurre Class

Upto 10 BAR

Shutoff Rating

Tight Shut off

Body Style

Y - Body - Screw End, Flange End, Triclover End

Flange Drilling

150#

Certification

CE Aprroved

Body Materials

S. S - 304, S. S - 316-L

Stem Materials

S. S - 304

Seat Materials

PTFE, CFT, GFT

Plug Materials

S. S - 304

Design Standard

Manufacture - Standard

Testing Standard

API - S98, PN10

Face To Face

Manufacture - Standard

Leakage

As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight

Applications

Air / Water / Oil / Gas / Steam & Chemical

Features & Benefits

1 – Type Mixing & Diverting Valve.

2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision.

3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions.

4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability.

5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control.

6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance.

7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.

Mixing & Diverting Medium Pressure

Screwed Control Valve

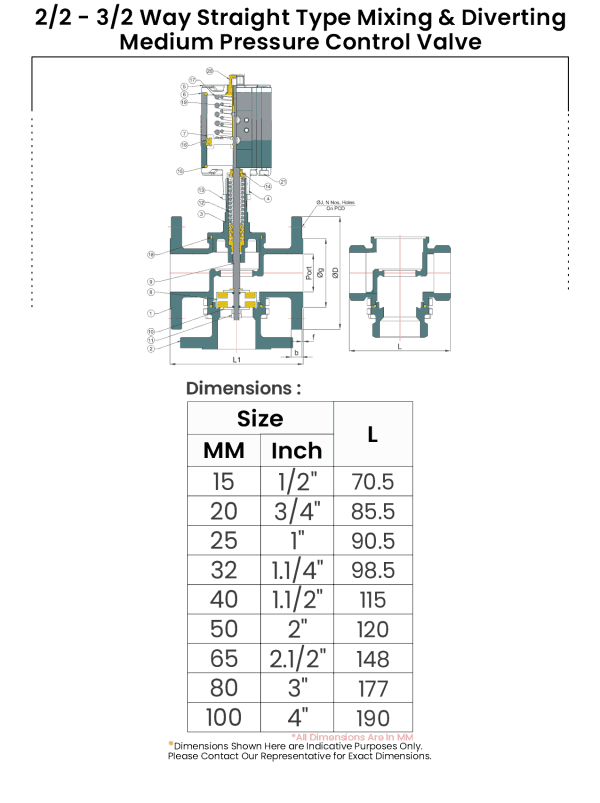

Dimension Table

Mixing & Diverting Medium Pressure

Screwed Control Valve

Dimension Table
