Low

Pressure Reducing Valve Screwed

Size Range
15MM To 100MM
Temperature Range
Upto 150°C
Working Pressure
6 kg/cm²
Inquiry Now

Low Pressure Reducing Valve Screwed

Size Range
15MM To 100MM
Temperature Range
Upto 150°C
Working Pressure
6 kg/cm²
Inquiry Now

Approvals

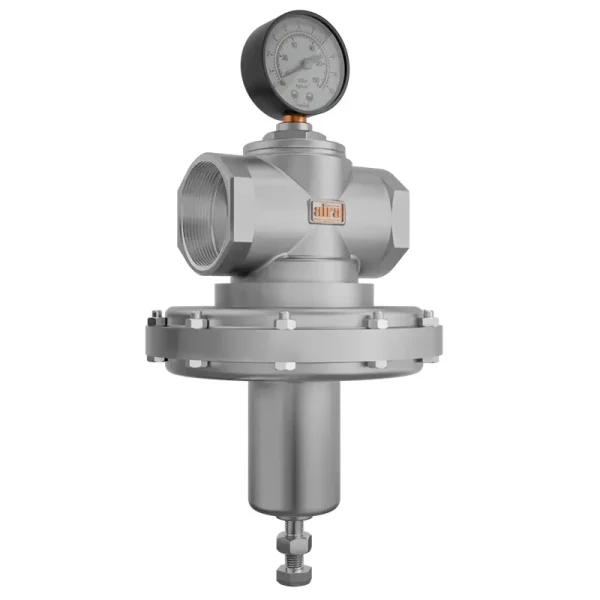

“aira” Low Pressure Reducing Valve efficiently regulates and maintains stable pressure in hydraulic and pneumatic systems. Designed for reliability and precision, it ensures consistent performance by reducing high inlet pressure to a controlled lower output level. Ideal for applications where maintaining optimal pressure is crucial.

Specification & Standard

Size Range

15MM To 100MM

Temperature Range

Upto 150°C

Max Inlet Pressure

6 kg/cm²

Pressure Adjusting Range

0.2 ~ 1.5 kg/cm²

Body Style

Globe Type

Body Materials

CF8 / CF8M

Piston Materials

CF8 / CF8M

Seat Materials

NBR / EPDM / VITON

Design Standard

Manufacture - Standard

Testing Standard

Manufacture - Standard

Face To Face

Manufacture - Standard

Applications

Water / Gas / Air

End Connection

Screwed End

Features & Benefits

1 – Low Pressure Control: Precisely regulates low-pressure applications.

2 – Direct Activation: Simple operation without external pilots.

3 – Adjustable Set Point: Allows easy adjustment of desired low pressure.

4 – Compact Design: Ideal for constrained spaces.

5 – Durable Materials: Ensures long-term reliability and performance.

6 – Minimal Maintenance: Designed for low upkeep.

7 – High Precision: Delivers accurate low-pressure regulation.

8 – Corrosion Resistant: Suitable for various fluids and environments.

Low

Pressure Reducing Valve Screwed

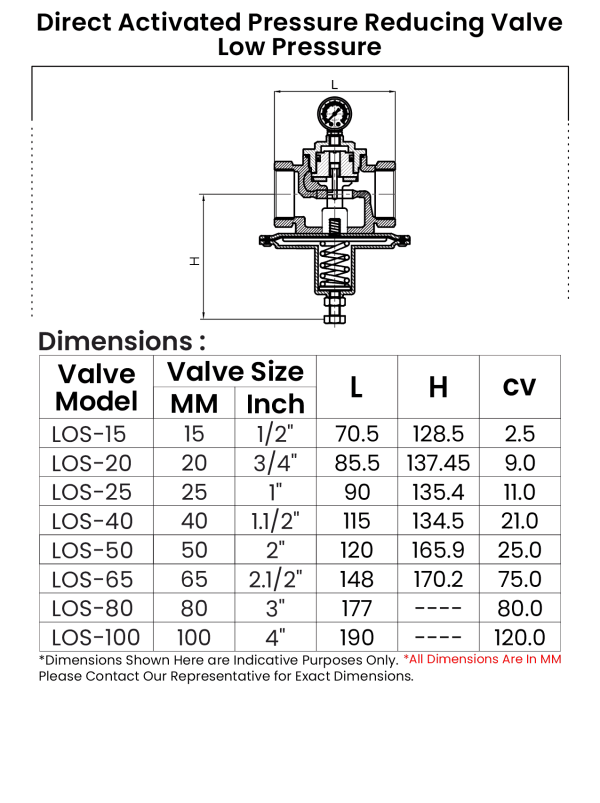

Dimension Table

Low

Pressure Reducing Valve Screwed

Dimension Table
