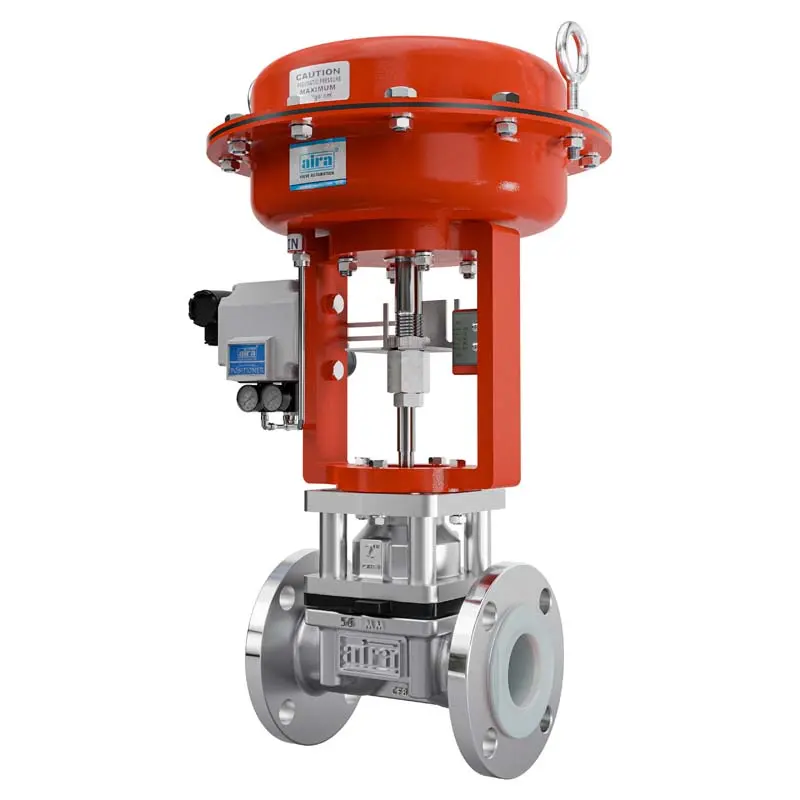

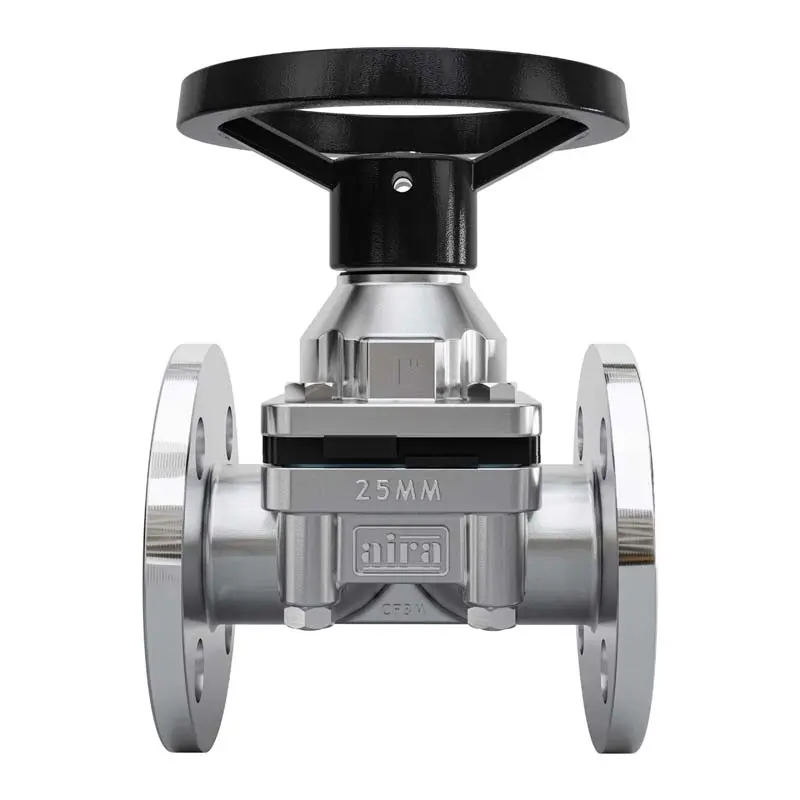

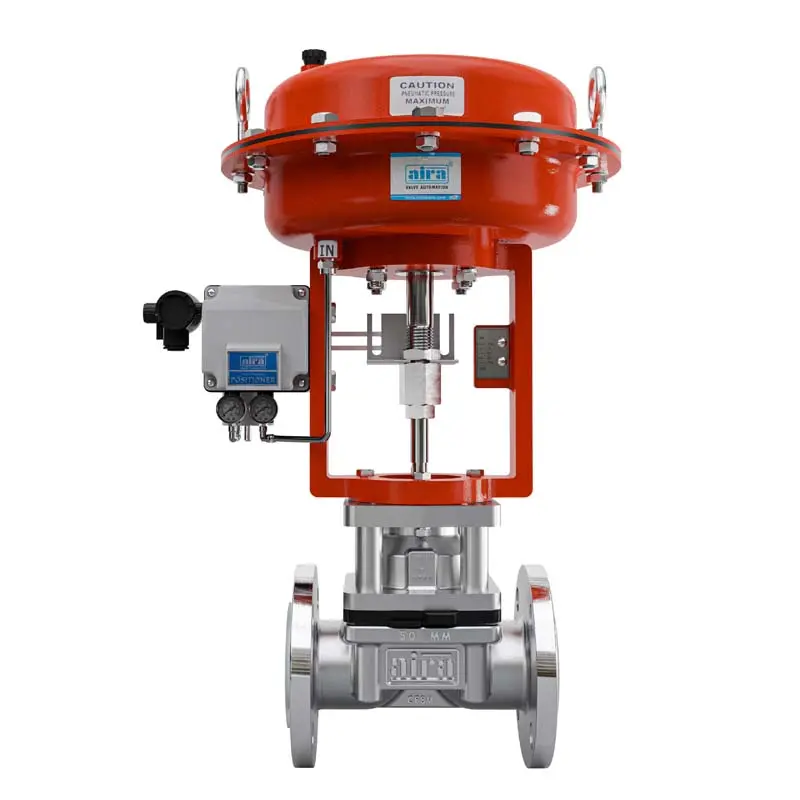

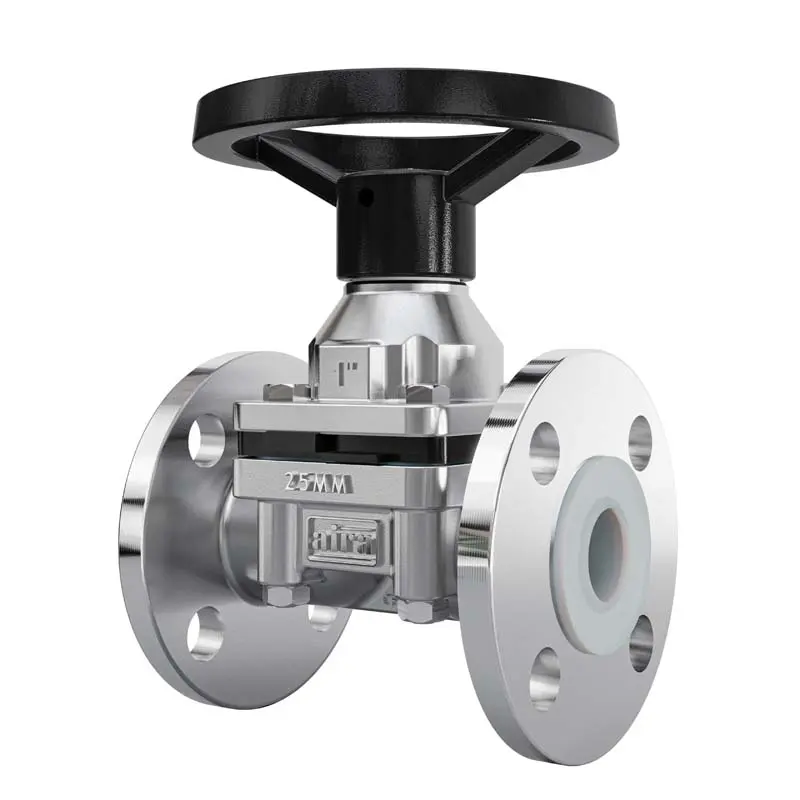

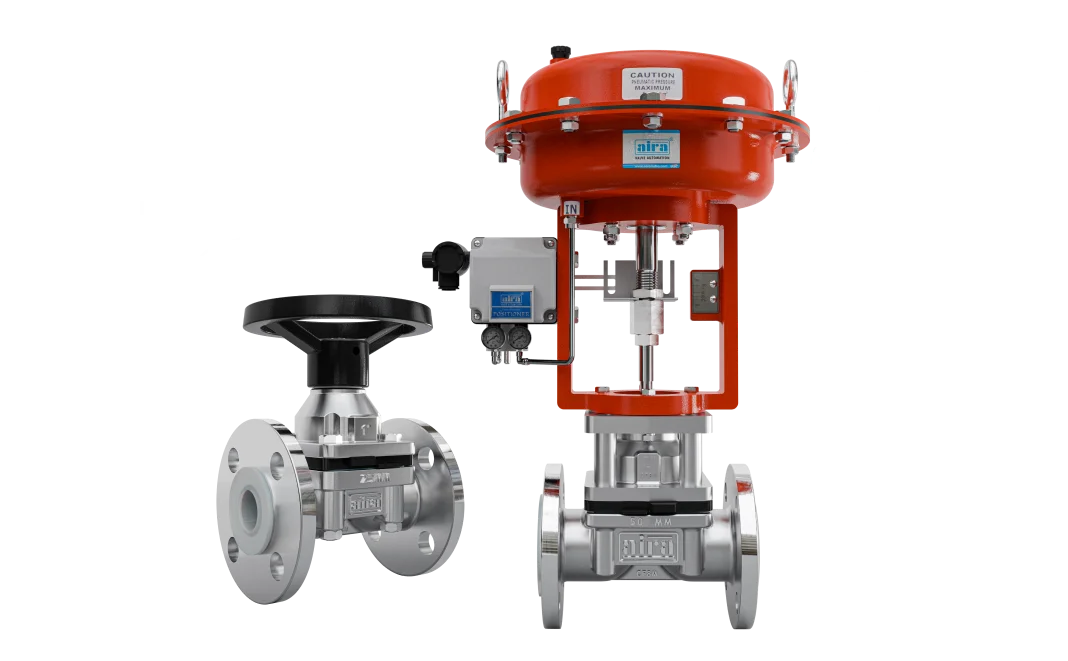

Lined Diaphragm Valve

Inquiry Now

Approvals

”aira” Offers FEP/PFA Lined Diaphragm Valves are generally used for pressure, temperature, flow & level control of extremely Corrosive, Hazardous, Pure Liquid, Vapours and Gas Media in the Chemical, Pharmaceutical and Other industrial applications. This lining is done in – house.

Specification & Standard

Design & Manufacturer

API 600/BS 1873

Valve Face To Face Dimension

DIN 3202

Inspection & Testing

API 598/BS EN 12266 PART - I

Leakage Class

Class VI

End Connection

Flanged 150#

Valve Rating

Flangend 150#

Spark Test

15 Kv DC to 40 Kv DC

Size Range

1/2'' To 8'' (15MM To 200MM)

Temperature Range

-50'C To 300' For Soft Seated Valves. Contact Works For Special Requirement

Pressure Class

PN 6

Media

Chemical

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Bonnet Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Design Standard

BSEN ISO 17292, ASME B 16.34

Flange Drilling

ASME B 16.5 CLASS 150#

Certification

Design CE Approved, SIL3 Approved, IBR Approved

Face To Face

ASME B 16.10

Body Type

Flangend

Shout Off Rating

VI Class

Fugitive Emissions

Yes

Stem Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Disc Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Features & Benefits

01 – LINED CONTROL VALVES : ”aira” lined Control valves are made to with stand harsh corrosive and abrasive media with much higher sealing capacity than all other quarter turn valves to perform superiorly even after prolonged use. This makes it ideally suited as more economical choice in the long run. Made to perform in vacuum as well as in high pressure application.

02 – CORROSION PROTECTION : Low porosity FEP/PFA (Perfluoroalkoxy) as standard liner. All cast parts have an epoxy based coating for added protection from corrosion attack due to permeation.

03 – LOCKED-IN LINER : ”aira” Lined Control valves feature an unpigmented virgin FEP/PFA lining applied by Transfer Moulding and locked into castings by machined dovetail-shaped recesses in body casting and cast holes. This resists shrinkage and blow out. The liner is spark tested in accordance with ASTM D5126 SPEC.
