IBR Approved

Pressure Reducing Valve Screwed

Inquiry Now

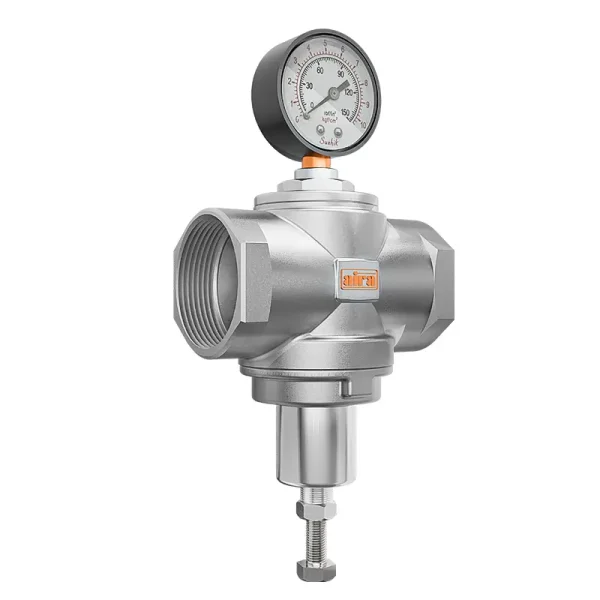

IBR Approved Pressure Reducing Valve Screwed

Inquiry Now

Approvals

“aira” IBR Approved Pressure Reducing Valve is engineered to meet the stringent standards of the Indian Boiler Regulation (IBR), ensuring safety and reliability in high-pressure steam systems. This valve effectively reduces and regulates steam pressure to a desired level, enhancing operational stability and protecting downstream equipment. Designed with precision and durability in mind, it features robust construction and reliable performance for industrial applications. Its IBR approval guarantees compliance with regulatory standards for quality and safety.

Specification & Standard

Size Range

15MM To 100MM

Temperature Range

Upto 150°C

Max. Inlet Pressure

Upto 18 kg/cm²

Pressure Adjusting Range

1 ~ 6 kg/cm² & 4 ~ 10 kg/cm²

Body Style

Globe Type

Body Materials

CF8

Piston Materials

CF8

Seat Materials

Viton

Design Standard

Manufacture - Standard

Testing Standard

Manufacture - Standard

Face To Face

Manufacture - Standard

Applications

Steam

End Connection

Screwed End

Features & Benefits

1 – IBR Certification: Conforms to the Indian Boiler Regulation (IBR) standards, ensuring safety, quality, and compliance with regulatory requirements for steam systems.

2 – Accurate Pressure Control: Provides precise and reliable pressure reduction, maintaining a stable downstream pressure despite fluctuations in upstream conditions.

3 – Durable Construction: Crafted from high-quality materials designed to withstand high pressure and temperature, ensuring long-term durability and performance.

4 – Threaded Connections: Features easy-to-install threaded connections, simplifying the installation process and providing a secure, leak-proof seal.

5 – Adjustable Settings: Allows for fine-tuning of the outlet pressure to match specific operational requirements, enhancing flexibility and control.

6 – Enhanced Safety: Incorporates safety features such as pressure relief mechanisms to protect downstream equipment and prevent overpressure situations.

7 – Robust Design: Built to endure harsh operating conditions, reducing maintenance needs and extending the service life of the valve.

8 – Efficient Performance: Designed for smooth operation and minimal pressure drop, contributing to overall system efficiency and energy savings.

Get in touch with our team at +91 9099477256 to receive the Dimension Table
