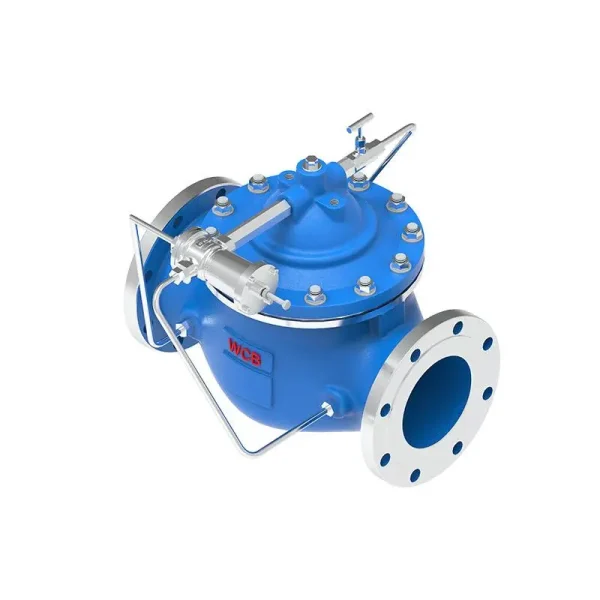

Hydraulic Pressure Reducing Valve

Size Range
50MM To 600MM Flanged End
Temperature Range
80 °C
Inquiry Now

Approvals

“aira” Hydraulic Pressure Reducing Valve is designed to manage and stabilize pressure within hydraulic systems. It effectively regulates output pressure by automatically adjusting to variations in input pressure, ensuring consistent performance and protecting hydraulic components from damage. With its robust construction and precise control, this valve is ideal for demanding industrial applications where reliability and durability are crucial.

Specification & Standard

Size Range

50MM To 600MM Flanged End

Temperature Range

80 °C

Pressure Adjusting Range

1~7 BAR , 4~10 BAR , 1~10 BAR

Design

Diaphragm type Pressure Reducing Valve

Body

Cast Iron / Ductile Iron

Parts

Stainless Steel

Diaphragm

EPDM

Media

Air / Water

End Connection

Flanged End 150 Class

Features & Benefits

1 – Pressure Regulation: Maintains consistent downstream pressure in hydraulic systems.

2 – Direct Activation: Operates without external pilots for straightforward control.

3 – Adjustable Set Point: Easily set and adjust the desired pressure level.

4 – Durable Construction: Made from robust materials for long-term reliability.

5 – High Flow Capacity: Accommodates a range of flow rates while ensuring stable pressure.

6 – Compact Design: Space-efficient for various hydraulic applications.

7 – Low Maintenance: Minimal upkeep required due to efficient design.

8 – Pressure Relief: Integrated relief function to protect against overpressure.

9 – Corrosion Resistant: Built to withstand harsh hydraulic fluids and environments.

Hydraulic

Pressure Reducing Valve

Dimension Table

Hydraulic

Pressure Reducing Valve

Dimension Table
