High Pressure

3000 PSI Screwed End Ball Valve

Size Range
1/2" To 2” BSP/ NPT Thread
Temperature Range
Derling
Working Pressure
ASME Class 150
Inquiry Now

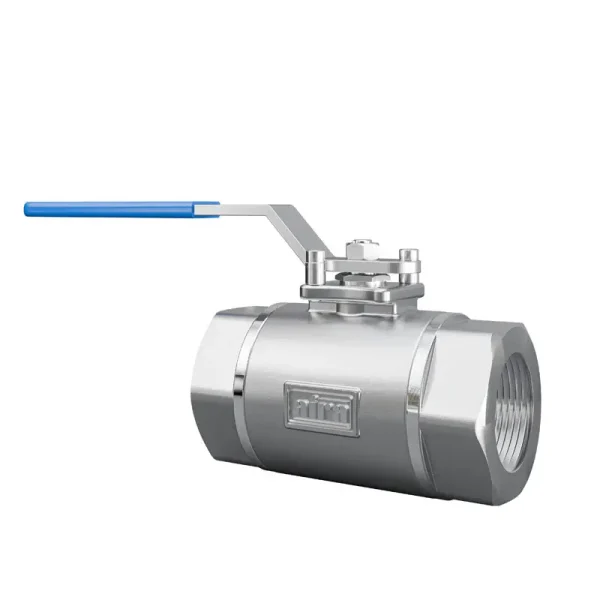

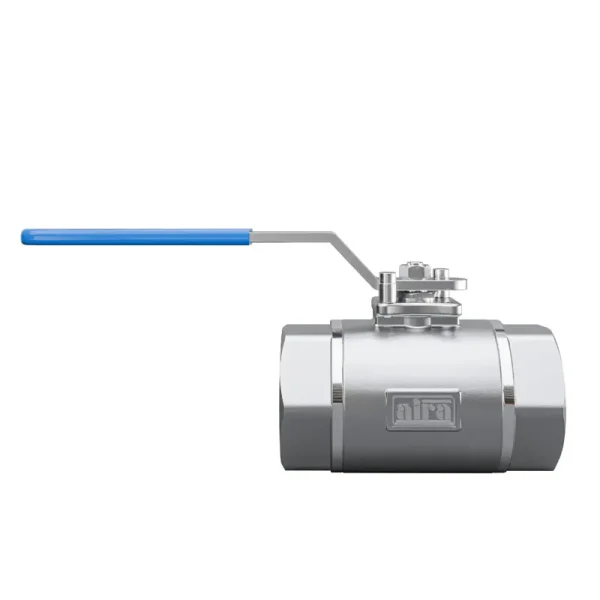

High Pressure 3000 PSI Screwed End Ball Valve

Size Range
1/2" To 2” BSP/ NPT Thread
Temperature Range
Derling
Working Pressure
ASME Class 150
Inquiry Now

Approvals

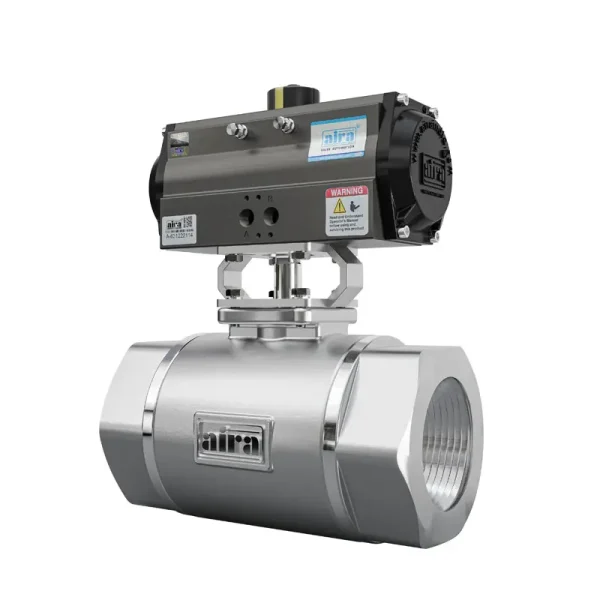

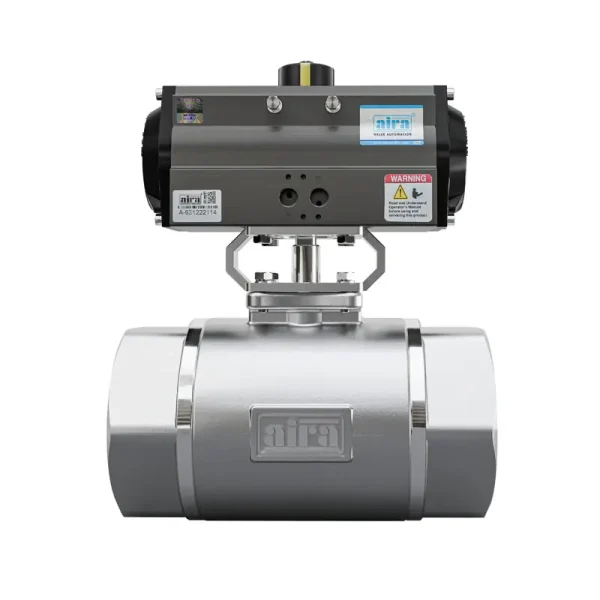

“aira” Offers Pneumatic Actuator Operated Low Torque High Pressure Floating Ball Valve. This Range Offers Reliable Option Of High Pressure Application. These Valve Are Recommended For The Use In Oil, Gas, Petrochemicals Where The Long Life Is Required.

Specifications & Standard

Design & Manufacturer

ASME B 16.34/ BS EN ISO 17292

Inspection & Testing

API 598/ ISO - 5208/ BS EN 12266 - 1

End Connection

ASME B 16.5 Class 150/ 300 For Flanged End

Size Range

1/2" To 2" - 2 Way 3 Piece Screwed- Bsp/npt (Hbt Type)

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment. (Upto -50°C To 420°C)

Stem Material

AISI 410, SS 304, SS 316, SS 304l, SS 316l, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK, D- PLASTIC

Certification

Approved, POD

Valve Face To Face Dimension

ASME B 16.10

Leakage Class

ISO 5208 Class VI/ B16.104, ANSI FCI 70-2(BUBBLE TIGHT SHUTOFF)

Pressurre Class

150#

Media

Air/ Water/ Oil/ Gas

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid

Features & Benefits

1- Fully Compliant To ASME B16.34 & API 608.

2- ISO 5211 Mounting Pad Bolt Pattern.

3- Slot Vented Ball For Thermal Expansion.

4- Anti Static Grounded Ball & Stem.

5- Ring Joint , Tongue & Grove Joint Flange Available.

6- Also Manufacture In Special Grade MOC Like Supen

Anti Static Mechanism

Direct Mounting As Per ISO 5211

High Pressure

3000 PSI Screwed End Ball Valve

Dimension Table

High Pressure

3000 PSI Screwed End Ball Valve

Dimension Table
