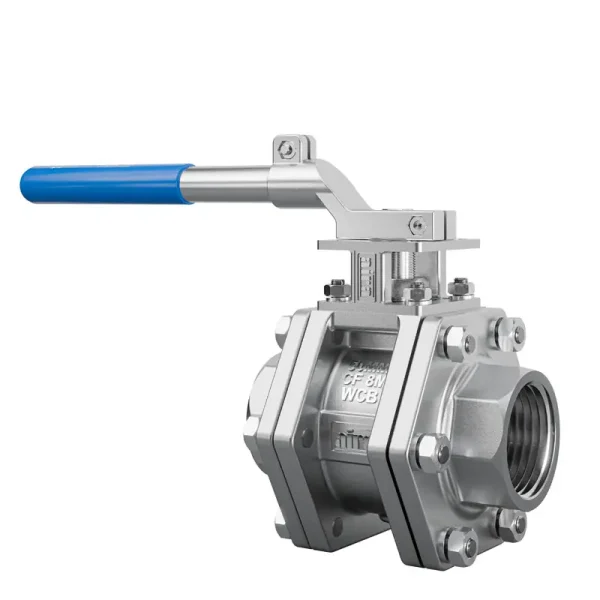

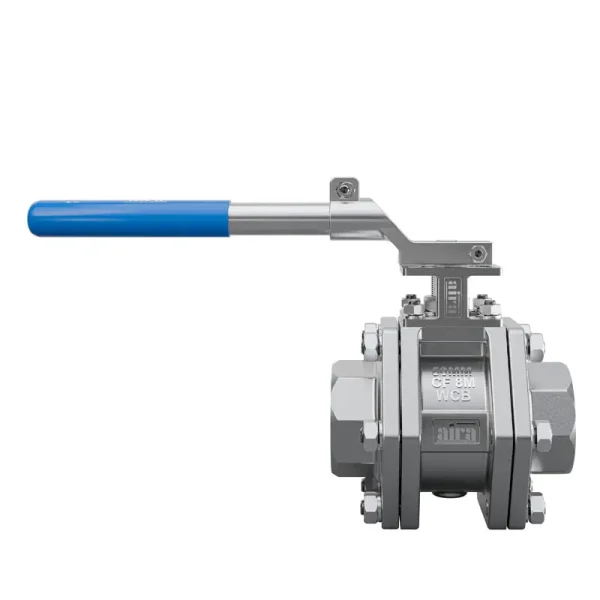

High Pressure 2000 PSI Screwed End Ball Valve

Inquiry Now

Approvals

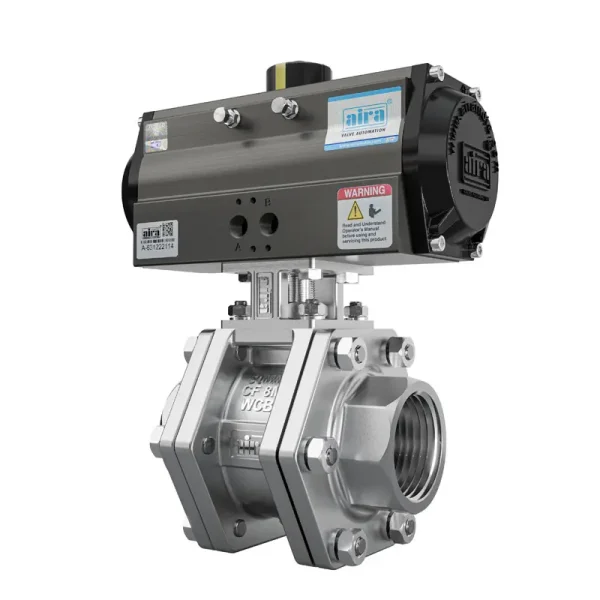

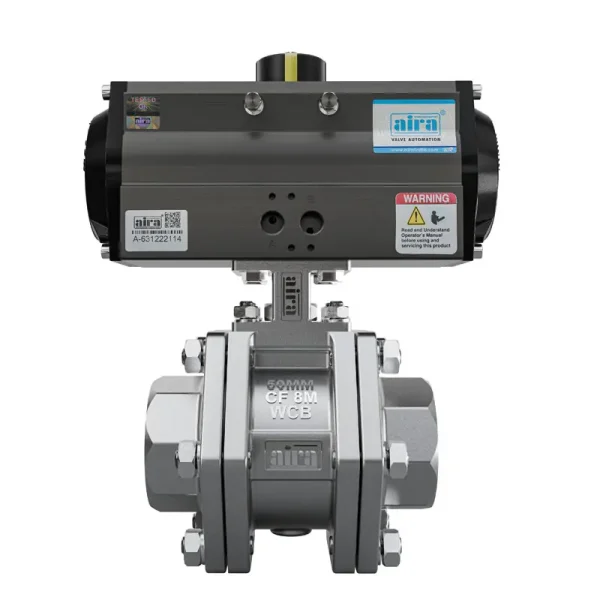

Aira Euro Automation has expertise in manufacturing & exporting High Pressure Ball Valve in India. We are well known as a Pneumatic High Pressure Ball Valve Manufacturer in India. Our high pressure ball valve woking up to 200 Kg/Cm², which is enough for high pressure line.

Our valve is 3 piece design & CE Approved also available in Screwed end connection. We used CF8M material for the valve body and ball which is sustaining Upto 180°C temperature and Up to 200 Kg/Cm² pressure.

Available Accessories with this Ball Valve:

On/Off Indicator
Namur standard solenoid valve in all standard coil voltage
Pneumatic & Electro-pneumatic positioner
Limit Switch for On/off indication at the panel board
Filter + Regulator Combination with Pressure Guage
Air Lock Valve

Specification & Standard

Design & Manufacturer

ASME B 16.34 BS/ EN ISO 17292

Threader Fitting

ASME B 1.20

Inspection And Testing

API 598/ ISO-5208/ BS EN 12266-1

Leakage Class

Class VI ISO - 5208

Stem Material

AISI 410, SS 304, SS 316, SS 304l SS, 316l, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

SS 304, SS 316

Certification

POD

Size Range

1/2" To 3” BSP/ NPT Thread

Tempreature Range

Upto 200°C

Pressurre Class

150#

Media

Air/ Water/ Oil/ Gas/ Food & Pharma

Body Material

CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid

1- Fully Compliant To ASME B16.34 & API 608.

2- ISO 5211 Mounting Pad Bolt Pattern.

3- Blow Outproof Steam Design.

4- Anti Static Grounded Ball & Stem.

5- Slot Vented Ball For Thermal Expansion.

6- Also Manufacture In Special Grade MOC Like Supen Duplex, Hast Alloy Etc.

7- Ball Seal: RPTFE, TFM, PEEK.

Direct Mounting As Per ISO 5211

Anti Static Mechanism

High Pressure

2000 PSI Screwed End Ball Valve

High Pressure

2000 PSI Screwed End Ball Valve

Dimension Table

ADDONS

Locking Arragement
