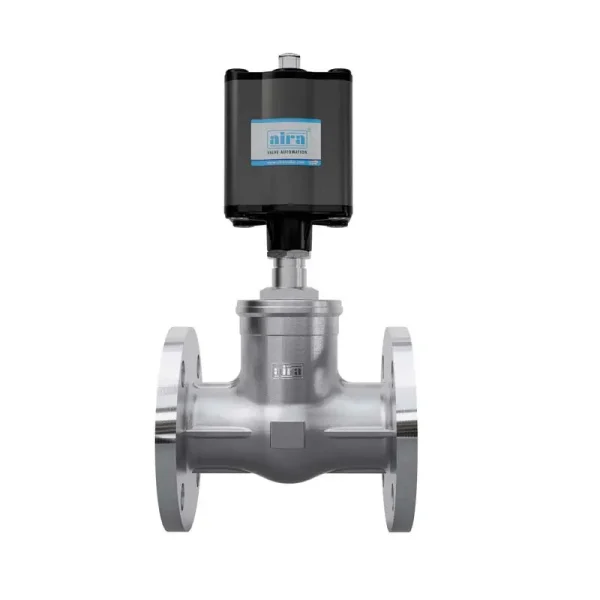

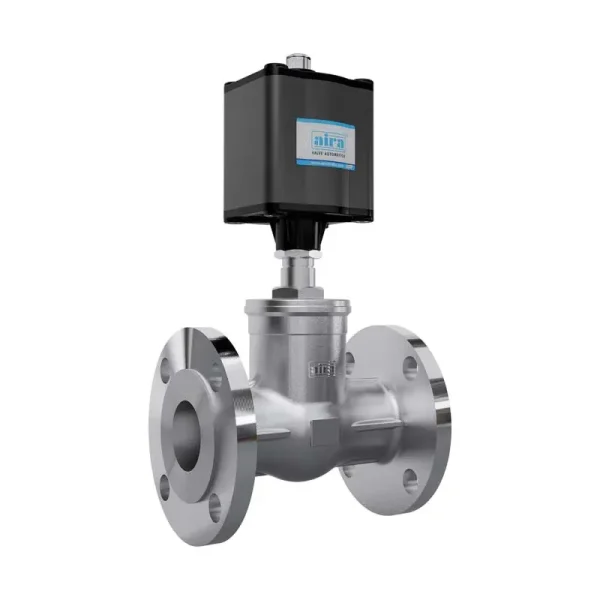

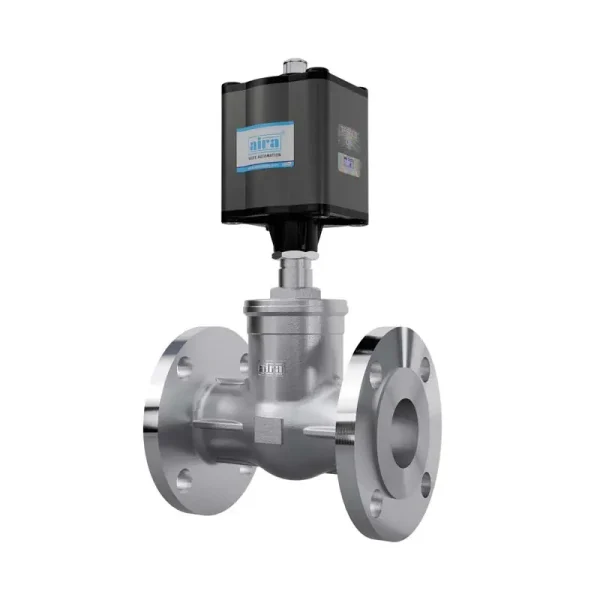

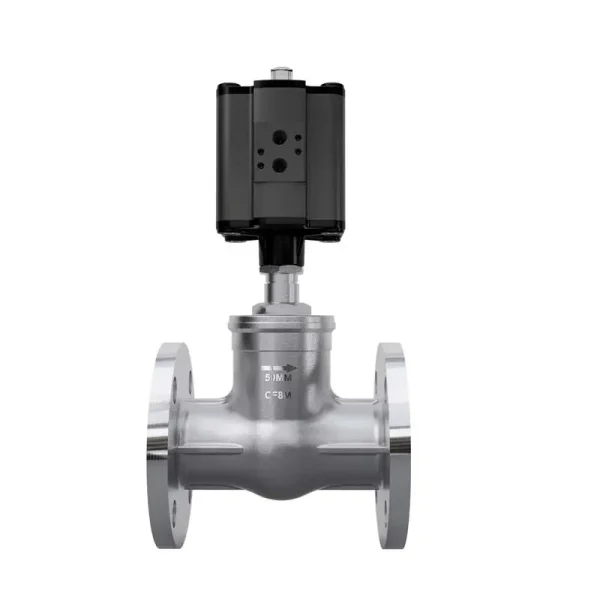

“aira” Offers 2/2-way Globe Control Valve, Pneumatically Operated, N/C & N/O universal actuators with modular universal accessory program up to control heads. They have a stainless steel body and are available with the choice of flange-, threaded- and weld-end port connections. Specifically engineered for reliable control in applications where accuracy is paramount, Fine chemical pressure and flow control High accuracy test bench equipment, Food, beverage and pharmaceutical CIPSIP and auxiliary processes with steam Pharmaceutical Sterilizers, Precision distillation apparatus, Sterile Packaging Machinery.
15MM To 100MM
PTFE 180°C / CFT 220°C
Upto 10 BAR
Tight Shut off
Glob Body
150#
CE Approved
S. S - 304, S. S - 316-L
S. S - 304
PTFE, CFT, GFT
S. S - 304
Manufacture - Standard
API - S98, PN10
Manufacture - Standard
As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight
Air / Water / Oil / Gas / Steam & Chemical
1 – Globe Valve ( On/Off Control ).
2 – Provides Precise Control Of Fluid Flow With On/Off Functionality.
3 – Features A Globe-Shaped Body For Effective Flow Regulation And Minimal Pressure Drop.
4 – Ideal For Applications Requiring Reliable And Accurate Shut-Off Or Flow Control.
5 – Made From High-Quality Materials For Durability And Long Service Life.
6 – Suitable For Various Industrial Processes And Systems Where Control And Isolation Of Flow Are Required.
