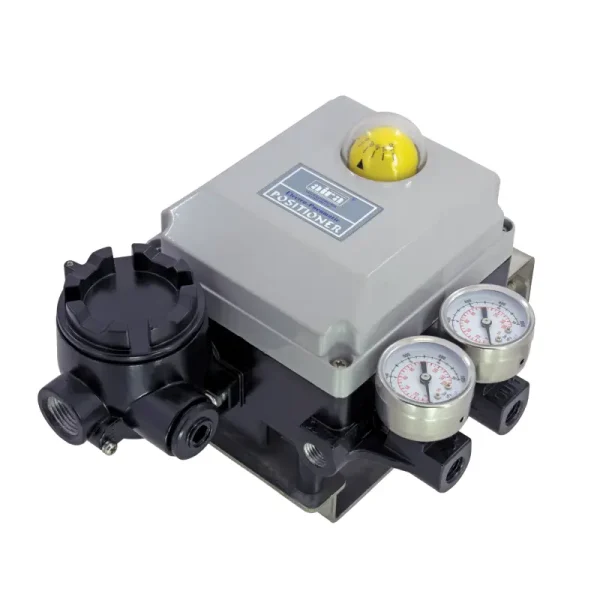

Electro Pneumatic

Rotary Valve Positioner

Features & Benefits

1 – Designed As Block Build Structure For Maintenance And Repair

2 – Precise Calibration With Simple SPAN And ZERO Adjustments

3 – Simple Conversion To Direct Acting Or Reverse Acting

4 – Split Range Control Available By Simple Adjustments Without Changing Parts

5 – Simple Structure For Feedback Connection

6 – Corrosion – Resistant Alluminium Die Cast Body

7 – Sensitive Response For High Performance

8 – Vibration Resistant Design

9 – Stainless Steel Gauge Standard

10 – A Restricted Pilot Valve Orifice Kit For Small Actuators Included

11 – Optional Built – In Limit Switched or 4 – 20 mA Position Transmitter For Feedback

12 – Optional Directly – Mountable Positioner

13 – Proved The Reliability Through Over 5,00,000 Times Of Repeat Test & Vibration Test

We Aira Euro Automation is a prominent industrial valve manufacturer, exporter and supplier based in India. Along with various kinds of valves, we also manufacture electro pneumatic valve positioners. These positioners are helpful in adjusting the valve on its desired set point.

The AEP-1000-L / AEP-1000-R model electro pneumatic positioner requires a 4~20mA DC Input Signal and 20~100 psi Maximum Supply Air Pressure. It has a 10~80mm Standard Stroke and ¼” NPT Air piping connection with IP 66 Degree of protection. The ambient temperature of the pneumatic positioner is from -20°C to 70°C available for Linear or rotary motion. We made it from Aluminium Die Cast body material, available with ½” NPT Conduit Connection.

How to Use a Pneumatic Positioner?
The valve positioner is fitted next to the valve on the working line. When it requires an opening of the valve for some amount or angle, the operator sends signals to the valve positioner according to the requirement and then the valve positioner translates that signal into the required valve position and allows the pneumatic air of the valve actuator to move the valve to its directed position.

What is the use of the Electro Pneumatic Valve Positioner?
The valve positioner determines the valve’s action. When the positioner receives electronic signals to open or close the valve, either fully or partially, the positioner performs that action with the help of pneumatic air. These electronic signals may vary as per the situation.

Quality and Testing of Electro Pneumatic Positioner
From the last 3 decades, Aira Euro Automation has constantly served the valve industry with modern technologies and the safest industrial products. We have a separate quality department where we always test and check each product before the delivery.
