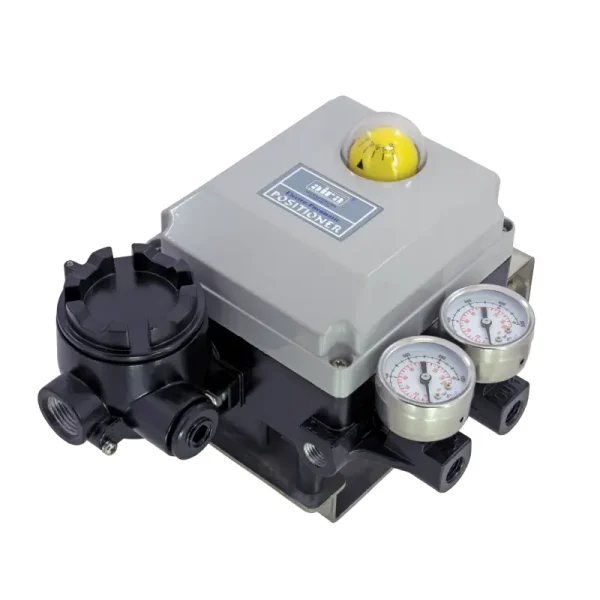

“aira” AEP – 1000 – R/L Series Electro – Pneumatic Are Used As Final Controlling Element For Operation Of Pneumatic Rotary / Linear Valve Actuators In Correspondence With An Input Signal Of 4 – 20mA DC Or Split Ranges The Positioners Are Based On A Force Balance Design For Control Application That Requires A High Degree Of Reliability And Repeatability At An Economical Cost The Positioners Can Handle The Supply Pressure Up To 100 Psig For Higher Pressure Industrial Pneumatic Ans Process Control System Requirements
Specification & Standard
Size Range
As Per Standard
Ambient Temperature
-20° to 70° C
Supply Air Pressure
20~100 psi Max. (7.0 kgf/cm²)
Model
AEP-1000-L / AEP-1000-R
Out Put Characteristics
Rotary
Air Piping Connection
1/4” NPT
Explosion Proof Classification
Exia II BT6,Exdm II CT6
Degree of Protection
IP 66
Material
Aluminium Die Cast Body
Standard Stroke
10~80mm
Features & Benefits
1 – Designed As Block Build Structure For Maintenance And Repair
2 – Precise Calibration With Simple SPAN And ZERO Adjustments
3 – Simple Conversion To Direct Acting Or Reverse Acting
4 – Split Range Control Available By Simple Adjustments Without Changing Parts
5 – Simple Structure For Feedback Connection
6 – Corrosion – Resistant Alluminium Die Cast Body
7 – Sensitive Response For High Performance
8 – Vibration Resistant Design
9 – Stainless Steel Gauge Standard
10 – A Restricted Pilot Valve Orifice Kit For Small Actuators Included
11 – Optional Built – In Limit Switched or 4 – 20 mA Position Transmitter For Feedback
12 – Optional Directly – Mountable Positioner
13 – Proved The Reliability Through Over 5,00,000 Times Of Repeat Test & Vibration Test
Get in touch with our team at +91 9099477256 to receive the Dimension Table
