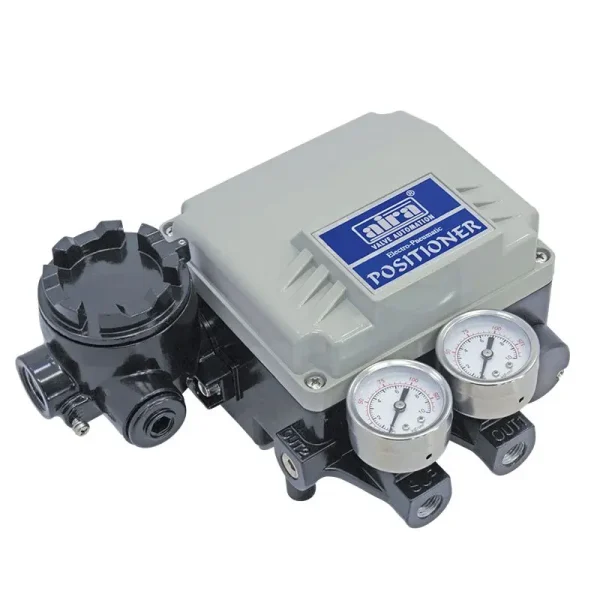

aira Pneumatic – Pneumatic Positioner ( 3-15 Pst / Rotary Off Linear Type ) Are Advanced Control Devices Which Provide Unparalleled Stability In Difficult Environment Electro – Pneumatic Positioner Is Used For Operation Of Pneumatic Multiple Springs Diaphragm Actuators By Means Of Electrical Or Control System With An Output Signal Of DC 4 – 20 mA Or Split Rages
Specification & Standard
Working Pressure
1.4~7 Kgf/cm² (20~100psi)
Input Signal
4~20 mA DC
Standard Stroke
10~50mm
Air Piping Connection
PT (NPT) 1/4
Explosion Proof Classification
Exia II BT6,Exdm II CT6
Degree of Protection
IP 66
Out Put Characteristics
Linear
Material
Aluminium alloy
Conduit Connection
1/2” PF
Gauge Connection
PT (NPT) 1/8
Features & Benefits
1 – CE, CIMFR, BIS, ISI, ISO Certified, Approved
2 – It Is Connected With Diaphragm Actuator Directly Without Air Pipe, And Can Be Mounted The Filter Regulator On
3 – Sturdy, Tubeless And Vibration Resistant Design
4 – There Is On Resonance At 5-200Hz
5 – The Change Of RA/DA Acting Is Convenient. It Is Able To Apply To Single Or Double Acting Actuator
6 – It Is Possible To Prevent The Hunting With Orifice To The Small Size Actuator
7 – It Is Economical Due To Less Air Consumption
8 – It Is Able To Control The ½ Split Range With Simple Operation With Replacement Of Parts
Get in touch with our team at +91 9099477256 to receive the Dimension Table
