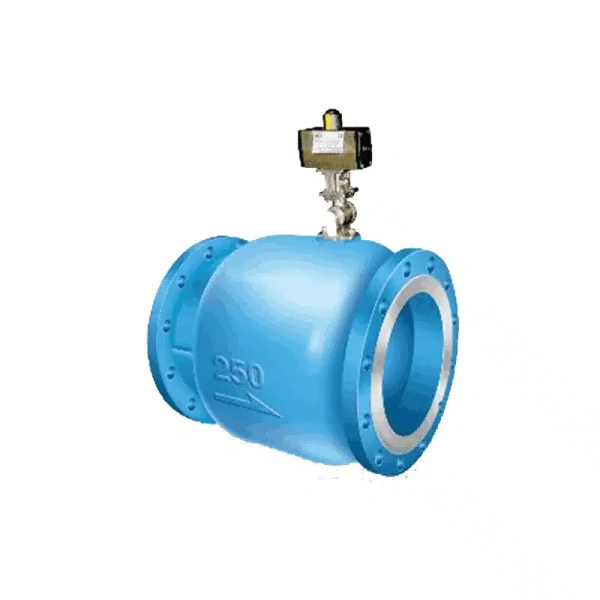

“aira” Offers Multi Function Pneumatic Drum Type Control Valve Can Be Used As Isolating Valve And Also For Flow Controlling Application Special Design Namur Style Ball Valve Mounted On Main Valve, Couple With Pneumatic Actuators Operation Its Simple Technique And Heavy Duty Design Impact A Unique Stands Against Other Control Valve High Flow Factor And Simple Pilot Control Makes Its Very User Friendly.
Specification & Standard
Size Range
50MM To 600MM Flanged End
Temprature
80 °C (For Water), 180 °C (For Steam
End Connection
Flanged End
Body Material
WCB / C.I. / CF8 / CF8M
Piston
Stainless Steel 304 / 316
Seals Material
NBR / Viton / EPDM
Features & Benefits
1 – Exclusive Smart Design For Big Size & Cross Country Water Line Projects
2 – High Cv Value, With Low Pressure Hammering
3 – Choice Of Operating Control Available In Pneumatic Actuator Like On Off / Modulating / On – Off With Feedback
4 – On – Off & Proportionate Control Having Input Single Of 4 ~ 20mA Available In Pneumatic Actuator
5 – Precise Pressure Control And Repeatability Can Be Achieved For Proportionate Control Application
Drum
Valve

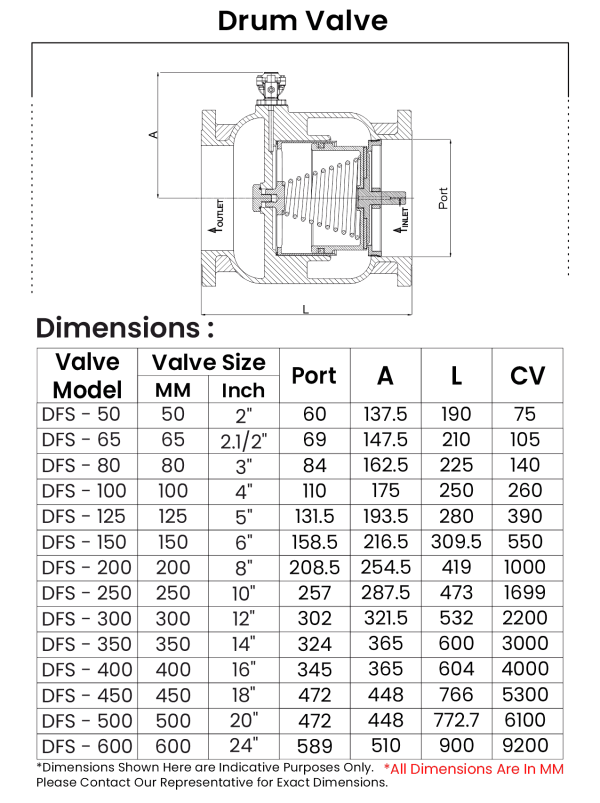

Dimension Table
Drum
Valve
Dimension Table
