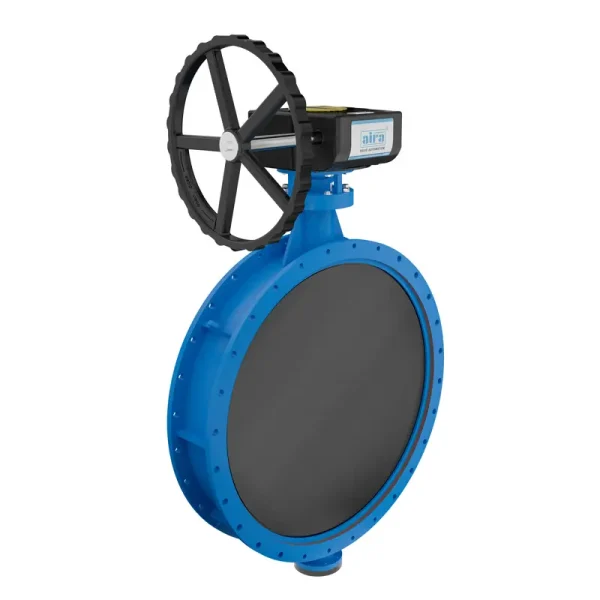

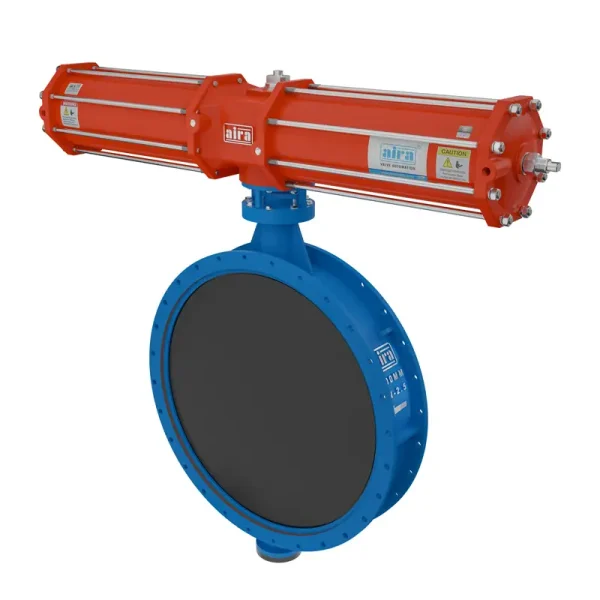

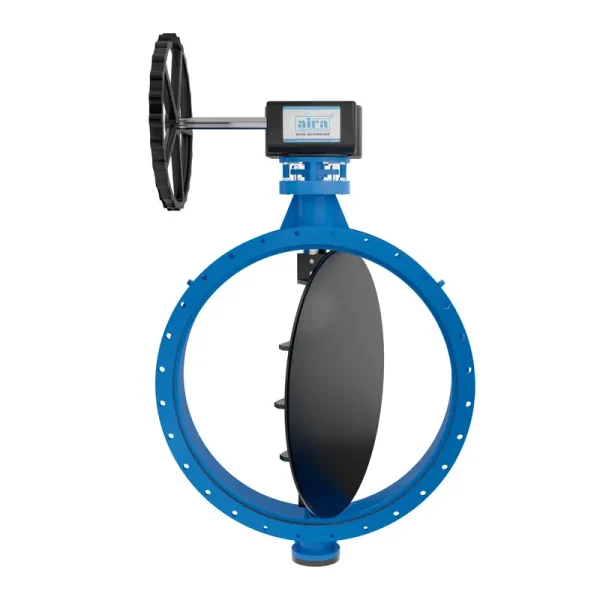

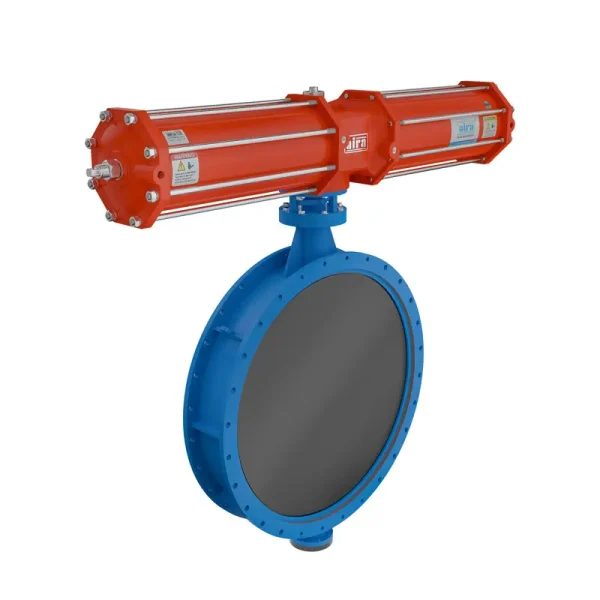

Double Offset Damper Butterfly Valve

Inquiry Now

Approvals

“aira” Offers Double Offset Damper Butterfly Valve is designed for precise flow control in high-demand applications. Featuring a double offset design, this valve minimizes friction and enhances sealing performance. Ideal for managing airflow and handling various industrial processes, it ensures reliable operation and durability.

Specification & Standard

Size Range

12" To 140" (300MM To 3500MM)

Tempreature Range

Upto 600°C

Pressurre Class

PN 6

Shutoff Rating

Leakage Class - 4

Body Style

Double Flanged

Flange Drilling

AWWA C - 504 / 516, EN 1092-1, EN 1092-2, 150# Series-A, Series-B

Body Materials

M.S / SS 304 / 316

Stem Materials

SS 410 / SS 420 / SS304 / SS 316 / 17-4 PH / NITRONIC - 50 / DUPLEX. 2205 / 2507

Disc Materials

M.S / SS 304 / 316

Design Standard

API 609 / BS - 592 / AWWA C - 504 / 516

Testing Standard

API 598 / EN - 12266-1 / AWWA C - 504

Face To Face

API - 609 / BSEN 558 / AWWA C 504 / 516 / MSS - SP - 68

Features & Benefits

1 – Double Offset Design: Reduces friction and wear, ensuring smooth operation and extended valve life.

2 – Precise Flow Control: Optimized for accurate regulation of airflow and fluid handling.

3 – Durable Construction: Built to withstand high-pressure and demanding industrial conditions.

4 – Enhanced Sealing: Provides a reliable seal to minimize leakage and improve performance.

5 – Versatile Application: Suitable for various industrial processes and HVAC systems.

6 – Low Maintenance: Designed for long-term reliability with minimal upkeep.

Direct Mounting As Per ISO 5211

Double Offset

Damper Butterfly Valve

Dimension Table

Double Offset

Damper Butterfly Valve

Dimension Table

ADDONS

Locking Arrangement

Extended Shaft
