“aira” Offers Double-offset wafer type butterfly valve ( resilient-seated ), available with long or short face – to – face length for use in most common flow control applications. Long service life, as the media does not come into contact with the bearing, and due to the wear – resistant, corrosion and infiltration-proof seat with weld overlay. Suitable for use water distribution, water treatment, pre – treated waste water, dams, power plants, industry and pressure management.
API 609 CATEGORY "B" / MSS SP - 68 BS EN - 593
API 609 CATEGORY "B"/ ISO 5752 MSS SP - 68 / BS EN - 558
ASME / ANSI B 16.5 Class 150 ASME / ANSI B 16.47 Series "A & "B" Class 150 / DIN 1092 - 1
API 598 / BS EN 12266 - 1 / AWWA C 504 / AWWA C 516 / IS 13095
ASME B 16.34
Bolt Hole ISO 5211
Square Drive To ISO 5211
Class VI As Per ANSI B 16, 16. 104 / FCI-70 -2, ISO - 5208
Wafer Type - D/F- AWWA C 504 D/F - IS 13095 - 150#, 300#, 600#, PN-10 PN-16 PN-20 PN-25
Design CE Approved, SIL3 Approved, Fire Safe Design Approved
2.1/2" To 48" ( 65 MM To 1200 MM )
NBR -10°C To + 90°C EPDM -20°C To + 120°C VITON -0°C To + 220°C PTFE -25°C To + 180°C
150#, 300#, 600# PN-10 PN-16 PN-20 PN-25
Water, Oil, Steam, Air, Gas Chemical & Vaccum
Class VI As Per ANSI B16.104
CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20
CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20
EPDM / NBR / VITON
API 609 / IS : 13095 / BSEN 593 / AWWA C 504 / AWWA C 516
ASME B16.5 / 16.47 Class 150.

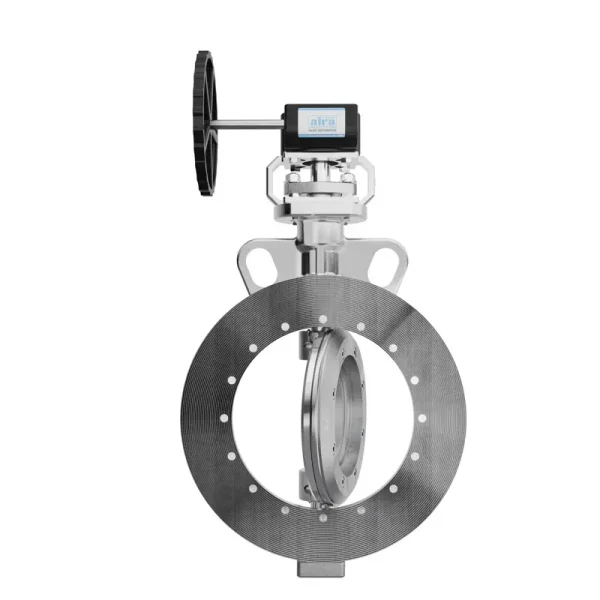

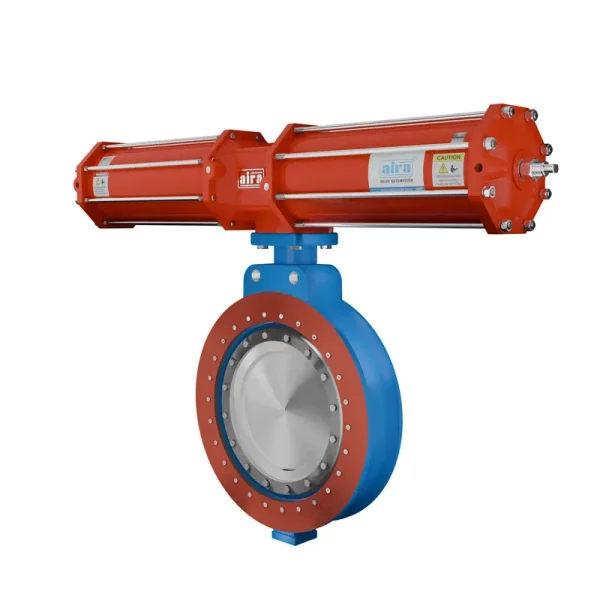

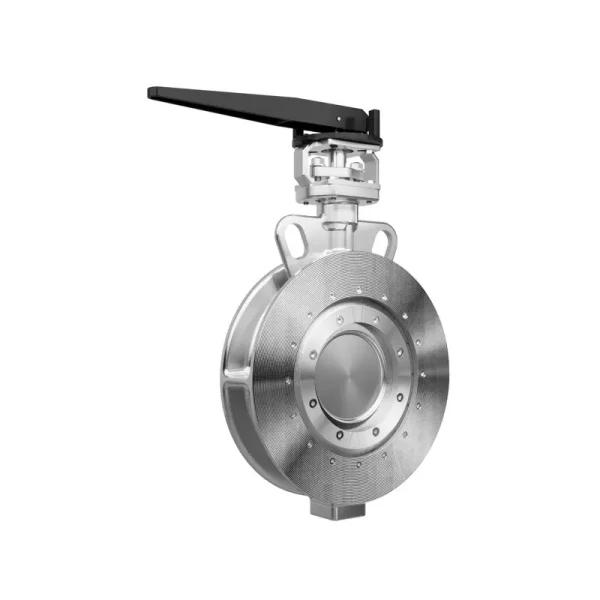

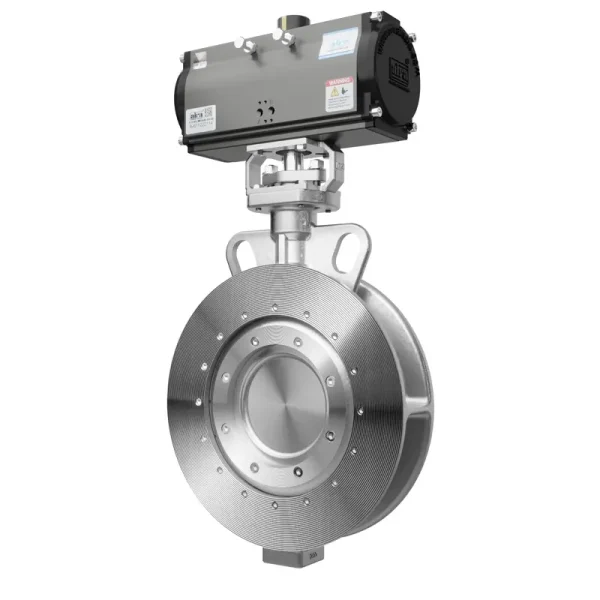

The aira Double Offset Disc Wafer Type Butterfly Valve is designed for precision and reliability in various industrial applications.
1 – Double Offset Design: Provides enhanced sealing performance and reduced wear, ensuring a tight shut-off and long service life.
2 – Disc Configuration: Features a unique disc design that minimizes friction and torque requirements, improving operational efficiency.
3 – Wafer Style: Compact and lightweight design for easy installation between flanges and space-saving in piping systems.
4 – Durable Construction: Constructed from high-quality materials to withstand harsh conditions and high pressures.
5 – Versatile Use: Suitable for applications in water treatment, chemical processing, HVAC systems, and more.
Fire Safe Design
Direct Mounting As Per ISO 5211
