Double Acting

Pneumatic Diaphragm Valve

Size Range
1/2" To 4"
Temperature Range
Upto 80°C
Working Pressure
Upto 5 Kg/Cm²
Inquiry Now

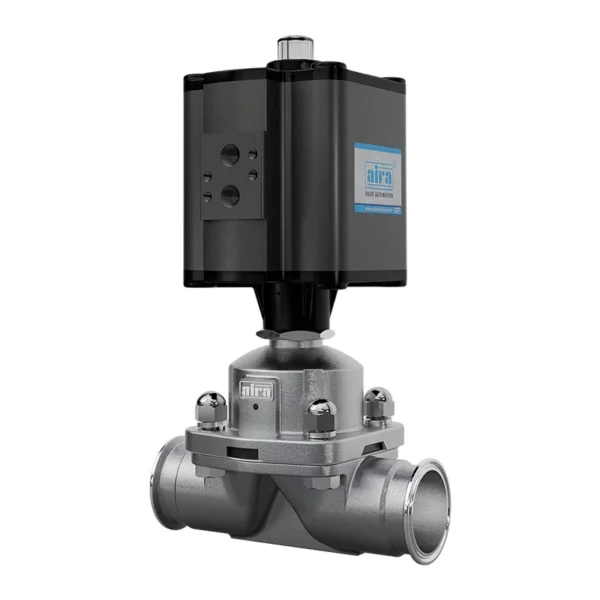

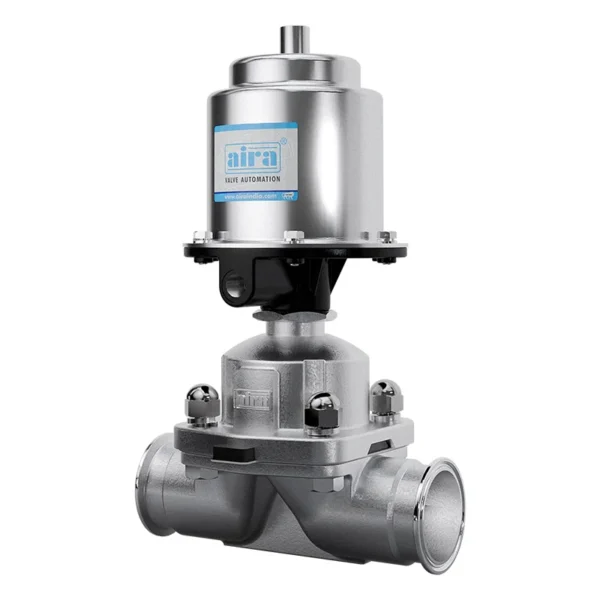

Double Acting Pneumatic Diaphragm Valve

Size Range
1/2" To 4"
Temperature Range
Upto 80°C
Working Pressure
Upto 5 Kg/Cm²
Inquiry Now

Approvals

“aira” Offers diaphragm valve are primarily used in sterile applications in the pharmaceutical, food & biotechnology industries.

Specification & Standard

Size Range

1/2" To 4"

Temprature Range

Upto 80°C

Pressure Class

Upto 5 Kg/Cm²

End Connection

TC End

Seals Material

Rubber / Teflon

Features & Benefits

1 – Double Acting: Provides both opening and closing functions for precise control.

2 – Diaphragm Mechanism: Uses a diaphragm for smooth and reliable operation.

3 – Pneumatic Operation: Operated by compressed air for efficient control.

4 – Durable Construction: Made from high-quality materials for long-term performance.

5 – Compact Design: Space-saving and easy to integrate into various systems.

Direct Mounting As Per ISO 5211

Double Acting

Pneumatic Diaphragm Valve

Dimension Table

Double Acting

Pneumatic Diaphragm Valve

Dimension Table
