Approvals

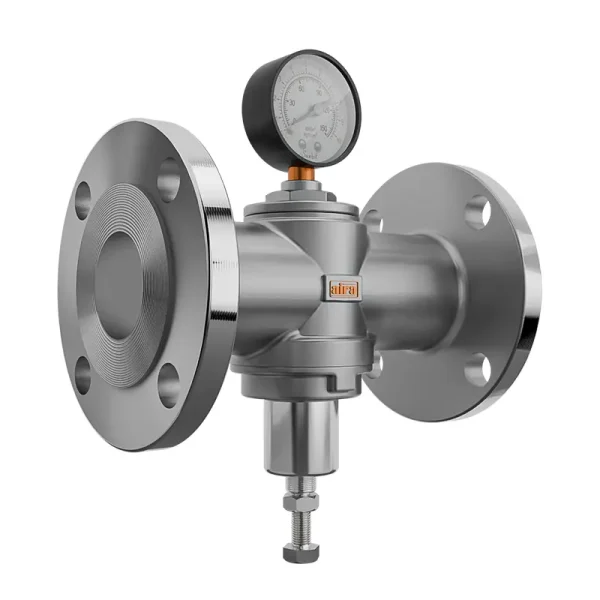

“aira” Direct Activated Pressure Reducing Valve efficiently regulates and maintains downstream pressure in fluid systems. Its direct activation mechanism ensures precise control and reliability. Ideal for various applications, it features durable construction and easy installation, making it a dependable choice for maintaining optimal pressure levels in your system.
Specification & Standard
Size Range
15MM To 100MM
Temperature Range
Upto 85°C
Max. Inlet Pressure
Upto 18 kg/cm²
Pressure Adjusting Range
1 ~ 6 kg/cm² & 4 ~ 10 kg/cm²
Body Style
Globe Type
Flange Drilling
150# / 300#
Body Materials
CF8 / CF8M
Piston Materials
CF8 / CF8M
Seat Materials
NBR
Design Standard
Manufacture - Standard
Testing Standard
Manufacture - Standard
Face To Face
Manufacture - Standard
Applications
Water / Gas / Air & Oil
End Connection
Flanged End
Features & Benefits
1 – Direct Activation Mechanism: Provides precise and responsive pressure control with minimal lag.
2 – Adjustable Pressure Setting: Easily configurable to meet specific system requirements.
3 – Durable Construction: Made from high-quality materials for long-lasting performance and reliability.
4 – Compact Design: Space-saving and suitable for a variety of installation environments.
5 – Easy Installation: Simplifies setup with user-friendly connections and clear instructions.
6 – Stable Performance: Maintains consistent pressure despite fluctuations in input pressure or flow rates.
7 – Low Maintenance: Designed for minimal upkeep, reducing operational costs over time.
8 – Versatile Applications: Suitable for various industries including water, oil, and gas systems.
Get in touch with our team at +91 9099477256 to receive the Dimension Table
