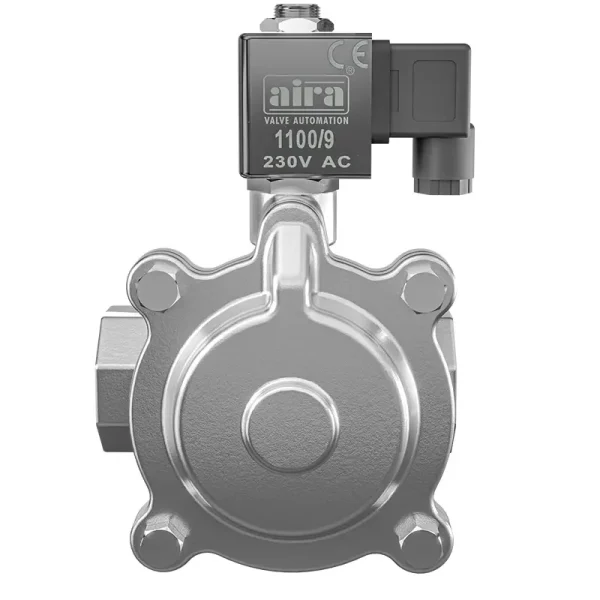

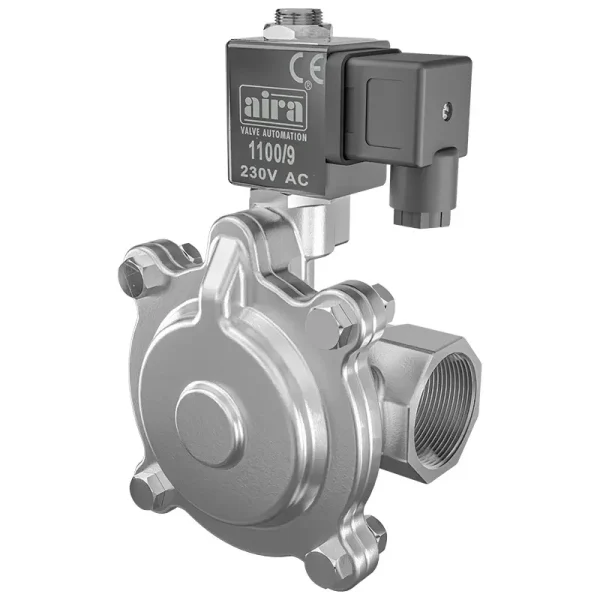

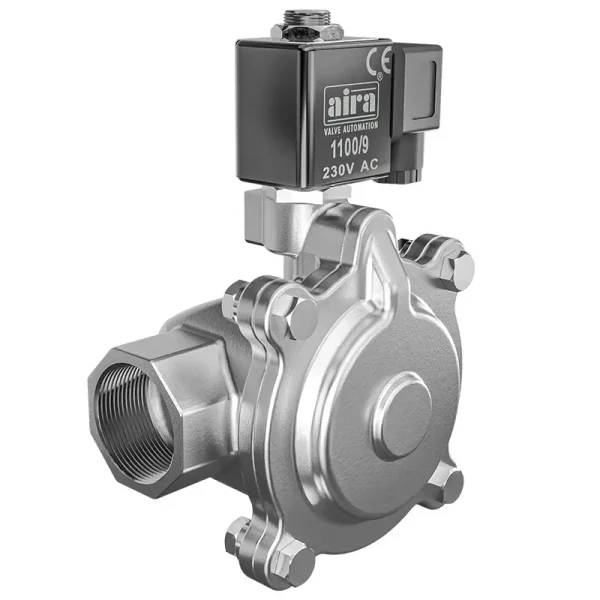

2-2 Way Pilot Diaphragm Solenoid Valve

Name: 2-2 Way Pilot Diaphragm Solenoid Valve
Brand: Aira Euro

Inquiry Now

Approvals

“aira” Offers HIGH FLOW Diaphragm type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body for multiple and long lasting operations. valves for the inflammable media / environment / Flameproof / Explosion Proof solenoid coil are available in such application.

Specification & Standard

End Connection

Screwed

Size Range

1/2" To 6" Screwed

Tempreature Range

-5°C To 85°C (Upto 120°C On Request)

Pressurre Class

0.5 To 10 BAR

Media

Air / Water / Oil / Gas & Chemical

Body Material

CF8, CF3M, CF8M

Seat Material

NBR, Viton

Certification

Features & Benefits

“aira” Euro Automation is a prominent valve manufacturer in India and we, at Aira Euro, have a wide range of industrial valves including Diaphragm Solenoid Valves and we boast of providing quality products with low maintenance.In this ISD model, Solenoid Valve Diaphragm is made from Nitrile and the body is made from CF8 / CF8M material. It is available in ¼” to 6” sizes with the Screwed end / Flanged End 150# class/tri-clover End Connections. It is made to sustain temperatures from -5°C to 85°C (can lead up to 120°C on demand) and 0.5 to 10 BAR pressure. Solenoid plays a very important role in this product and hence it is searched mostly by the name of the solenoid.The Solenoid coil voltages are 12V, 24V, 48V, 110V, 230V AC/DC, and “F” class Coil Insulation with IP 67 Coil Encloser. This valve comes as a normally open and normally closed position valve. Air, Water, Light oil, Gas, Light Chemicals, etc are the medias suitable for this valve.

Get in touch with our team at +91 9099477256 to receive the Dimension Table
