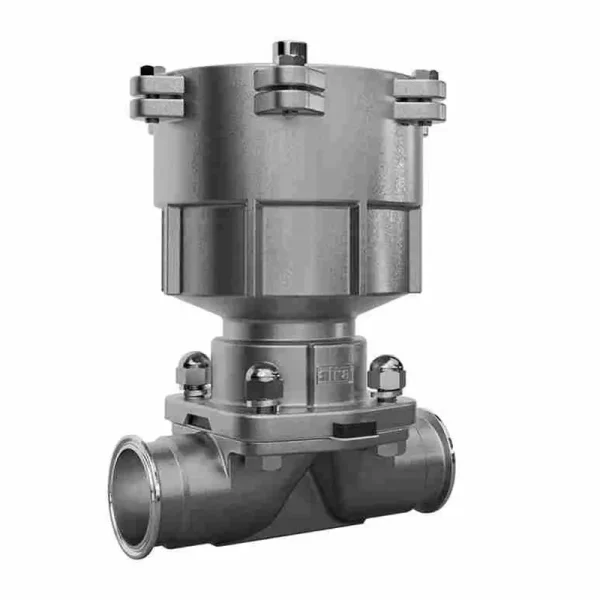

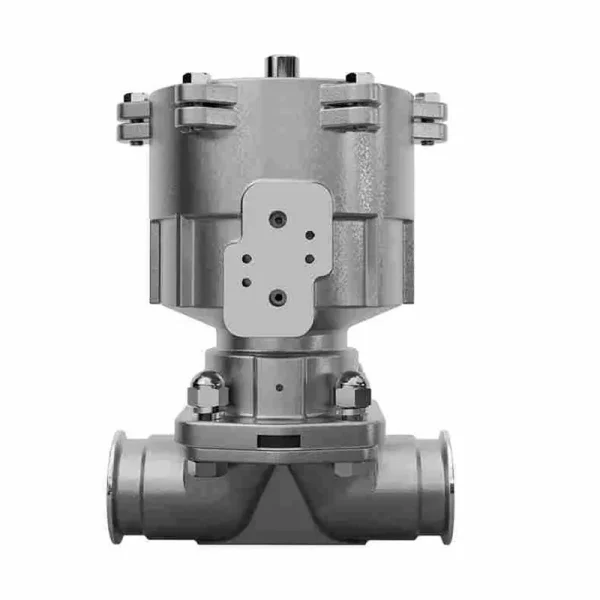

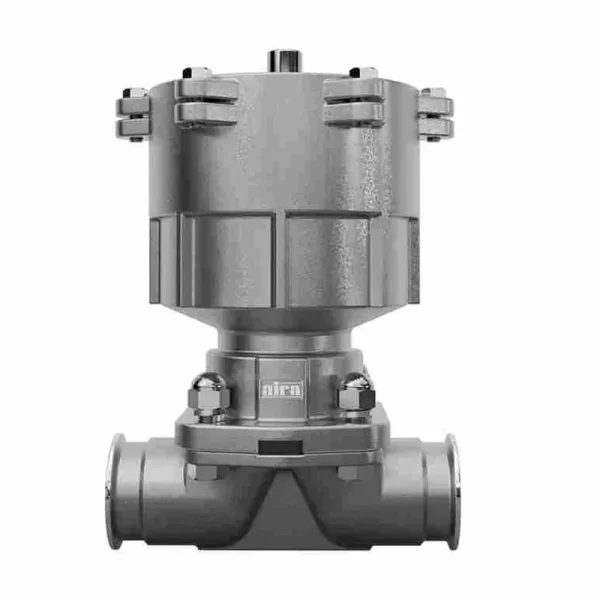

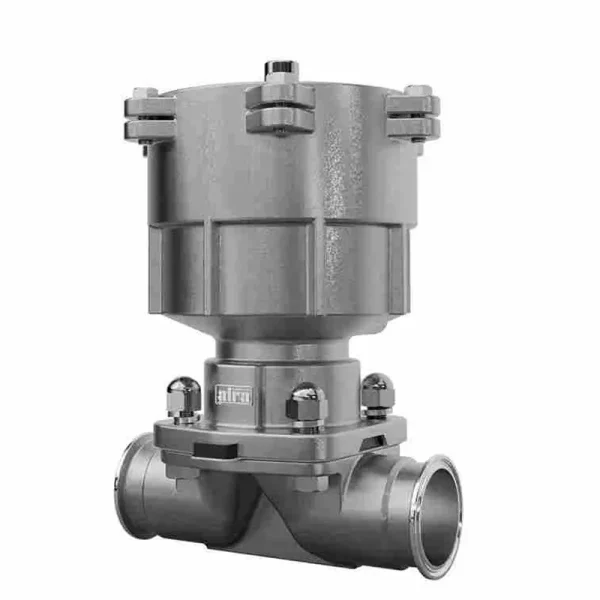

Cylinder Operated Pharma Diaphragm Valve

Inquiry Now

“aira” Offers Pneumatically Operated Diaphragm Valve Hermetically Seated Flow Path in the Body and Bonnet, Proper Selections of Diaphragm Provide, Precision Control of Critical of Ultra Pure Fluids. Fluids are Completely Isolated from the actuator and environment. Hygienic Design, Bi-directional Flow, Body for Low Turbulence. Also for Steam Sterilizing.

Specification & Standard

Size Range

1/2″ to 3″

Pressure

up to 5 Bar

Temperature

up to 80°C

Body

CF8 / CF8M

Actuator Type

Double Acting / Single Acting

Operating Pressure

3.5 to 7 BAR

Bonnet

CF8 / CF8M / CF3M

Diaphragm

NBR

End Connection

Triclover End

Air Connection

1/4″ BSP (NPT On Request)

Features & Benefits

1 – Pneumatic Actuation: Utilizes a pneumatic cylinder for precise, automated control of valve operations, enhancing efficiency and consistency in pharmaceutical processes.

2 – Sanitary Design: Engineered with a smooth, crevice-free surface to meet stringent hygiene standards, facilitating easy cleaning and sterilization.

3 – High-Quality Materials: Made from premium stainless steel (e.g., 316L) to ensure durability, corrosion resistance, and compliance with pharmaceutical industry regulations.

4 – Precise Flow Control: Provides accurate and reliable flow regulation, crucial for maintaining the integrity of pharmaceutical processes.

5 – Leak-Free Performance: Equipped with high-quality seals and gaskets to ensure leak-proof operation and maintain process purity.

6 – User-Friendly Operation: The pneumatic cylinder enables effortless and precise control, reducing manual effort and improving operational reliability.

7 – Easy Maintenance: Designed for quick disassembly and reassembly, allowing for efficient maintenance and minimizing downtime.

8 – Robust Construction: Built to handle the demanding conditions of pharmaceutical environments, offering reliable and consistent performance.
