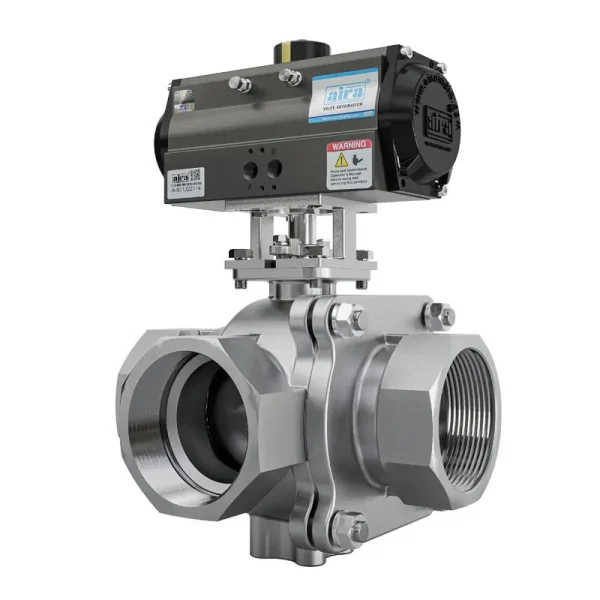

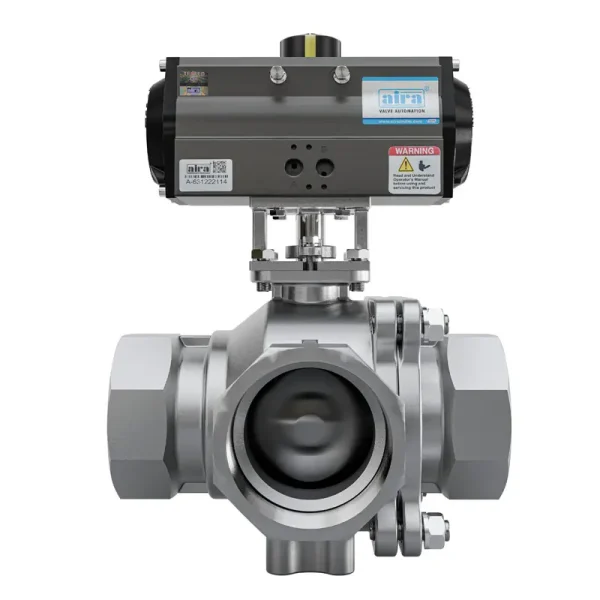

“aira” Offers 5211 Mounting Standard Pneumatic Rotary Actuator Operated 2 Piece Design “C” Way Trunnion Mounted Ball Valve Engineered Multiple On/ Off Operation In The Down Stream. Side Entry 3 Way Ball Valve Offers Diverting And Mixing/ Selection Flow Patterns And Often Eliminates The Need For Two Valves. The T – Port/ L – Port Configuration Is Available As a 2 Piece Design In Two Seat And Four Seat Configuration This Is Extremely Versatile In Various Configurations And The Full Port Design Is Easily Automated As It Comes In And Is Available With Various Seat Material For Various Pressure And Temperature Range. “C Way” Ball Valve Designed For Using In The Several Conditions Such As Like Chemical, Petrochemical, Energy, Plastic, Oil, Gas & Lubrication.
Specification & Standard
Design & Manufacturer
ASME B16.34/ BS EN ISO 17292
Valve Face To Face Dimension
As Per Manufacturing
Inspection And Testing
API 598/ ISO - 5208/ BS EN 12266 - 1
End Connection
ASME B16.5 Class 150 For Screw End
Size Range
1/2" To 3” Screw End 150#
Tempreature Range
-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment
Pressurre Class
150#
Media
Air/ Water/ Oil & Gas
Body Material
WCB, CF3, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON
Ball Material
CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX
Ball Type
Hollow/ Solid Ball
Stem Material
CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH
Seat Material
PTFE, RPTFE, MODIFIED PTFE, AIRA-250
Certification
Design CE Approved, Fire Safe, POD
Features & Benefits
1 – High Performance Ball Valve.
2 – Antistatic Design.
3 – ISO 5211 Mounting Pad Available.
4 – Low Pressure Drop.
5 – Longer Life.
6 – Thousand OF Cycle.
7 – V-Type Cheuron Gland Packing, Which Leads To Zero Leak After.
8 – mixing and diverting.
Fire Safe Design
Anti Static Mechanism
Direct Mounting As Per ISO 5211

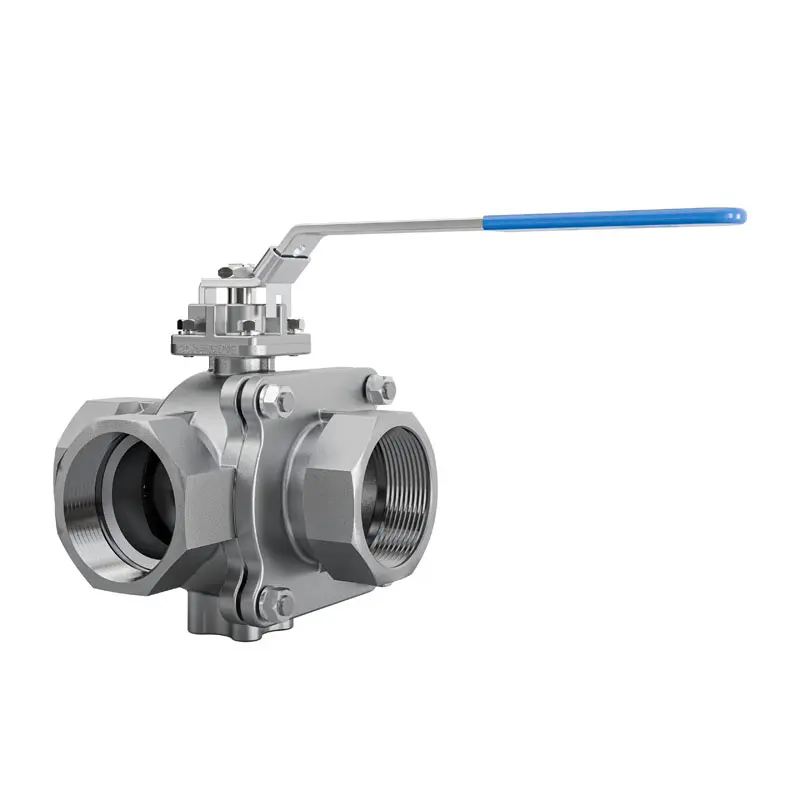

C Way Multi Port
Screwed End Ball Valve
Dimension Table

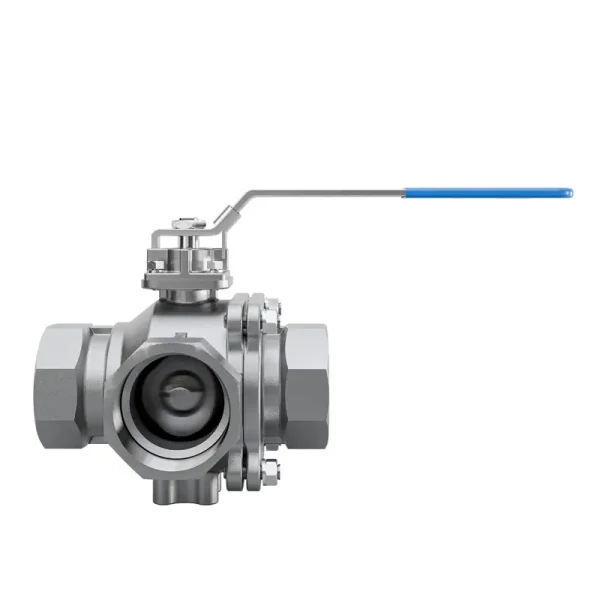

C Way Multi Port
Screwed End Ball Valve
Dimension Table
