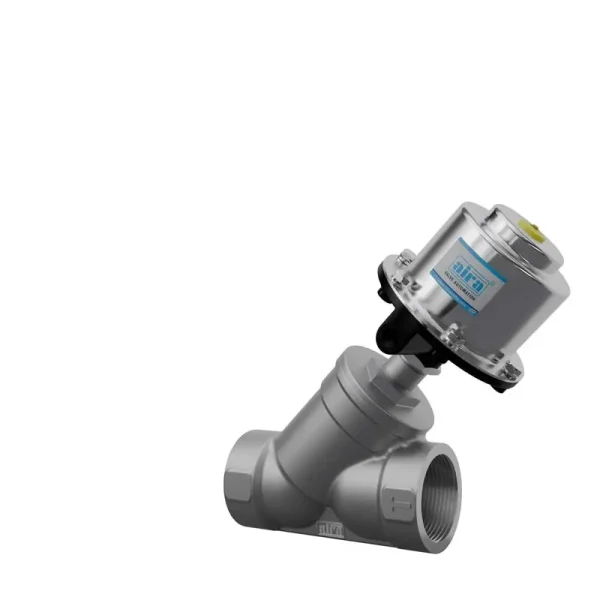

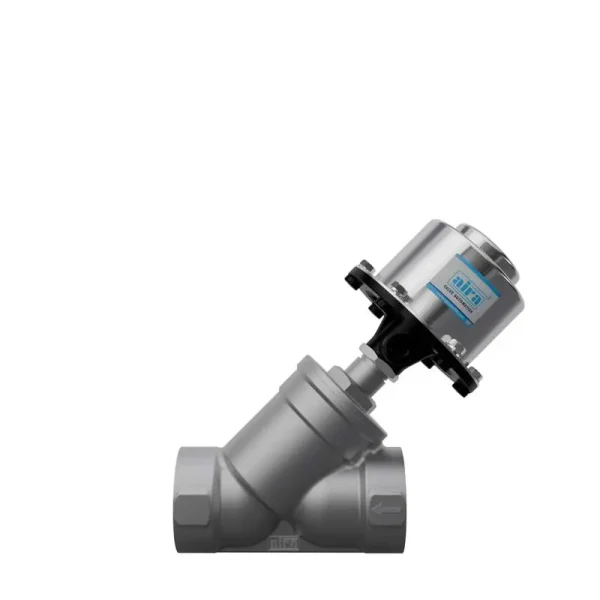

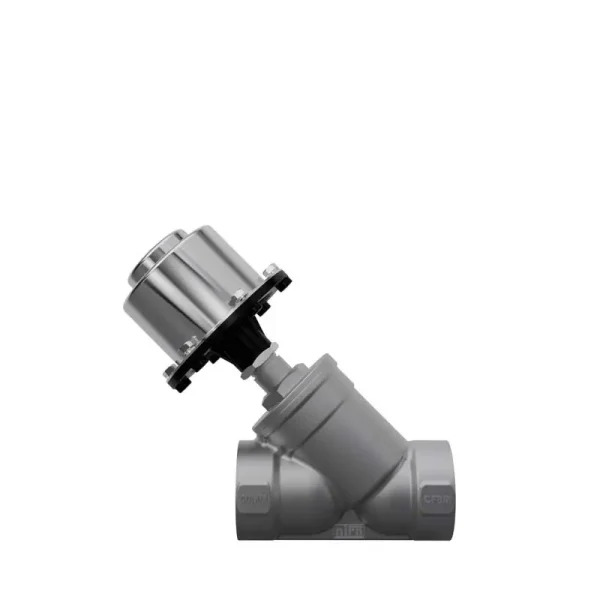

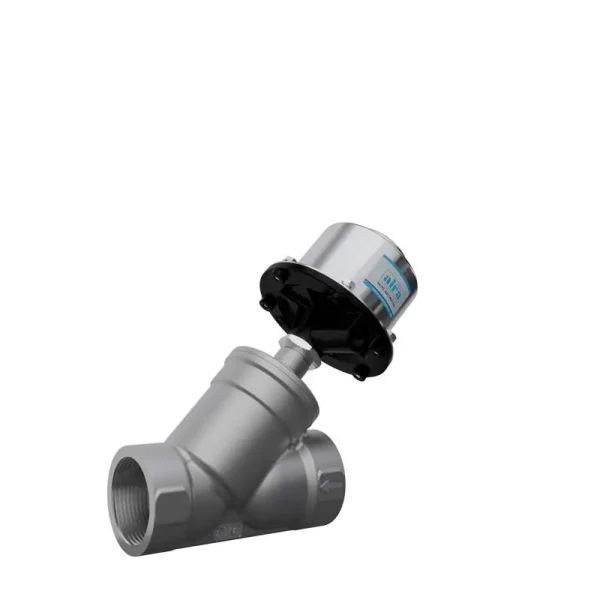

Angle Type SS Cap Screwed Control Valve

Inquiry Now

Approvals

An Angle Type SS Cap Screwed Control Valve is a valve designed for regulating fluid flow at an angle, typically 90 degrees, in pipelines. Made from stainless steel (SS), it offers durability and resistance to corrosion, making it ideal for demanding environments. The screwed connection ensures easy installation and secure sealing. This valve is commonly used in applications requiring precise flow control, such as in chemical, water treatment, and HVAC systems.

Specification & Standard

Size Range

15MM To 80MM

Tempreature Range

PTFE 180°C / CFT 220°C

Pressurre Class

Upto 10 BAR

Shutoff Rating

Tight Shut off

Body Style

Y - Body - Screw End, Flange End, Triclover End

Flange Drilling

150#

Certification

CE Approved

Body Materials

S. S - 304, S. S - 316-L

Stem Materials

S. S - 304

Seat Materials

PTFE, CFT, GFT

Plug Materials

S. S - 304

Design Standard

Manufacture - Standard

Testing Standard

API - S98, PN10

Face To Face

Manufacture - Standard

Leakage

As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight

Applications

Air / Water / Oil / Gas / Steam & Chemical

Features & Benefits

1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features.

2 – Best Choice For Speedy And Multiple Operation.

3 – Due To Angle Shape, Easy To Mount At Congested Place.

4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids.

5 – Full Flow With Negligible Pressure Drop.

We, Aira Euro Automation, are a leading manufacturer and supplier of Pneumatic Single and Double Acting Actuator operated angle type, On/Off Control Valves (N/O & N/C) in India. Having a wide range of pneumatically operated industrial valves, we also export our products to over more than 20 countries.

Our Y Angle type Control Valves are used in Oxygen Applications. If are you going to establish an Oxygen Plant so you required Y type Control Valve for your plant.

This valve is also called the Y type Control Valve or the Y type Pneumatic Control Valve because of its body shape. It is shaped like a Y angled and hence it is also known as an Angle Type Control Valve.

We boast of having 100% in house production from manufacturing to testing as SRT / ASV / SRK / TOF models are available. We use CF8 / CF8M / CF3M casting materials to make the body and the bonnet. The valve can sustain a pressure up to 10 Bar, temperature up to 220°C, and its size availability ranges from ½” to 4”. It has ANSI B 16, 16.104 Leakage Class VI Shutoff tight / Bubble tight Leakage. It comes with Screwed End / Flanged End connections.
