Angle Type

Single & Double Acting TC End Control Valve

Inquiry Now

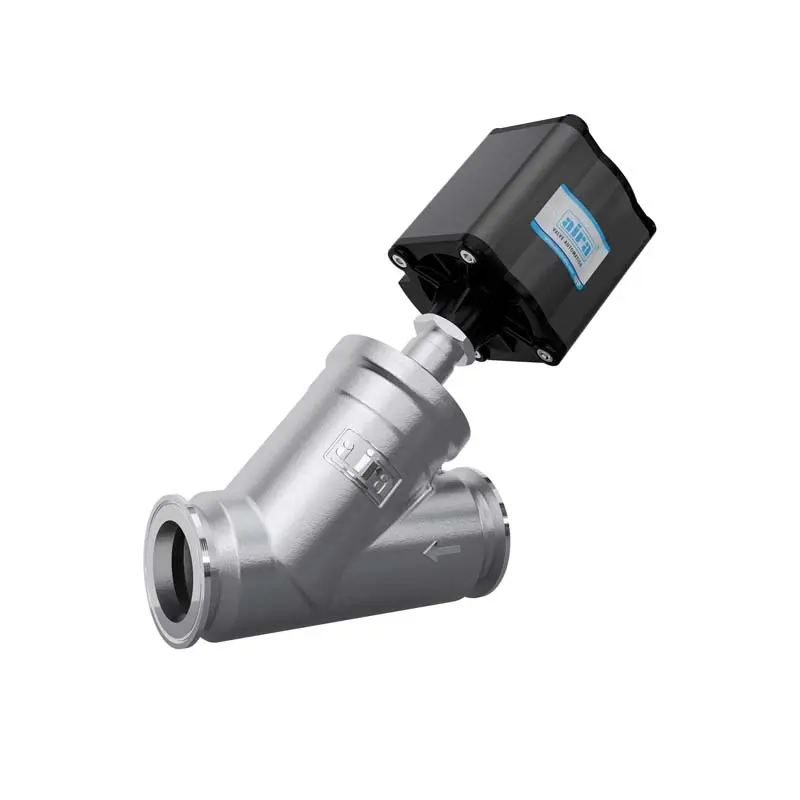

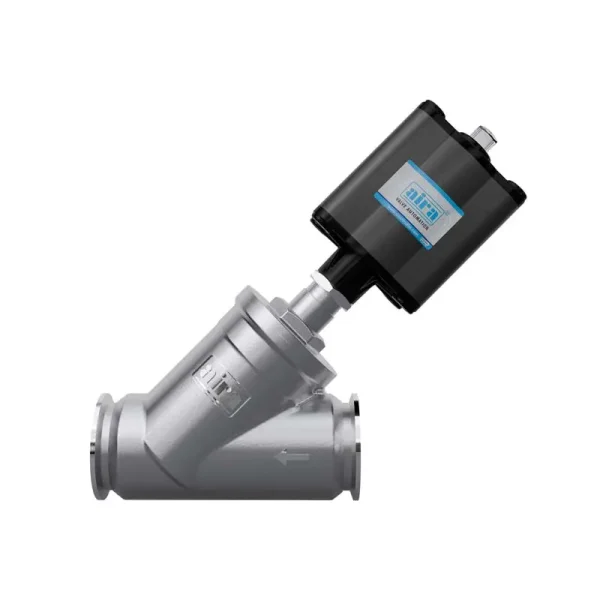

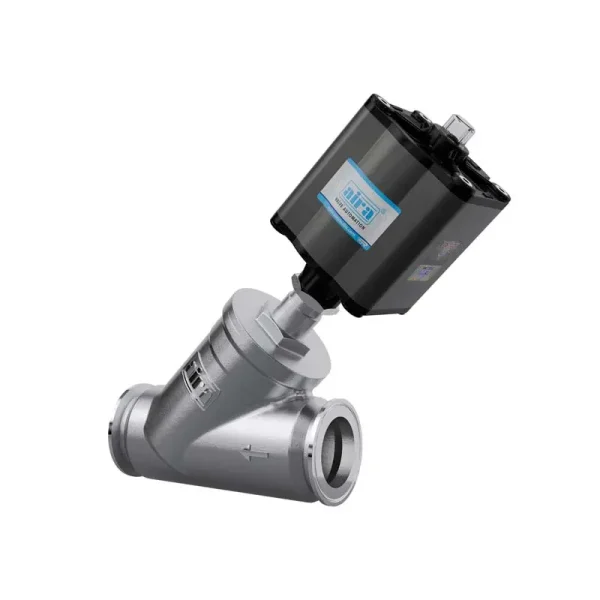

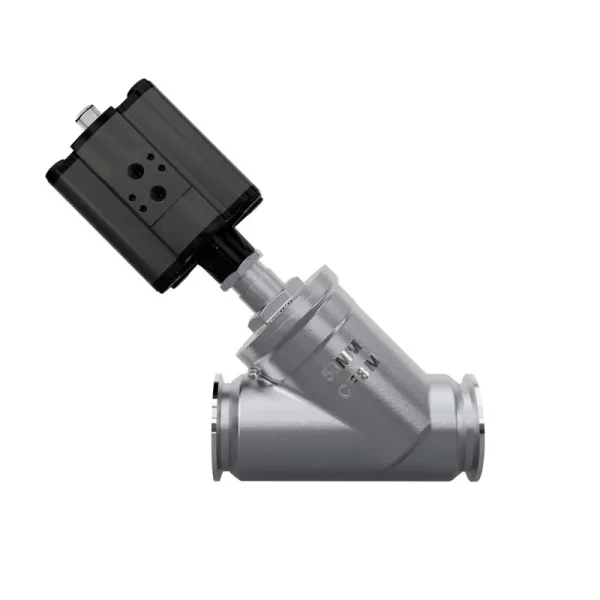

Angle Type Single & Double Acting TC End Control Valve

Inquiry Now

Approvals

“aira” Offers 2/2 Way Pneumatic Actuator Operated Investment Casting Angle Type Controls Valve. It has two working types, Double Acting & Single Acting.

Specification & Standard

Size Range

15MM To 80MM

Tempreature Range

PTFE 180°C / CFT 220°C

Pressurre Class

Upto 10 BAR

Shutoff Rating

Tight Shut off

Body Style

Y - Body - Screw End, Flange End, Triclover End

Flange Drilling

150#

Certification

CE Approved

Body Materials

S. S - 304, S. S - 316-L

Stem Materials

S. S - 304

Seat Materials

PTFE, CFT, GFT

Plug Materials

S. S - 304

Design Standard

Manufacture - Standard

Testing Standard

API - S98, PN10

Face To Face

Manufacture - Standard

Leakage

As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight

Applications

Air / Water / Oil / Gas / Steam & Chemical

Features & Benefits

1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features.

2 – Best Choice For Speedy And Multiple Operation.

3 – Due To Angle Shape, Easy To Mount At Congested Place.

4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids.

5 – Full Flow With Negligible Pressure Drop.

Angle Type

Single & Double Acting TC End Control Valve

Dimension Table

Angle Type

Single & Double Acting TC End Control Valve

Dimension Table
