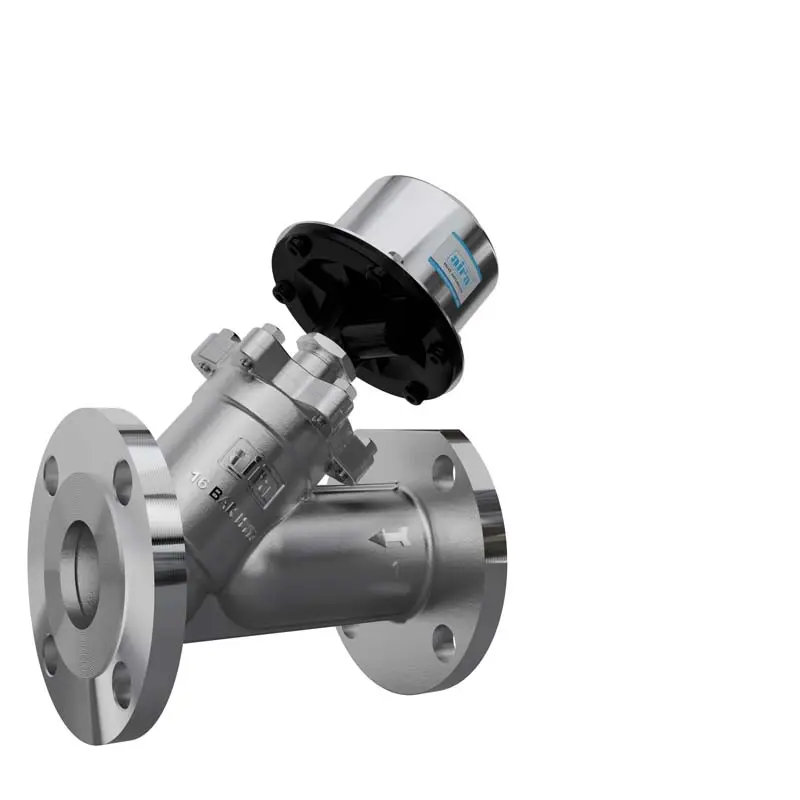

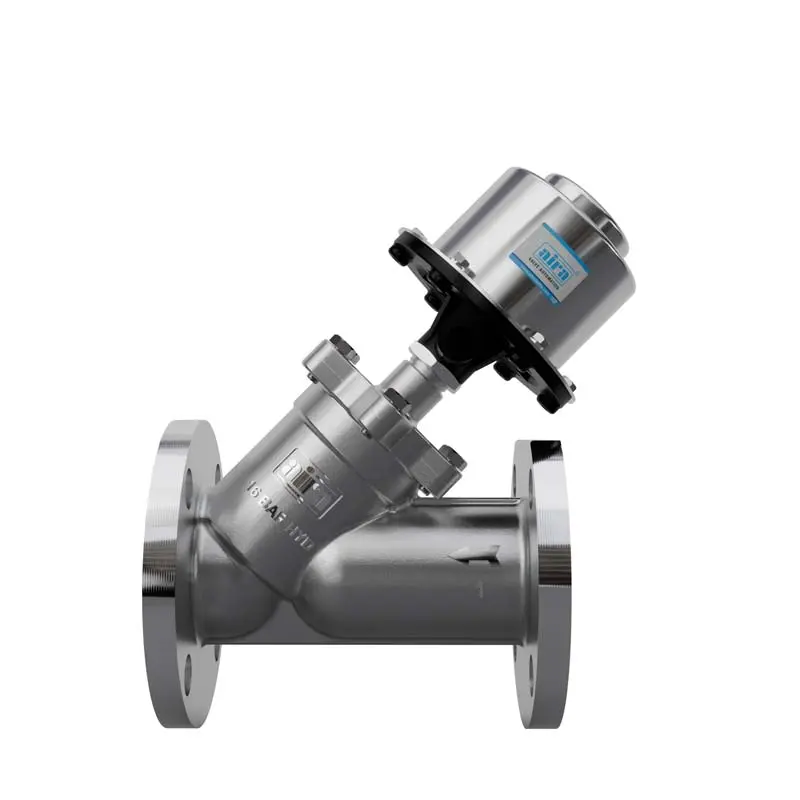

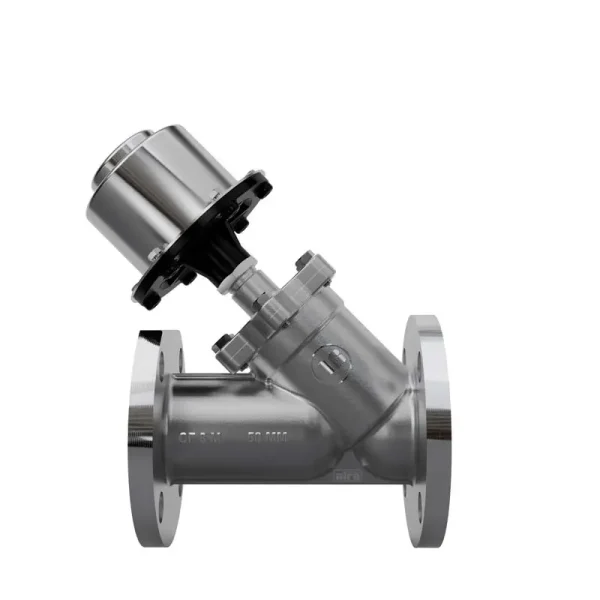

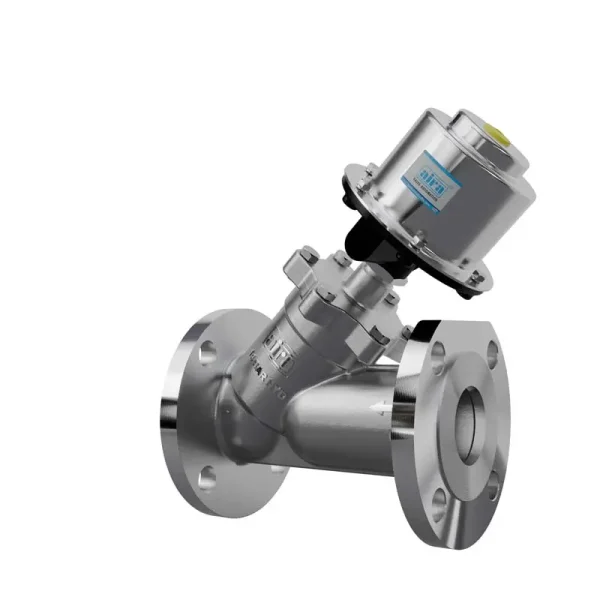

“aira” Offers 2/2 Way Pneumatic Cylinder Operated Investment Casting Angle Type Controls Valve. It has two Working Types, Normally Open & Normally Closed.
15MM To 100MM
PTFE 180°C / CFT 220°C
Upto 10 BAR
Tight Shut off
Y - Body - Screw End, Flange End, Triclover End
150#
CE Approved
S. S - 304, S. S - 316-L
S. S - 304
PTFE, CFT, GFT
S. S - 304
Manufacture - Standard
API - S98, PN10
Manufacture - Standard
As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight
Air / Water / Oil / Gas / Steam & Chemical
1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features.
2 – Best Choice For Speedy And Multiple Operation.
3 – Due To Angle Shape, Easy To Mount At Congested Place.
4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids.
5 – Full Flow With Negligible Pressure Drop.
