5/2 Way Poppet type

Namur Solenoid Valve

Size Range
1/4"
Temperature Range
-20° C To 70° C
Working Pressure
upto 10 BAR
Inquiry Now

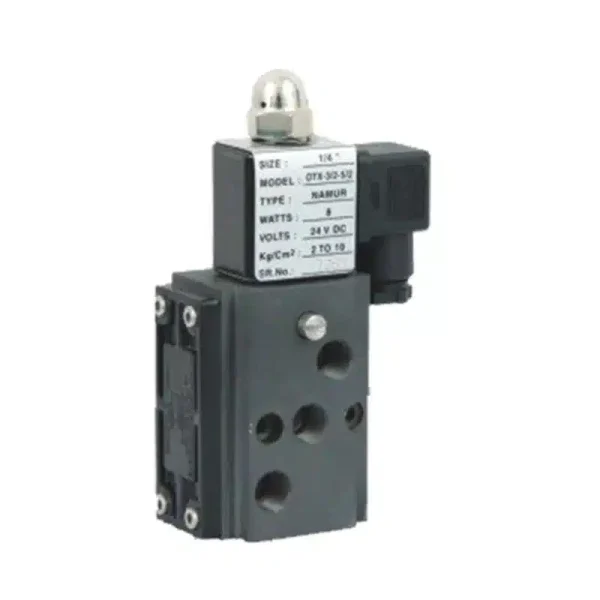

5/2 Way Poppet type Namur Solenoid Valve

Size Range
1/4"
Temperature Range
-20° C To 70° C
Working Pressure
upto 10 BAR
Inquiry Now

“aira” Offers 5/2 Way Convertible Poppet Type Namur Solenoid Valve Opens And Shut By Given Electrical Signals AC Or DC, Outputs Supply Air Pressure To Valve (Actuator) Or Changes The Output Port Direction.

Specification & Standard

Size

1/4

Seals

NBR (Viton On Request)

Working Pressure

upto 10 BAR

Model

OTX-PPT-32 / OTX-PPT-52

Body

Aluminium (SS On Request)

Ambient Temperature

-20° C To 70° C

Features & Benefits

1 – Easy Replacement Of Coil As Both AC And DC Type Use Same Enclosure.

2 – Can Test The Operation In Manual Switch Without Power Source.

3 – High Durability As Valve Body Is Pneumatic Pressure Operating Type.

4 – Can Be Directly Mounted On An Actuator (NAMUR Design).

5 – Ideally Suited For Spring Return Actuator For On / Off Duty Dust Cap Fitted On Exhaust Ports.

6 – Interchangeable Of AC And DC Coils.

7 – Manual Over Ride Switch.

Get in touch with our team at +91 9099477256 to receive the Dimension Table
