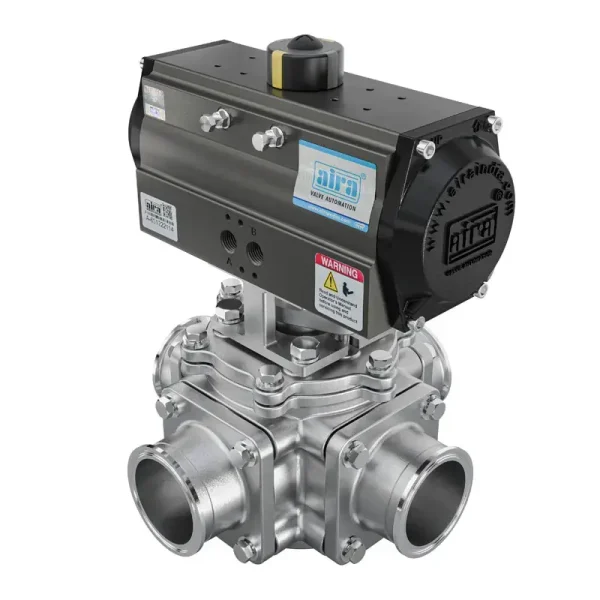

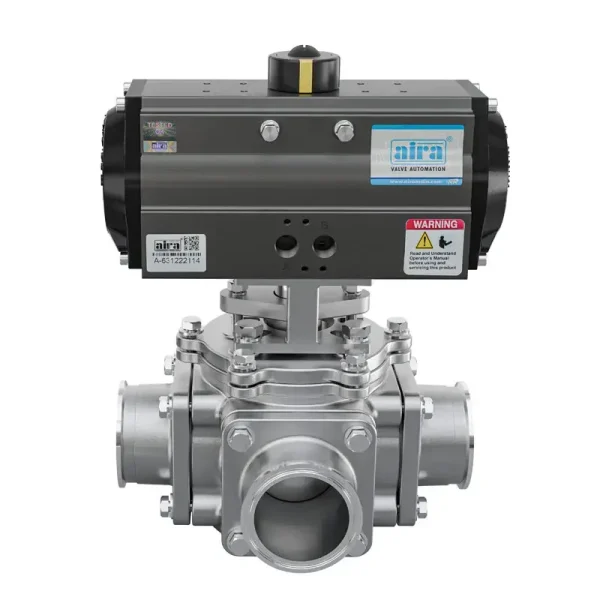

“aira” Offers Pneumatic Rotary Actuator Operated “3,4 & 5 Way” Multi Port Design Investment Casting CF8/ CF8M/ WCB Trunnion Mounted Ball Valve, Engineered For Multiple Diverting/ Mixing Operations In The Down Stream. Type : “T” Port/ “L” Port/ “X” Port In Full Bore/ Reduce Bore.
Specification & Standard
Design & Manufacturer
ASME B16.34 BS/ EN ISO 17292
Valve Face To Face Dimension
As Per Manufacturing
Inspection And Testing
API 598/ ISO-5208/ BS EN 12266-1
Flange Standard Conformity
ASME B16.5 Class 150
End Connection
TC End
Size Range
1/2" To 4" Triclover End
Temperature Range
-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment
Pressurre Class
150#, PN 10
Media
Air/ Water/ Oil & Gas
Body Material
WCB, CF3, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON
Ball Material
CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX
Ball Type
Hollow/ Solid Ball
Stem Material
CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH
Seat Material
PTFE, RPTFE, MODIFIED PTFE, AIRA-250
Certification
Design CE Approved, POD, Fire Safe Design
Features & Benefits
1 – Antistatic Design.
2 – Locking Handle Available.
3 – High Performance Ball Valve.
4 – ISO 5211 Mounting.
5 – Quick In Action.
6 – Blow Outproof Stem.
7 – High Cycle Life.
Fire Safe Design
Anti Static Mechanism
Direct Mounting As Per ISO 5211
4 Way Multi Port

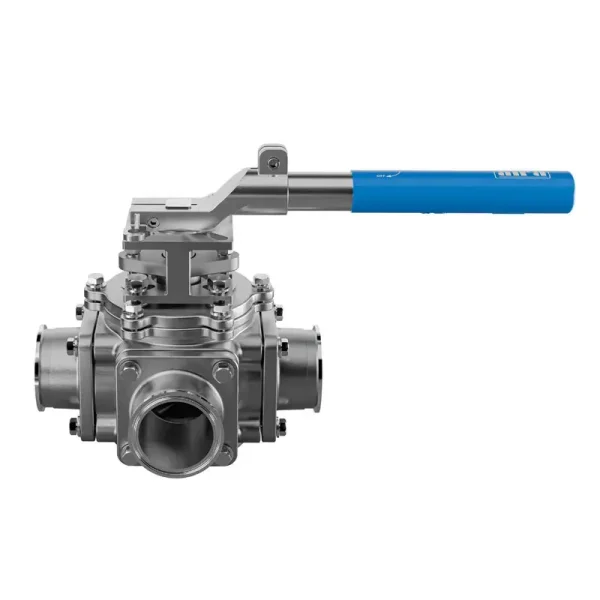

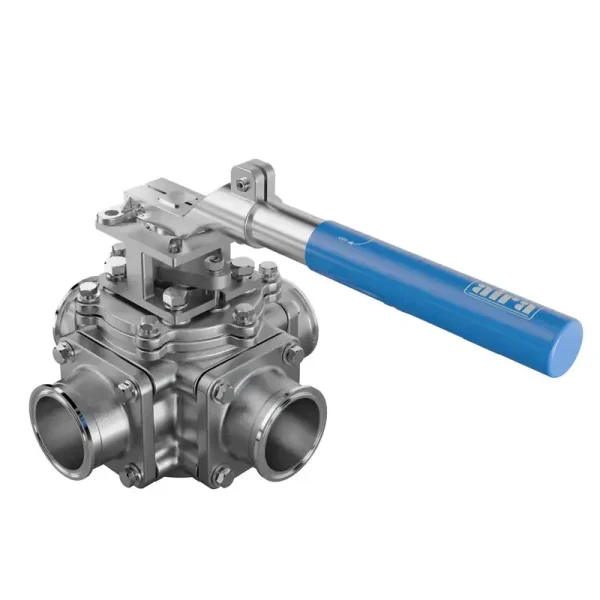

Triclover End Floating Ball Valve
Dimension Table
4 Way Multi Port
Triclover End Floating Ball Valve
Dimension Table
