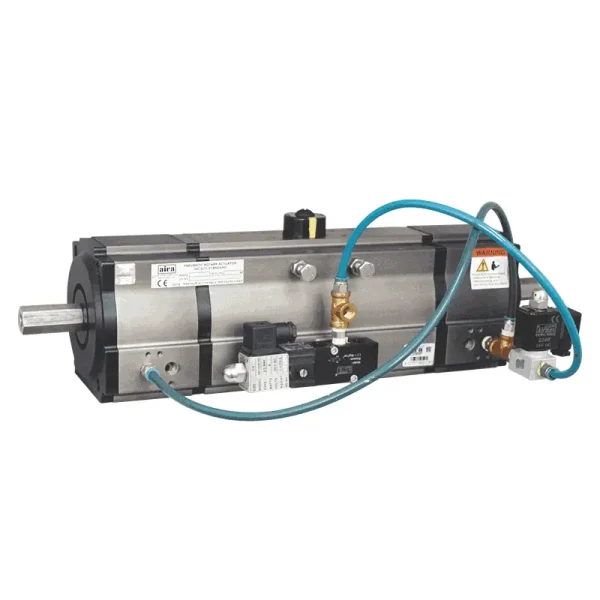

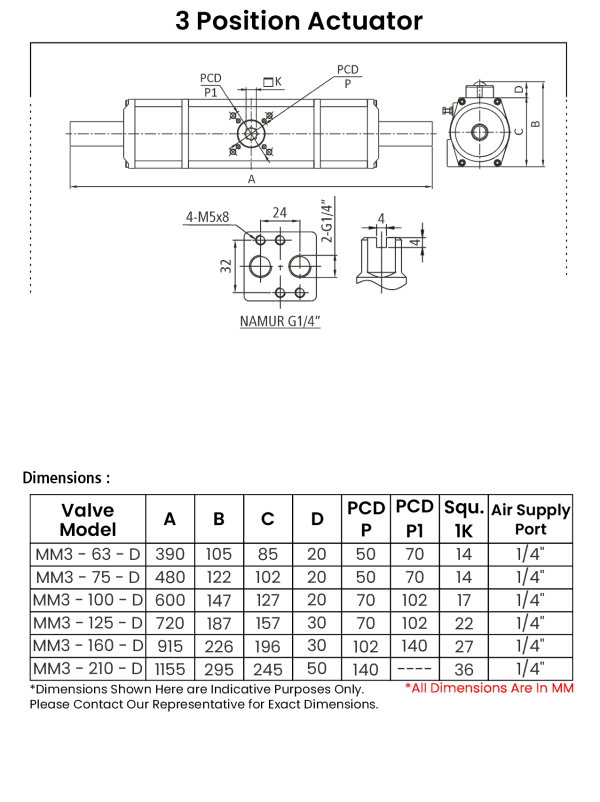

Aira Euro Automation offers a 3 position Pneumatic Rotary Actuator. It provides an operation of 0°, 45°, 90°, or the random travel of the middle position. The middle position is achieved by the mechanical brake. That is caused by the movement of the two auxiliary pistons. This actuator comes with double acting actuation. This three position actuator is suitable for coarse-fine adjustment, typically for batching operations or processes. The repeatability is 100% since stopping is by mechanical stoppers. It is suitable for calling for precise fine-coarse adjustment like a liquid filling system.3 Position Pneumatic Rotary Actuator Torque Chart in Nm & Dimension

The actuator can be switched to one position from any other position very easily with the solenoid control. The third position is achieved by the mechanical stopping of the piston movement, in return stroke by pneumatic stopper pistons. The intermediate position is present at 20% opening. The opening can be adjusted as required by the set screw. This is field adjustable.

The actuator as a standard, works in reverse action, as opposed to conventional configuration i.e. piston inward stroke opens the valve, and piston outward stroke closes the valve. The end stops (-/+10°) are provided on the closing and opening sides of the actuator for setting valve closing precisely.

Specification & Standard

Body Material

Extruded Aluminium Hard Anodized

Air Pressure

Normal Air Supply Pressure: 4KG/CM², AIR SUPPLY PRESSURE: 8KG/CM² MAX

Rotation

90° – Quarter Turn

Seals Material

BUNA – N

Caps And Rack

Aluminium Pressure Die Cast

Features & Benefits

1. Actuator is suitable for coarse – fine adjustment, typically forbatching operations or processes.

2. The Actuator has to be Double Acting.

3. The repeatability is 100% since stopping is by mechanicalstoppers. It is suitable for application calling for the precise fine-coarse adjustment like liquid filling system.

4. The Actuator can be switched to one, position from any otherposition very easily with the solenoid control. The 3rd positionis achieved by the mechanical stopping of the piston movement,in the return stroke by pneumatic stopper pistons.

5. The Intermediate position is present at 20% opening. Theopening can be adjusted as required by the set screw. This is field adjustable.

6. Actuator as a standard, works in reverse action, as opposed toconventional configuration i.e. piston inward stroke opens thevalve, and piston outward stroke closes the valve.

7. The End Stops (+/- 5°) are provided on the closing and openingside of the Actuator for setting valve closing precisely.

8. 5,00,000 Cycles POD.
