3 Piece

Screwed End Ball Valve 800#

Size Range
1/2" To 2" SCREWED/ SOCKET WELD
Temperature Range
Upto 180°C
Working Pressure
Seat - 69 Kg/ cm² @ 39°C
Inquiry Now

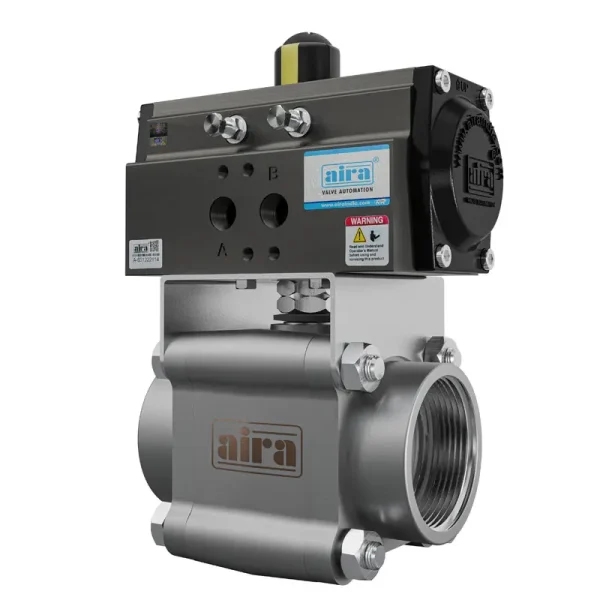

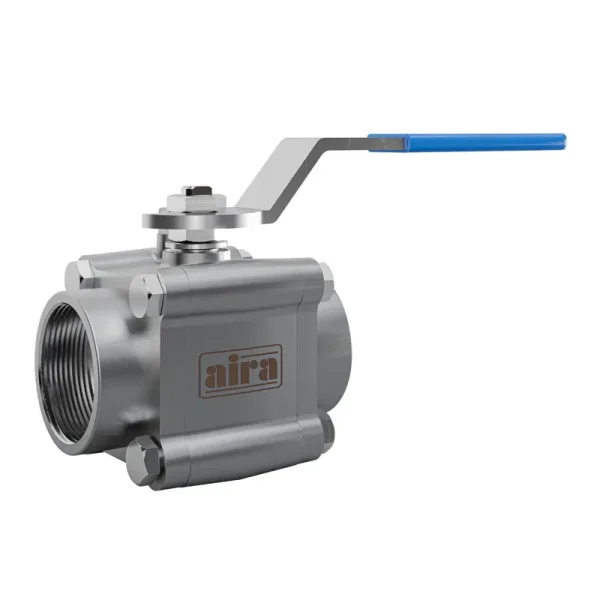

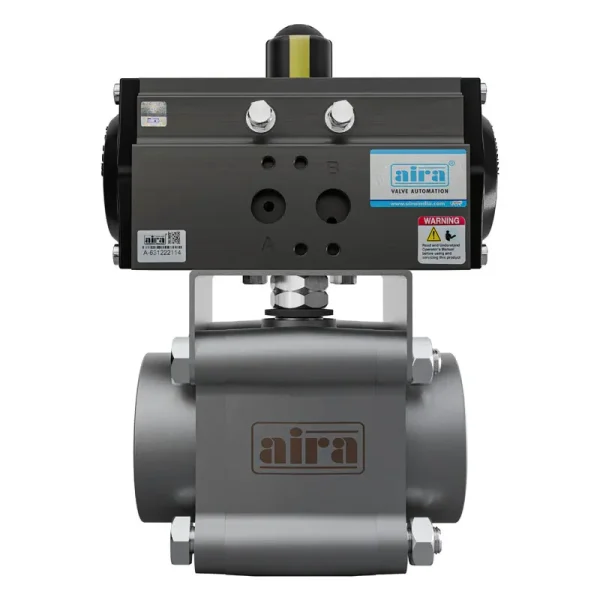

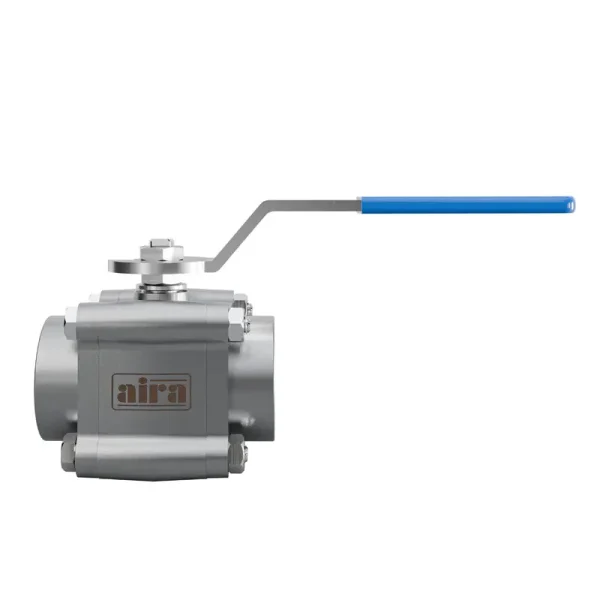

3 Piece Screwed End Ball Valve 800#

Size Range
1/2" To 2" SCREWED/ SOCKET WELD
Temperature Range
Upto 180°C
Working Pressure
Seat - 69 Kg/ cm² @ 39°C
Inquiry Now

Approvals

“aira” Offers Forged Ball Valve An Enviro Friendly Flow-control Solution For Steam Lines. The Valve Offers Significant Saving Of Process Steam Compared To Multi-turn Valve With Rising Stem. It Is Designed To Handle 103 Bar Pressure At 38°C And 5 Bar Pressure At 270°C. The Valve Achieves Bubble-tight Isolation In Steam Lines Leveraging The Time-tested “aira” Ball Valve Design And Special Filled PTFE Seats. The Quarter-turn Valve Is Suited For Quick Closing Services And Can Be Easily Automated To Meet Customer Requirements.

Specification & Standard

Design & Manufacturer

ASME B16.34 / BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturer Std.

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/2" To 2" SCREWED/ SOCKET WELD

Tempreature Range

-25' C 180' For Soft Seated Valves. Contact Works For Special Requierment -195', -45', +300', (On Request)

Pressurre Class

800#

Certification

POD

Seat Material

CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Leakage Class

ISO 5208 Class VI/ FC1-70-2/ ASME B16,16.104

End Connection

ISO 7-1 For Screwed BSPT/ ASME B1.20.1 For Screwed NPT/ ASME B 16.11 for Socket Weld

Media

Air/ Water/ Oil & Gas

Body Material

A105, A106, AF 16.11

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid

Stem Material

AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL

Features & Benefits

1 – Process Steam Service.

2 – Chemical & Petrochemicals.

3 – Tyre Industries.

4 – Power Plants.

5 – Textiles.

Direct Mounting As Per ISO 5211

3 Piece

Screwed End Ball Valve 800#

Dimension Table

3 Piece

Screwed End Ball Valve 800#

Dimension Table
