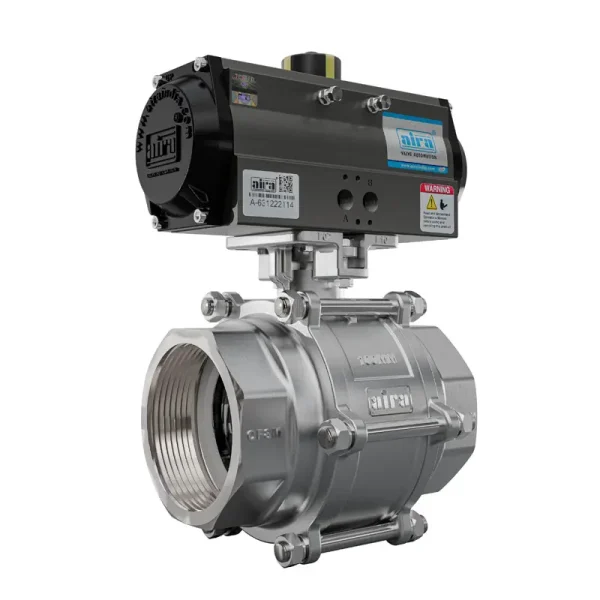

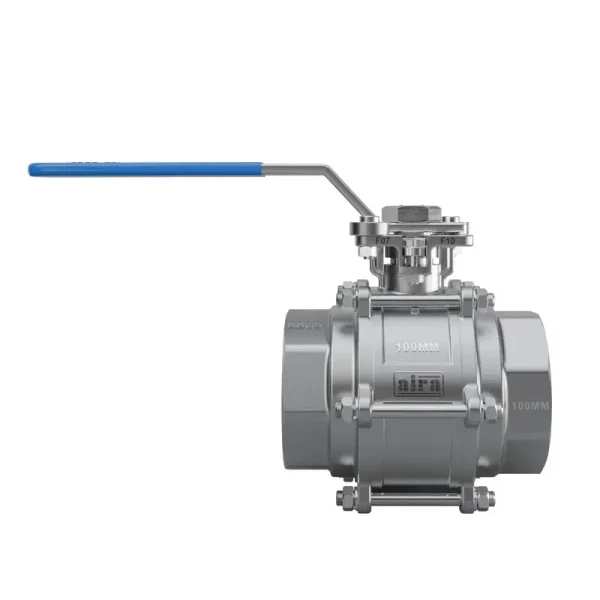

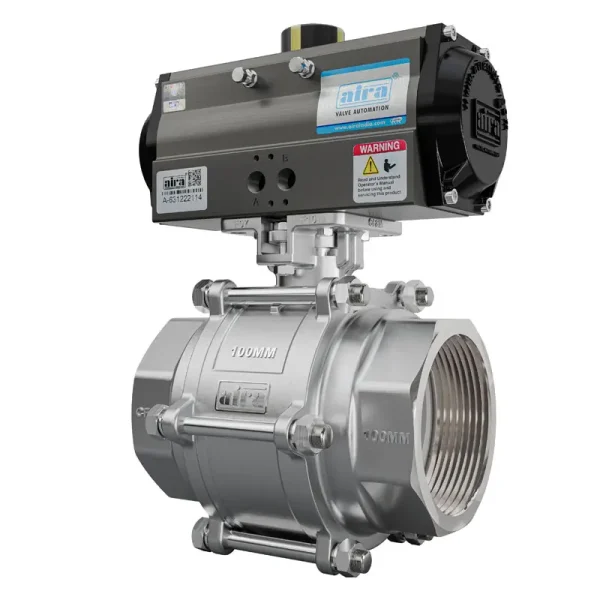

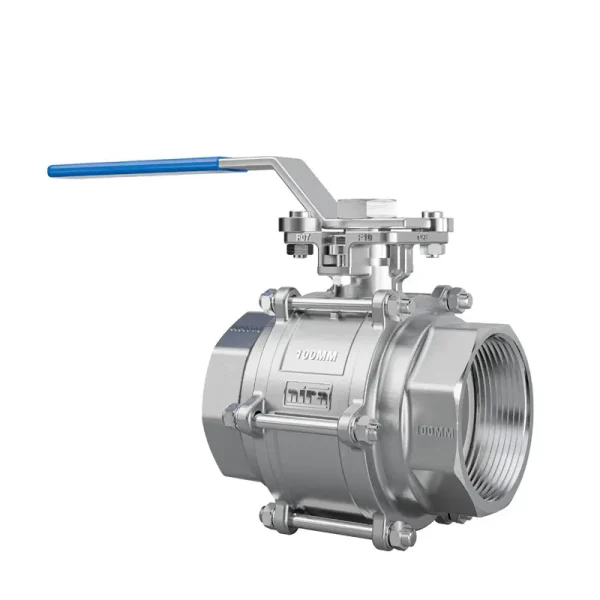

“aira” Offers Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating In Three Piece Design. Engineered For Multiple On/Off Operations In The Down Stream.
Specification & Standard
Design & Manufacturer
ASME B16.34/ BS EN ISO 17292
Valve Face To Face Dimension
ASME B16.10
Inspection & Testing
API 598/ ISO-5208/ BS EN 12266-1
Size Range
1/4" To 4"
Tempreature Range
-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment (On Request)
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Certification
Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved
Leakage Class
ISO 5208 Class VI/ ASME B16.104, ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)
End Connection
ISO 7-1 FOR BSPT/ ASME B1.20.1 FOR NPT FOR SCREWED
Pressurre Class
150#
Media
Air / Water / Oil & Gas Etc...
Body Material
CF8, CF8M, CF3M, SS 304L, WCB, DUCTILE IRON(DI), DUPLEX, HAST ALLOY, MONEL
Stem Material
AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Features & Benefits
1- High Cycle Life.
2- Antistatic Design & Fire Safe Design As Per API 607.
3- Blow Outproof Stem.
4- Locking Handle Available.
5- ISO 5211 Mounting Pad Available.
6- V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousand Of Cycle.
7 – Best For Cryogenic Application.
Fire Safe Design
Anti Static Mechanism
Direct Mounting As Per ISO 5211
3 Piece
Screwed End Ball Valve
Dimension Table
3 Piece
Screwed End Ball Valve
Dimension Table
