3 Piece Reduce Bore

Flanged End Ball Valve

Size Range
3/4" To 14" Flanged
Temperature Range
PTFE : Upto 180°C / PEEK : 250° , RPTFE / TFM -220°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

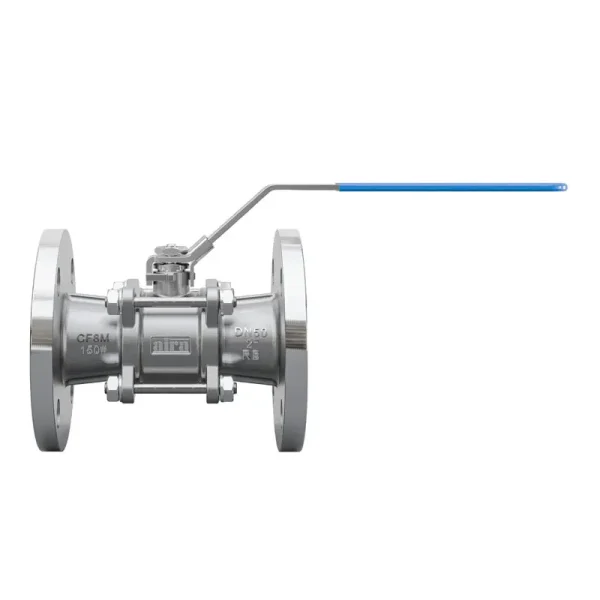

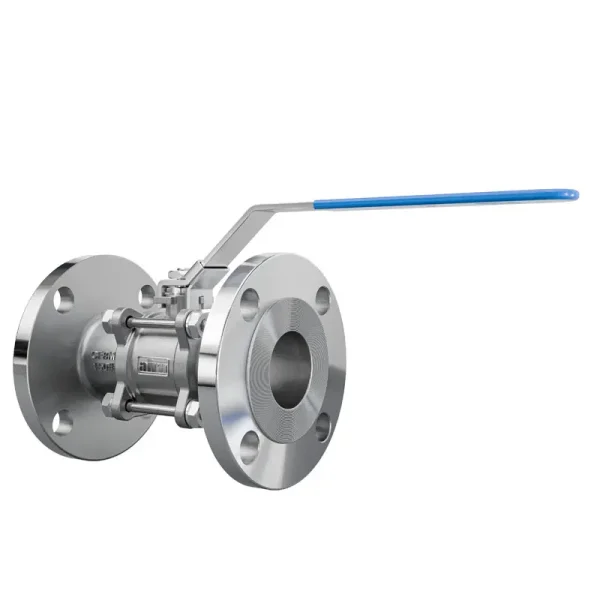

3 Piece Reduce Bore Flanged End Ball Valve

Size Range
3/4" To 14" Flanged
Temperature Range
PTFE : Upto 180°C / PEEK : 250° , RPTFE / TFM -220°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

“aira” Offers Two Piece and Three Piece Design Reduce Bore Ball Valve, Engineered For Multiple On/ Off Operations In The Down Stream.

Specification & Standard

Design & Manufacturer

ASME B16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B16.10/ BS EN ISO 17292

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Leakage Class

ISO 5208 Class VI / FCI - 70 - 2/ ASME 16.104/ BUBBLE TIGHT SHUTOFF

End Connection

ASME B16.5 CLASS 150

Size Range

3/4" To 14" Flanged

Tempreature Range

-25' C 180' For Soft Seated Valves. Contact Works For Special Requierment -195', -45', +300'(on Request)

Pressurre Class

150#, 300#

Media

Air/ Water/ Oil & Gas

Body Material

WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL.

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Stem Material

AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Flange Drilling

ASME B16.5 Class 150#/ 300 #/ Din/ Jis

Certification

Design CE Approved, SIL3 Approved, IBR Approved, POD Approved &, Fire Safe Approved

Features & Benefits

1 – High Cycle Life.

2 – Antistatic Design.

3 – Locking Handle Available.

4 – ISO 5211 Mounting Pad Available.

5 – V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousands Of Cycle.

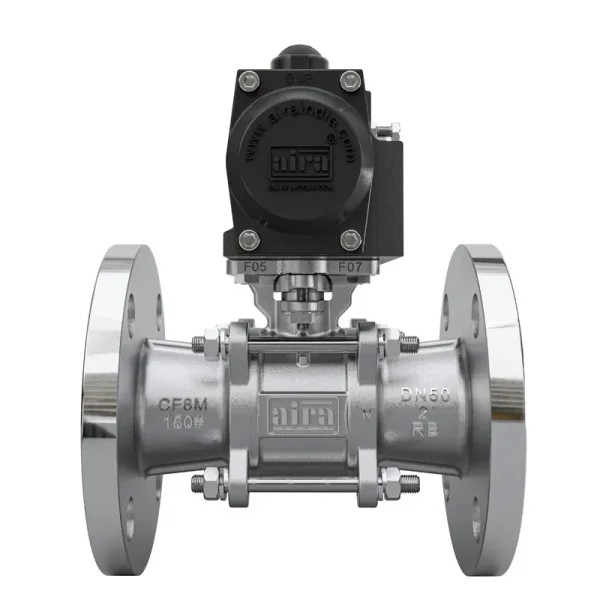

Direct Mounting As Per ISO 5211

Fire Safe Design

Anti Static Mechanism

3 Piece Reduce Bore

Flanged End Ball Valve

Dimension Table

3 Piece Reduce Bore

Flanged End Ball Valve

Dimension Table
