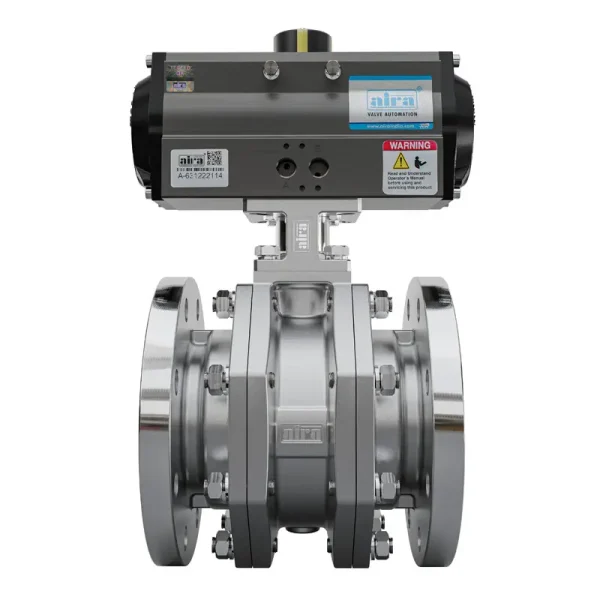

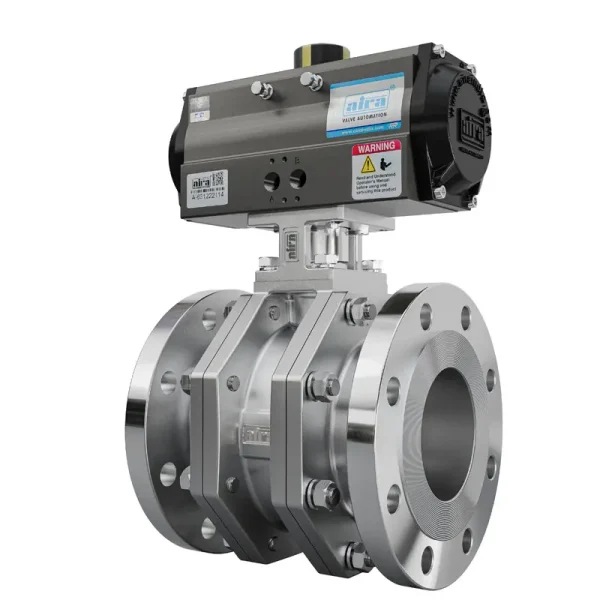

Aira Euro Automation has a huge Ball Valve collection and one of the models is a 3 Piece Fire Safe & Floating Design Ball Valve which is operated by a pneumatic rotary actuator. We use WCB, CF8, CF8M, CF3M casting materials to make the valve body and CF8, CF8M materials for the Ball. The seat connects Metal to Metal and it can sustain Pressure up to 10 BAR. This Ball valve is available in ½” to 4” Inch in size and we can also make it up to 10” inches on request.
Our model can sustain -50°C to 500°C temperature and we are ready to make up to 800°C temperature valves on a customer’s request. It is available in two end connections either screwed Or flanged end connection with 150#, and we can make 300# & 600# class on request.
Specification & Standard
Design & Manufacturer
ASME B 16.34/ BS EN ISO 17292
Valve Face To Face Dimension
ASME B 16.10
Inspection & Testing
API 598/ ISO-5208/ BS EN 12266-1
Leakage Class
ANSI FCI 70-2 Class IV - V
End Connection
ISO 7-1 For Screwed BSPT/ ASME B 1.20.1 for Screwed BPT/ ASME B 16.5 for Flanged 150#
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Certification
DESIGN CE APPROVED , SIL3 APPROVED , POD
Size Range
1/2" To 6" Flanged
Tempreature Range
Upto -50°C To 550°C ( 750°C Tempreature Available On Request )
Pressurre Class
150#
Media
Air/ Steam/ Oil & Gas
Leakage Class
Class Iv To V , Vi
Body Material
CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Stem Material
AISI 410, SS 304, SS 316, SS 304l, SS 316l, DUPLEX 2205 , DUPLEX 2507, MONEL
Seat Material
SS 304, SS 316
Features & Benefits
1- Metal Seated Ball Valves Are Inherently Fire Safe And It’s Design Is Metal
Anti-static By Nature Of The Metal To Metal Contact.
2- Harden Face Treatment On Ball And Seats Provides The Longer Life Cycle In High Temperature Environment.
3- Advanced Seat Structure And High Precision Ball Preparation Can Ensure Sealing Performance And Reduce The Operation Torque.
4- Highly Precise Machining Enables The Ball And Seattight Shut-off.
5- Suitable For Temperature Range -50°C To 500°C (-50°C To 800°C (On Request).
Direct Mounting As Per ISO 5211
Anti Static Mechanism
Fire Safe Design

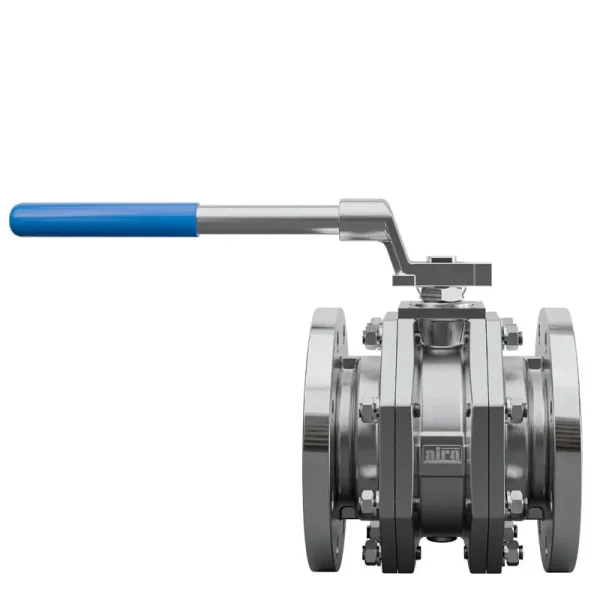

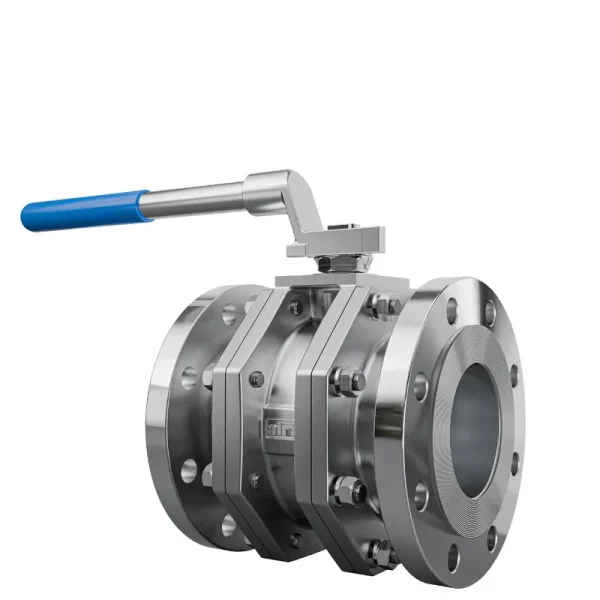

3 Piece
Metal To Metal Flanged End Ball Valve
Dimension Table
3 Piece
Metal To Metal Flanged End Ball Valve
Dimension Table
