3 Piece

Extended Shaft Flanged End Ball Valve

Size Range
1/2" To 4" Flanged
Temperature Range
PTFE : Upto 180°C/ PEEK : 250° RPTFE/ TFM -220°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

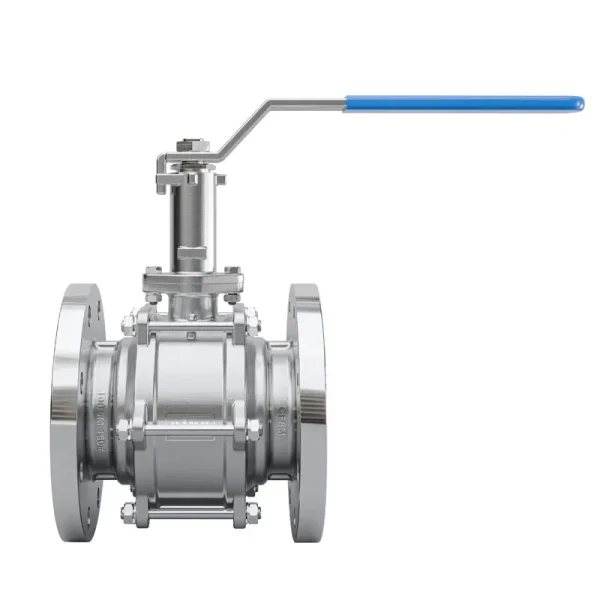

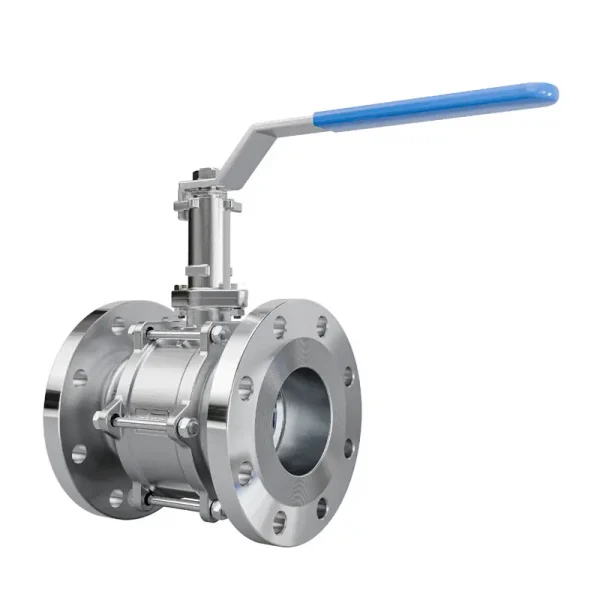

3 Piece Extended Shaft Flanged End Ball Valve

Size Range
1/2" To 4" Flanged
Temperature Range
PTFE : Upto 180°C/ PEEK : 250° RPTFE/ TFM -220°C
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

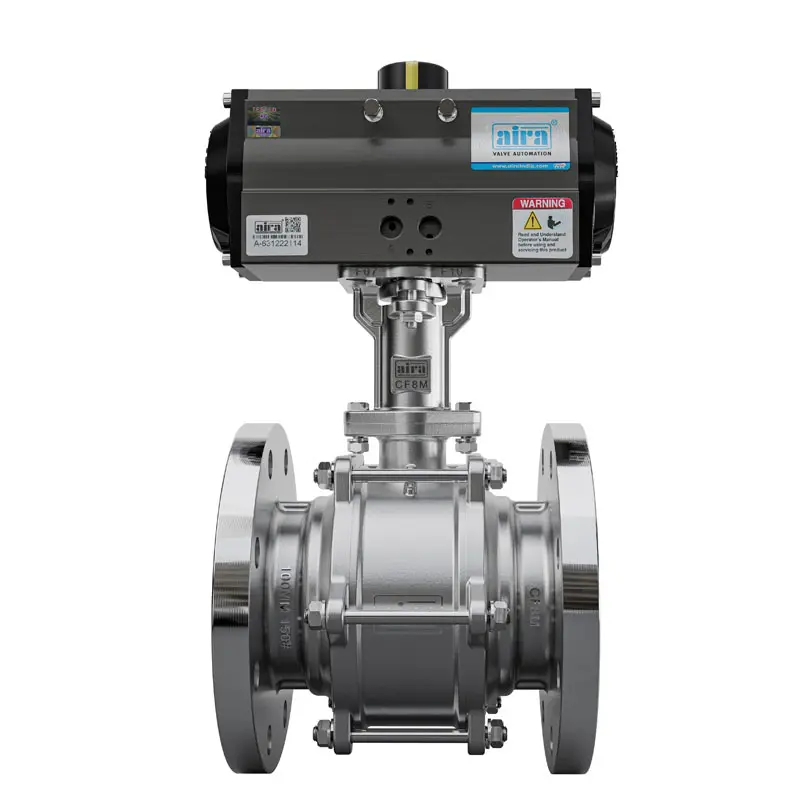

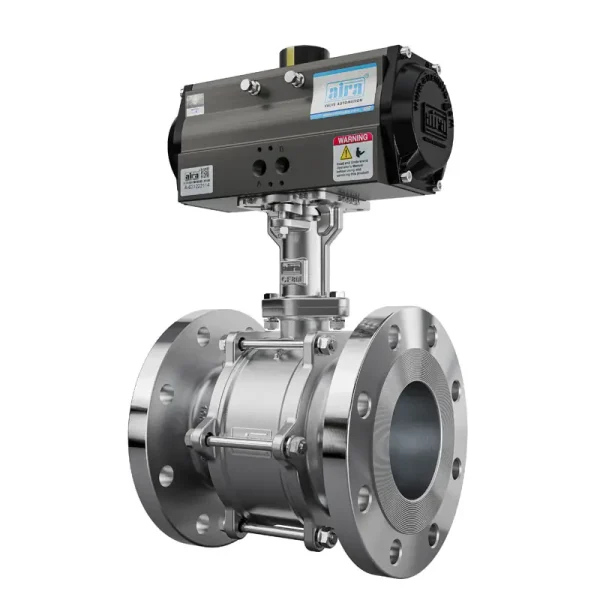

Aira Euro Automation manufactured Pneumatic Actuator Operated 3 Piece Design CE Approved 100MM Extended Shaft 2 Way Ball Valve in Screwed & Flanged 150# with Hollow Ball type PTFE Seals.

Specification & Standard

Design & Manufacturer

ASME B16.34/ BS EN ISO 17292

Valve Face To Face Dimension

ASME B16.10

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/2" To 4" Flanged

Tempreature Range

-50' C To 300' For Soft Seated Valves. Contact Works For Special Requierment

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Solid

Flange Drilling

ASME B16.5 Class 150#/ 300 #/ Din/ Jis

Leakage Class

ISO 5208 Class VI/ FCI - 70 - 2/ ASME 16.104/ BUBBLE TIGHT SHUTOFF

End Connection

ISO 7-1 FOR BSPT/ BSP/ ASME B1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD

Pressurre Class

150#, 300#

Media

Air/ Water/ Oil & Gas

Body Material

CF8, CF8M, CF3M,. SS 304L, WCB, DUPLEX, HAST ALLOY, MONEL

Stem Material

AISI 410, SS 304, SS 316, SS 304l, SS 316L, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Certification

Design CE Approved & POD Approved

Features & Benefits

1 – Three Types Of Extension Bonnet Lengths Available To Optimize The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid.

2 – Chevron Seal Design Minimizes Leakage After Thousand Of Cycles.

3 – Low Operating Torque For Smooth Operations.

4 – Fire Safe Design Available For Flammable Applications.

5 – Fugitive Emissions Control For Flammable And Non-flammable Applications.

6 – Best For Cryogenic Application.

Fire Safe Design

Direct Mounting As Per ISO 5211

3 Piece

Extended Shaft Flanged End Ball Valve

Dimension Table

3 Piece

Extended Shaft Flanged End Ball Valve

Dimension Table
