3 Piece

Butt Weld Ball Valve

Size Range
1/2" to 4"
Temperature Range
PTFE : Upto 180°C/ PEEK : 250°, RPTFE : Upto 220°C/ AIRA250
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

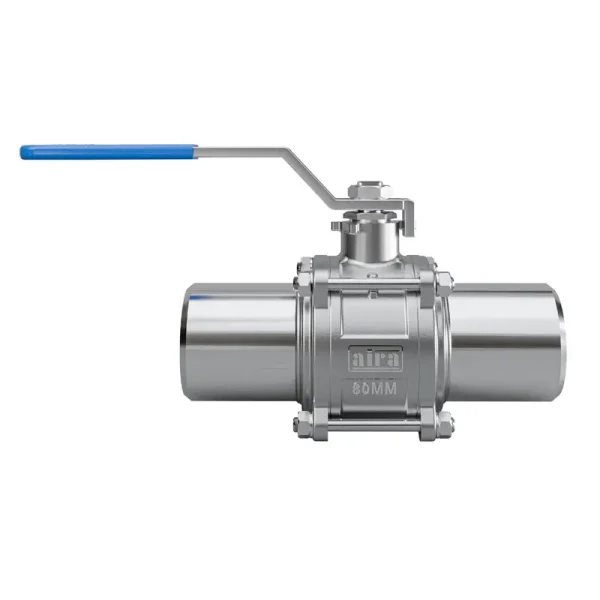

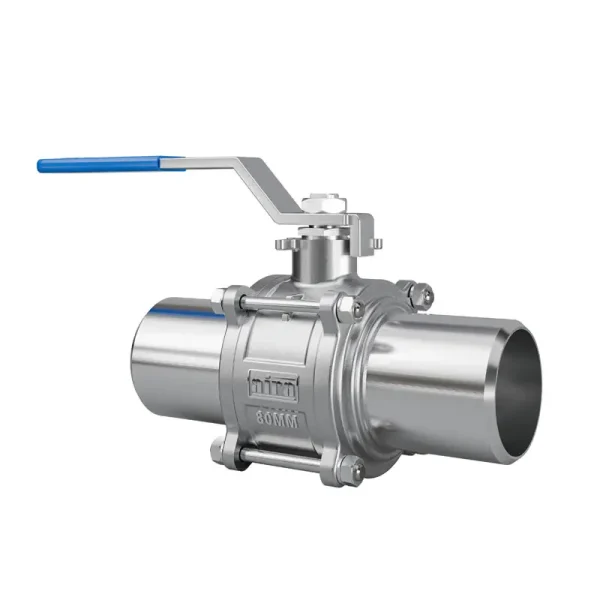

3 Piece Butt Weld Ball Valve

Size Range
1/2" to 4"
Temperature Range
PTFE : Upto 180°C/ PEEK : 250°, RPTFE : Upto 220°C/ AIRA250
Working Pressure
Up to 10 Kg/Cm²
Inquiry Now

Approvals

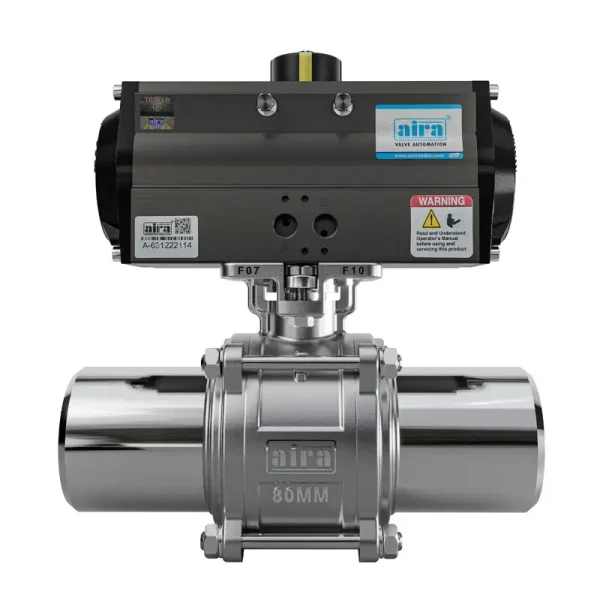

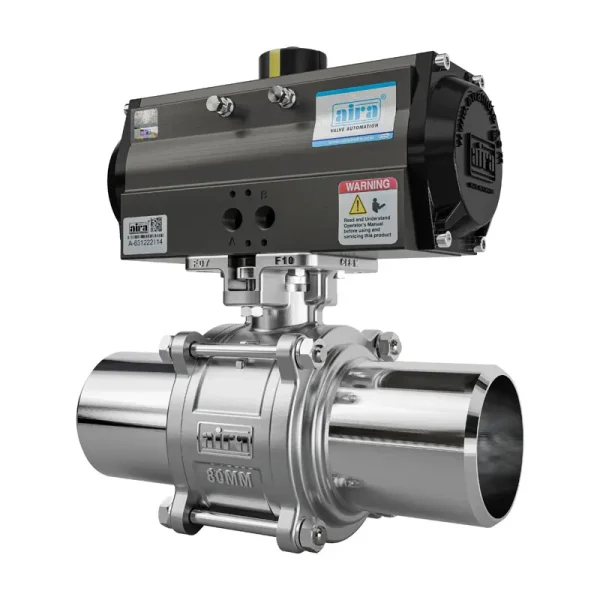

Aira Euro Automation is the leading valve manufacturer and Supplier in India. We have in-house production, as a result, we can maintain quality in our products. In making Pneumatic Actuator operated But Weld Ball valves, we use standard CE approved Pneumatic Actuator and High graded materials.

We use WCB, CF8, and CF8M materials to manufacture outside valve bodies and CF8 and CF8M for Ball. These valves are pneumatic actuators operated useful to control Air, Water, Oil & Gas, These valves can sustain pressure up to 10Kg/Cm² and temperature up to 180°C having Class VI leakage. It has weld end connections to prevent leakages from pipes. Click here to check the full range of ball valves.

Specification & Standard

Design & Manufacturer

ASME B16.34/ BS EN ISO 17292

Valve Face To Face Dimension

As Per Manufacturing

Inspection & Testing

API 598/ ISO-5208/ BS EN 12266-1

Size Range

1/2" to 4"

Tempreature Range

-25' C 180' For Soft Seated Valves. Contact Works For Special Requierment -195', -45', +300', (on Request)

Pressurre Class

150#

Stem Material

AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL

Seat Material

PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK

Leakage Class

ISO 5208 Class VI/ ASME B16.104, ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF)

End Connection

ASME B16.25 BUTT-WELD ENDS

Media

Air/ Water/ Oil & Gas

Body Material

WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL.

Ball Material

CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M

Ball Type

Hollow & Solid

Certification

Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved

Features & Benefits

1- High Cycle Life.

2- Antistatic Design & Fire Safe Design As Per API 607.

3- Blow Outproof Stem.

4- Locking Handle Available.

5- ISO 5211 Mounting Pad Available.

6- V-type Cheuron Gland Packing, Which Leads To Zero Leak After Thousand Of Cycle.

Direct Mounting As Per ISO 5211

Anti Static Mechanism

Fire Safe Design

3 Piece

Butt Weld Ball Valve

Dimension Table

3 Piece

Butt Weld Ball Valve

Dimension Table
